SINOTRUK HOWO Oil Semi Trailer Truck , Diesel Tank Truck with Trailer

SINOTRUK HOWO Oil Semi Trailer Truck , Diesel Tank Truck with Trailer

  • SINOTRUK HOWO Oil Semi Trailer Truck , Diesel Tank Truck with Trailer
  • SINOTRUK HOWO Oil Semi Trailer Truck , Diesel Tank Truck with Trailer
  • SINOTRUK HOWO Oil Semi Trailer Truck , Diesel Tank Truck with Trailer
  • SINOTRUK HOWO Oil Semi Trailer Truck , Diesel Tank Truck with Trailer
SINOTRUK HOWO Oil Semi Trailer Truck , Diesel Tank Truck with Trailer
Product Details:
Place of Origin: China
Brand Name: SINOTRUK
Certification: ISO/3C/BV/IFA/SGS
Model Number: 3 Axles 50000Liters Oil carrying
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship, or by 40GP, 40HQ,40FR and so on
Delivery Time: 20 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4,000units per month
Contact Now
Detailed Product Description
Product Name: Semi Trailer Oil Tank Truck Model: 3 Axles 50000Liters
Fifth Wheel: #50, #90 Loading Capacity: 40-80tons
Tank Capacity: 50-60CBM Thickness Of Tank Body: 4mm 5mm 6mm Optional
Axles: 3X16 Tons Material: Carbon Steel Or Mn Steel
Highlight:

Semi Trailer Dump Truck

,

hydraulic flatbed trailer

Semi Trailer Oil Tank Truck 3 Axles 60Tons 45-60CBM SINOTRUK HOWO



Description:



Semi Trailer Oil Tank Truck 3 Axles 60Tons 45-60CBM SINOTRUK HOWO

Semi Trailer Tank Truck is divided into two parts, oil tank part and a support body

skeleton or driving part is traction head connecting Trailer tanker, compared with

ordinary single type tank truck, semi-trailer tank truck can effectively improve the

transportation efficiency. In the same tonnage and reduce  the transportation cost,

saving fuel. The rear of Semi trailer tank is approximately the same,which have 2 Axles

and 3 Axles, according to the need to choose  the traction head.



Tank body using 4mm or 6mm quality carbon steel according to the national standard, the

shape of oval or square round tank, can be installed 1-4 kinds of oil. Also can produce

heating insulation series tank.



The tank design using multi channel swash plate. Using high pressure gas leakage

detection, the tank  has characteristics of high strength, stable center of gravity, high

vehicle safety and stable and so on.



According to customer's special requirements for the use of centrifugal pumps, gear

pumps, stainless  steel pumps, with large flow, fast suction speed and so on.

Tanker measurement can choose single count, flow meter double counting, assembly tax

controlled  computer refueling machine, installed 10 to 15 meters automatic telescopic

return reel, equipped with a  gas gun. Edible oil can be used edible oil computer meter

to measure.



Specification:



Semi Trailer Oil Tank Truck 3 Axles 60Tons 45-60CBM SINOTRUK HOWO

Model 3 Axles 50000Liters
Axle

FUWA brand, 13ton, 3 Sets

Main beam

Beam height: 500mm

Upper plate: 10mm

Double Middle plate: 6 mm

Down plate: 12mm

Tank Body Thickness

4mm, 5mm, 6mm optional

Material

Carbon steel or Mn steel

Gross vehicle weight

65000kgs

King pin

#90

Support leg

JOST Standard 28T

Suspension

Normal suspension

Thickness leaf spring

10/10/10

Tire/Rim

1200R20, 13pcs, 8.5, 12 pcs

Brake Chamber

Standard 6 pcs

Spare wheel carrier

2 pcs

Tool box

1 pcs

Electrical System

Chinese standard 24C lighting system

Side Maker Lamp

LED lamp

Painting

Polyurethane Paint

Overall dimension

14100×2500×3780(mm)

Color White, red, green, golden and so on.




Applications:



It’s suitable for storage and carrying all kinds of Oils .



Competitive Advantage:



1) it has higher safety and running efficiency.

2) excellent appearance of cabin, safety, reliable

3) low fuel consumption

4) the key parts adopt the world's top technology products

5) based on strong technical support and top level technology make the trucks with high quality and more

reliable

6) competitive price, cost-effective

7) quick and efficient spare parts supply bring you more convenient

8) fast delivery time, we can arrange production according to your needs exactly and Quickly

9) professional import and export dealing procedure, make customs clearance more high efficiency

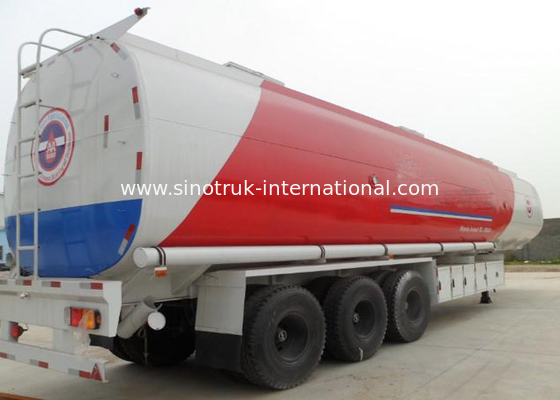

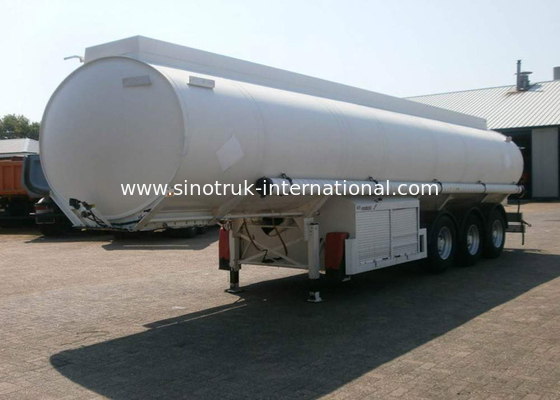

SINOTRUK HOWO Oil Semi Trailer Truck , Diesel Tank Truck with Trailer 0
