Construction Business Semi Trailer Truck , 3Axles Tipping Trailer Truck High Rigidity

Construction Business Semi Trailer Truck , 3Axles Tipping Trailer Truck High Rigidity

  • Construction Business Semi Trailer Truck , 3Axles Tipping Trailer Truck High Rigidity
  • Construction Business Semi Trailer Truck , 3Axles Tipping Trailer Truck High Rigidity
  • Construction Business Semi Trailer Truck , 3Axles Tipping Trailer Truck High Rigidity
  • Construction Business Semi Trailer Truck , 3Axles Tipping Trailer Truck High Rigidity
Construction Business Semi Trailer Truck , 3Axles Tipping Trailer Truck High Rigidity
Product Details:
Place of Origin: China
Brand Name: SINOTRUK
Certification: ISO/3C/BV/IFA/SGS
Model Number: 3 Axles 60-80Tons
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship, or by 40GP, 40HQ,40FR and so on
Delivery Time: 20 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4,000units per month
Contact Now
Detailed Product Description
Product Name: Semi Trailer Dump Truck Model: 3 Axles 60-80Tons
Fifth Wheel: #50, #90 Loading Capacity: 60-80tons
Tank Capacity: 25-45CBM Cargo Body: 10500*2300*1500mm
Axles: 3X16 Tons Material: Carbon Steel Or Mn Steel
Highlight:

Semi Trailer Dump Truck

,

hydraulic flatbed trailer

Semi Trailer Dump Truck 3 Axles 60-80Tons 25-45CBM for Mining and Construction



Description:

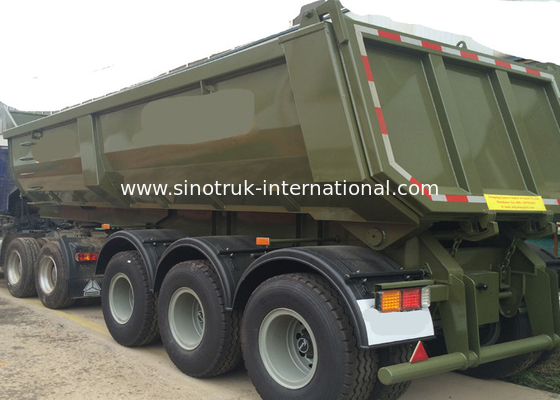

Semi Trailer Dump Truck 3 Axles 60-80Tons 25-45CBM for Mining and Construction

Our company is the production of a new Semi Trailer Dump Truck, the low center of gravity

structure design, to prevent lifting rollover occurs. Lower center of gravity to 1.3

meters, 1.4 meters, when loading do not shake and do not susceptible to rollover, reduce

the damage of tires and springs. The truck frame and the carriage has obtained national

patent frame with 16 beam Manganese plate made greatly increases the bearing strength.

Wide rear and narrow front design is more conducive to dump, is not easy to be blocked,

goods uniform unloading, never lead to rollover.

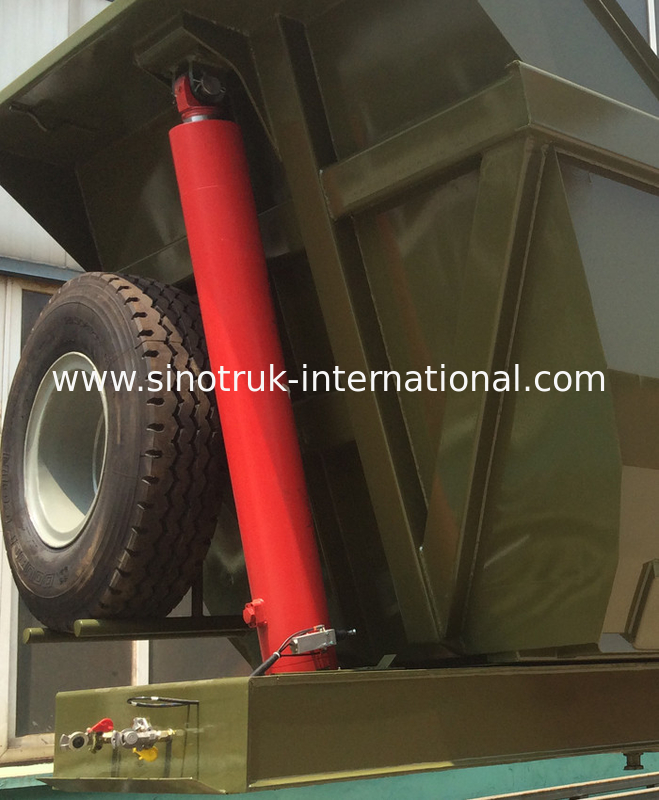

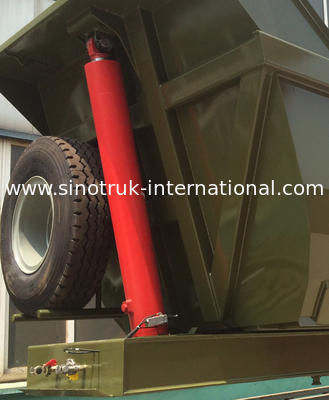

The hydraulic cylinder of the Semi Trailer Dump Truck is made from the special

manufacturers, its material strength is much higher than the ordinary cylinder, improve

the use of the product cycle.



The rear panel of the vehicle is locked with a mechanical device, the lock hook and the

back plate are automatically opened at the time of unloading, and the blockage is avoided

when unloading, especially when the stone is unloaded, and the loss of the vehicle is

reduced.



The Semi Trailer Dump Truck is pulled goods volume can reach 45 CBM (non-standard 65CBM),

the weight can reach 80t - 100t, greatly improving the work efficiency is 8x4 self

unloading alternative products (Dump Truck up to pull 25 CBM).



Specification:



Semi Trailer Dump Truck 3 Axles 60-80Tons 25-45CBM for Mining and Construction

Model 3 Axles 60Tons
Axle

FUWA brand, 16ton, 3 Sets

Main beam

Beam height: 500mm

Upper plate: 10mm

Double Middle plate: 6 mm

Down plate: 12mm

Cargo Body

10500*2300*1500mm, floor:10mm, side:6mm

Material

Carbon steel or Mn steel

Gross vehicle weight

75000kgs

King pin

#90

Support leg

JOST Standard 28T

Suspension

Normal suspension

Thickness leaf spring

10/10/10

Tire/Rim

1200R20, 13pcs, 8.5, 12 pcs

Brake Chamber

Standard 6 pcs

Spare wheel carrier

2 pcs

Tool box

1 pcs

Electrical System

Chinese standard 24C lighting system

Side Maker Lamp

LED lamp

Painting

Polyurethane Paint

Overall dimension

12000×2500×3880(mm)

Color White, red, green, golden and so on.




Applications:



It’s suitable for Mining industry, Construction business, docks, for transporting soil, sand, stones and so  on.



Competitive Advantage:



1) Optimized cargo body structure,light weight,high rigidity,large loading capacity

2) Using the high strength steel,it has long service life

3) Optimized the whole truck structure has lower center of gravity,with higher security when lifting the cargo

body.

4) the key parts adopt the world's top technology products

5) based on strong technical support and top level technology make the trucks with high quality and more

reliable

6) competitive price, cost-effective

7) quick and efficient spare parts supply bring you more convenient

8) fast delivery time, we can arrange production according to your needs exactly and Quickly

9) professional import and export dealing procedure, make customs clearance more high efficiency



Construction Business Semi Trailer Truck , 3Axles Tipping Trailer Truck High Rigidity 0

Construction Business Semi Trailer Truck , 3Axles Tipping Trailer Truck High Rigidity 1
