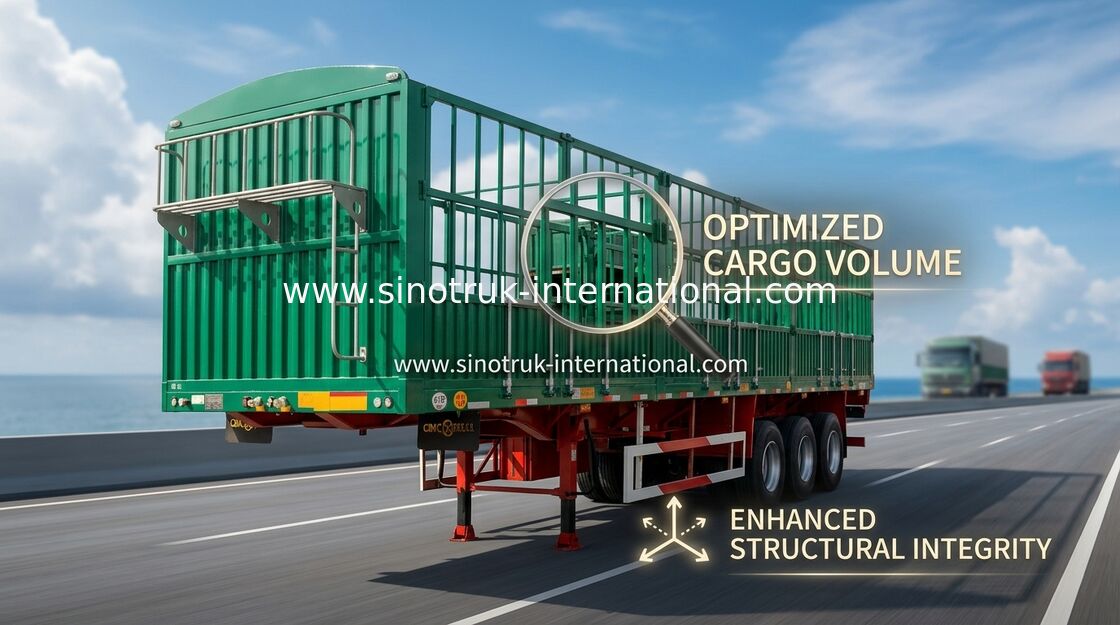

Light Self - Weight Cargo Semi Trailer Truck Used In Logistic Industry

    • Light Self - Weight Cargo Semi Trailer Truck Used In Logistic Industry
    • Light Self - Weight Cargo Semi Trailer Truck Used In Logistic Industry
    • Light Self - Weight Cargo Semi Trailer Truck Used In Logistic Industry
    • Light Self - Weight Cargo Semi Trailer Truck Used In Logistic Industry
  • Light Self - Weight Cargo Semi Trailer Truck Used In Logistic Industry

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: 3 Axles 30-60Tons

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: Negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship, or by 40GP, 40HQ,40FR and so on
    Delivery Time: 20 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 4,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Dropside Semi Trailer Truck Model: 3 Axles 30-60Tons
    Fifth Wheel: #50, #90 Loading Capacity: 30-60tons
    Dimension Of Flat: 12600*3000mm Axles: 3X16 Tons
    Material: Carbon Steel Or Mn Steel Landing Gear: 28T JOST

    Description:

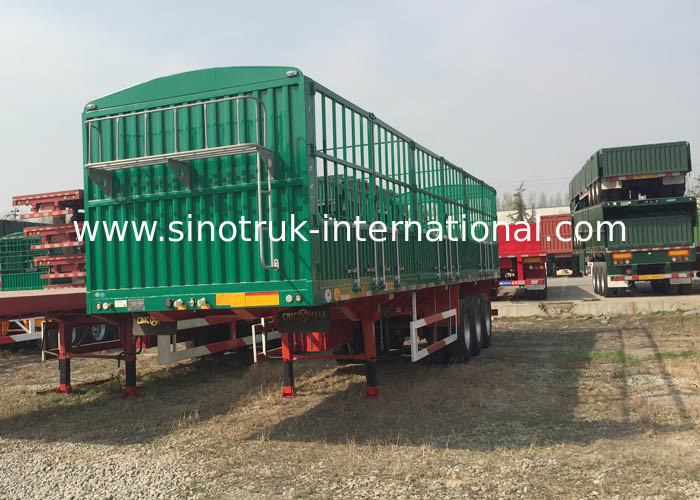

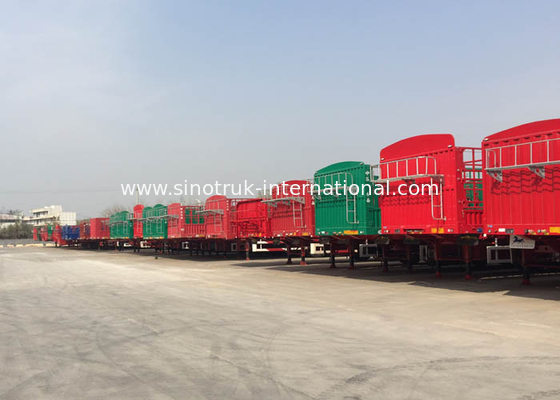

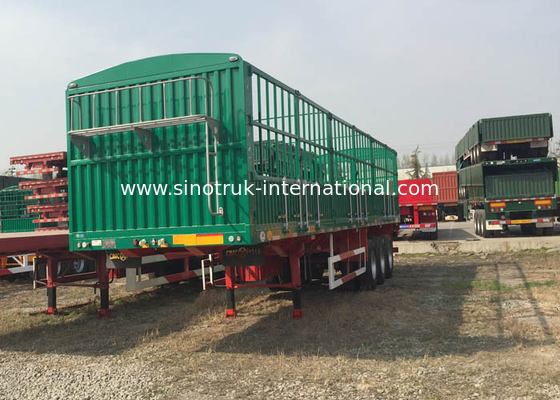

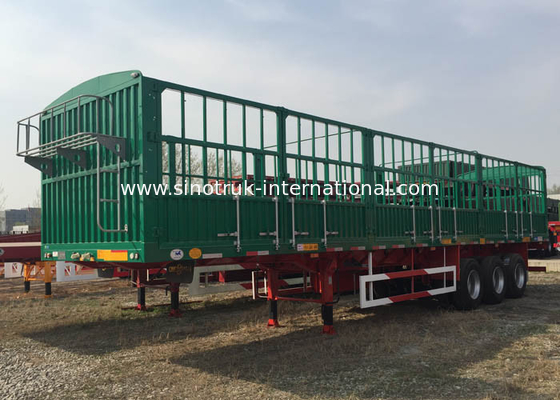

    Dropside Cargo Semi Trailer Truck 3 Axles 30-60Tons 13-16m SINOTRUK INTERNATIONAL

    You can choose 2 or 3 Axles, which can loading 20-70 Tons.

    This kind of semi trailer special used in logistic industry, with high loading capacity,

    light self-weight, it's a high cost effective products.



    It's our competitive products, which exported to so many countries, especially Asia and Africa countries.

    Such as Philippines, Vietnam, Congo, Ethiopia and so on.

    Our company semi trailer truck series,is applied to the transportation of all kinds of

    mechanical equipment, big size articles,road construction equipment ,big size tank body

    power station equipment and all kinds of steels .widely using ,high efficiency .



    Whole vehicle adopts advanced computer aided design for optimization design ,flexible and

    various ,to design carrying flat according to the requirements of customers.to meet

    various of special goods transportation needs.





    Specification:



    Dropside Cargo Semi Trailer Truck 3 Axles 30-60Tons 13-16m SINOTRUK INTERNATIONAL

    Model 3 Axles 60Tons
    Axle

    FUWA brand, 16ton, 3 Sets

    Main beam

    Beam height: 500mm

    Upper plate: 10mm

    Double Middle plate: 6 mm

    Down plate: 12mm

    Dimension of cargo body

    13000*3000*600+1500mm

    Material

    Carbon steel or Mn steel

    Gross vehicle weight

    70000kgs

    King pin

    #90

    Support leg

    JOST Standard 28T

    Suspension

    Normal suspension

    Thickness leaf spring

    10/10/10

    Tire/Rim

    1200R20, 13pcs, 8.5, 12 pcs

    Brake Chamber

    Standard 6 pcs

    Spare wheel carrier

    2 pcs

    Tool box

    1 pcs

    Electrical System

    Chinese standard 24C lighting system

    Side Maker Lamp

    LED lamp

    Painting

    Polyurethane Paint

    Overall dimension

    16000×2500×3880(mm)

    Color White, red, green, golden and so on.




    Applications:



    Dropside Cargo semi trailer for light or big size goods. suitable for long and short distance logistics.



    Competitive Advantage:



    1)competitive price, cost-effective

    2)professional import and export dealing procedure, make customs clearance more high efficiency

    3)based on strong technical support and top level technology make the trucks with high quality and more reliable

    4)The main plane of the frame is low, which ensures the smooth transportation, and is suitable for carrying all kinds of engineering machinery, large equipment and steel.

    5))Using three axis balance, double axis balance or rigid suspension, the mass balance block is arranged between the front and rear leaf springs.

    6))the key parts adopt the world's top technology products

    7)quick and efficient spare parts supply bring you more convenient

    8)fast delivery time, we can arrange production according to your needs exactly and Quickly





    Light Self - Weight Cargo Semi Trailer Truck Used In Logistic IndustryLight Self - Weight Cargo Semi Trailer Truck Used In Logistic Industry
