Home ProductsSemi Trailer Truck

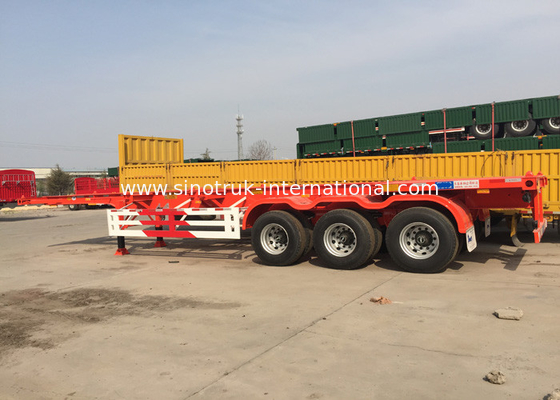

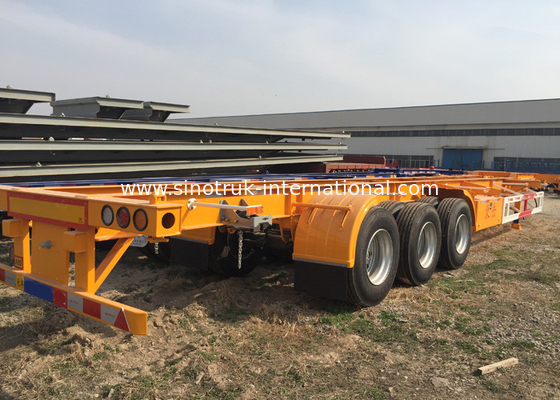

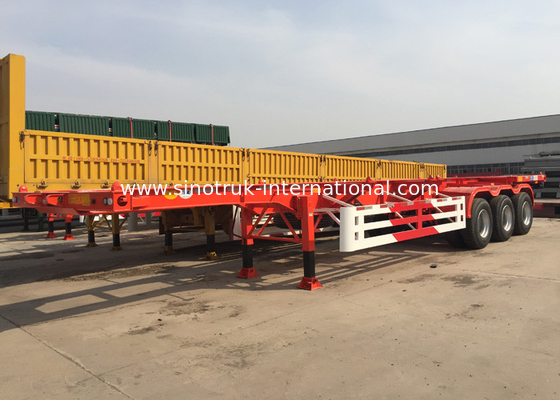

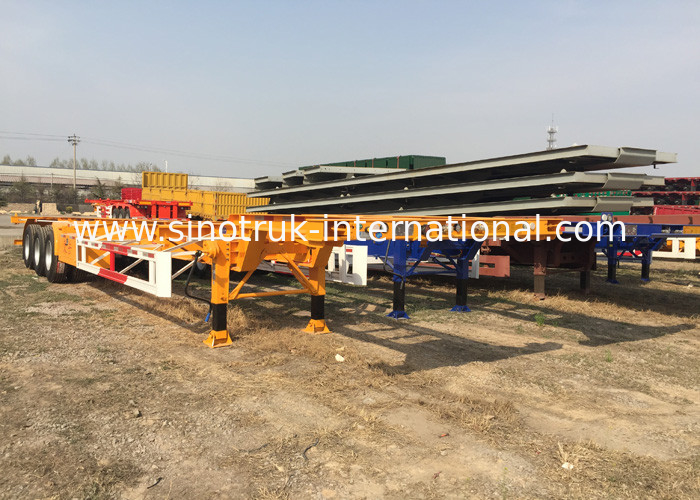

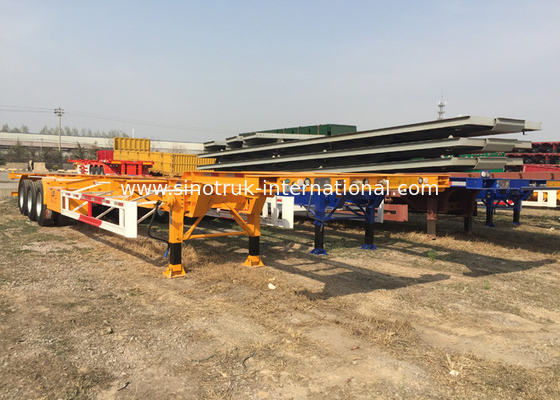

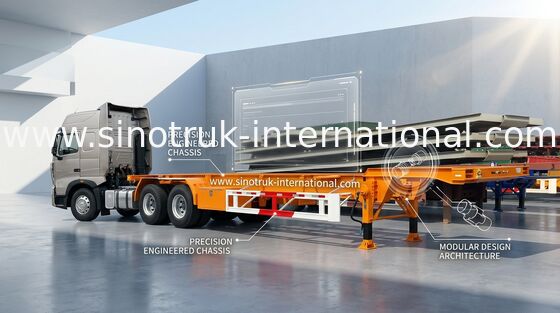

Carbon Mn Steel Flatbed Semi Truck Semi Trailer Truck 12600*3000mm

Carbon Mn Steel Flatbed Semi Truck Semi Trailer Truck 12600*3000mm

  • Carbon Mn Steel Flatbed Semi Truck Semi Trailer Truck 12600*3000mm
  • Carbon Mn Steel Flatbed Semi Truck Semi Trailer Truck 12600*3000mm
  • Carbon Mn Steel Flatbed Semi Truck Semi Trailer Truck 12600*3000mm
  • Carbon Mn Steel Flatbed Semi Truck Semi Trailer Truck 12600*3000mm
Carbon Mn Steel Flatbed Semi Truck Semi Trailer Truck 12600*3000mm
Product Details:
Place of Origin: China
Brand Name: SINOTRUK
Certification: ISO/3C/BV/IFA/SGS
Model Number: 3 Axles 30-60Tons
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship, or by 40GP, 40HQ,40FR and so on
Delivery Time: 20 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4,000units per month
Contact Now
Detailed Product Description
Product Name: Skeleton Container Transport Semi Trailer Model: 3 Axles 30-60Tons
Fifth Wheel: #50, #90 Loading Capacity: 30-60tons
Dimension Of Flat: 12600*3000mm Axles: 3X16 Tons
Material: Carbon Steel Or Mn Steel Landing Gear: 28T JOST
High Light:

semi flatbed trailers

,

hydraulic flatbed trailer

Description:



SIONTRUK Skeleton Container transport Semi Trailer Truck 3 Axles 50Tons 13m



Our company semi trailer truck series,is applied to the transportation of all kinds of

mechanical equipment, big size articles,road construction equipment ,big size tank body

power station equipment and all kinds of steels .



It's have more lighter self weight than flat bed semi trailer, but also do not reduce loading capacity.

And it can save more energy.



This kind of semi trailer is special used in transport 20 feets or 40 feets Container, from loading

port or unloading port to factory or ware house.



widely using ,high efficiency .whole vehicle adopts advanced computer aided design for

optimization design ,flexible and various ,to design carrying flat according to the requirements of  customers.to meet various of special goods transportation needs.



Specification:



SIONTRUK Skeleton Container transport Semi Trailer Truck 3 Axles 50Tons 13m

Model 3 Axles 60Tons
Axle

FUWA brand, 16ton, 3 Sets

Main beam

Beam height: 500mm

Upper plate: 10mm

Double Middle plate: 6 mm

Down plate: 12mm

Dimension of Flat

13000*3000*6mm

Material

Carbon steel or Mn steel

Gross vehicle weight

70000kgs

King pin

#90

Support leg

JOST Standard 28T

Suspension

Normal suspension

Thickness leaf spring

10/10/10

Tire/Rim

1200R20, 13pcs, 8.5, 12 pcs

Brake Chamber

Standard 6 pcs

Spare wheel carrier

2 pcs

Tool box

1 pcs

Electrical System

Chinese standard 24C lighting system

Side Maker Lamp

LED lamp

Painting

Polyurethane Paint

Overall dimension

16000×2500×3880(mm)

Color White, red, green, golden and so on.




Applications:



Skeleton Container transport Semi Trailer for a variety of Container and other goods.



Competitive Advantage:



1)quick and efficient spare parts supply bring you more convenient

2)professional import and export dealing procedure, make customs clearance more high efficiency

3)competitive price, cost-effective

4)fast delivery time, we can arrange production according to your needs exactly and Quickly

5)The main plane of the frame is low, which ensures the smooth transportation, and is suitable for carrying all kinds of engineering machinery, large equipment and steel.

6)Using three axis balance, double axis balance or rigid suspension, the mass balance block is arranged between the front and rear leaf springs.

7)the key parts adopt the world's top technology products

8)based on strong technical support and top level technology make the trucks with high quality and more reliable

9)Our company produces flat semitrailer divided into flat, concave beam and tire exposed structure,  beam adopts flat type or goose neck. The frame is ladder type, the beam cross-section is

 I-shaped, has high anti breaking strength and bearing capacity.

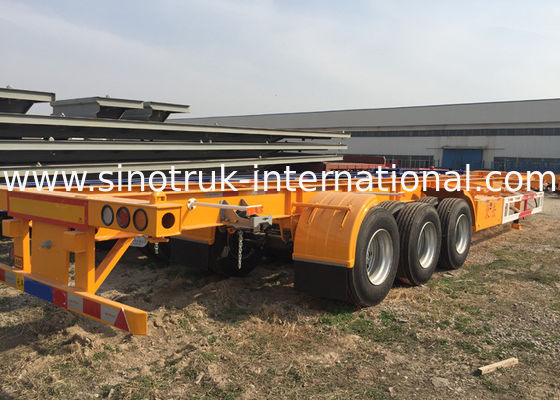

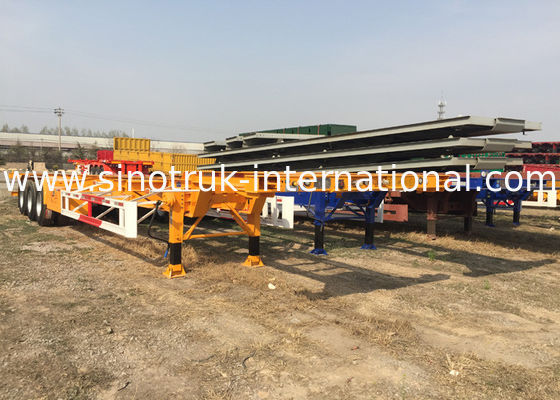

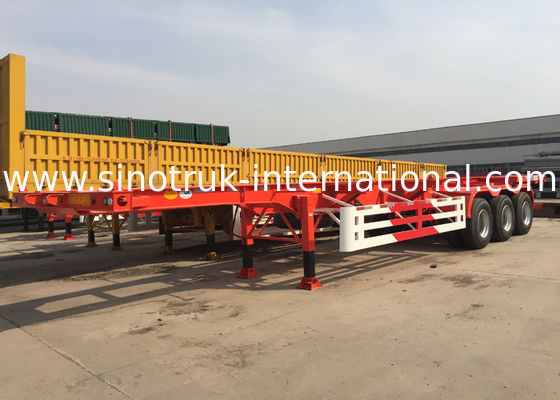

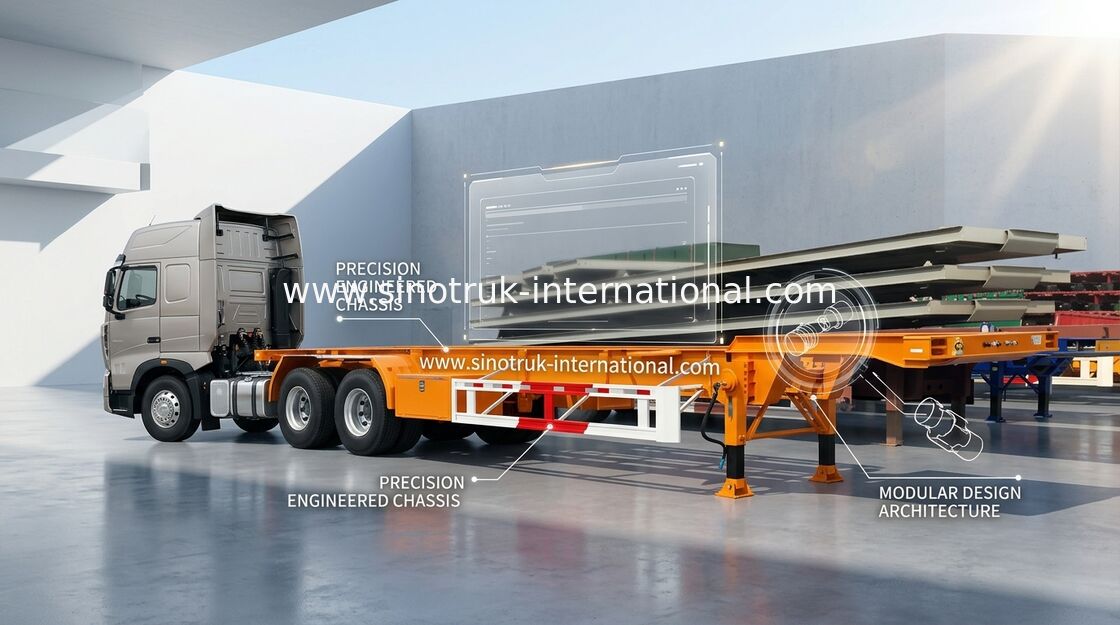

Carbon Mn Steel Flatbed Semi Truck Semi Trailer Truck 12600*3000mm 0Carbon Mn Steel Flatbed Semi Truck Semi Trailer Truck 12600*3000mm 1
