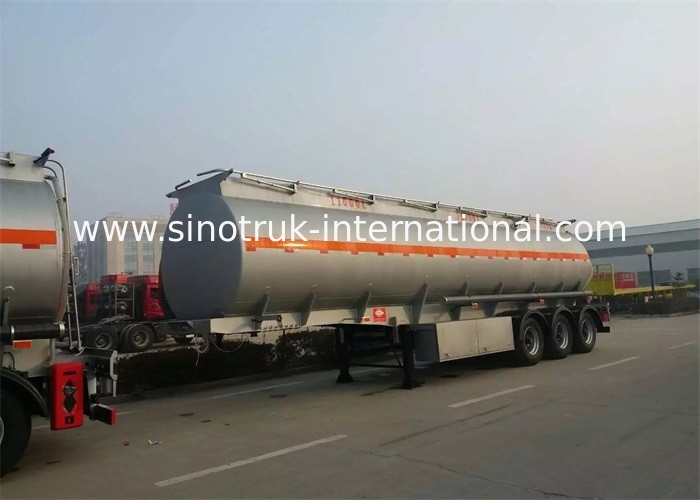

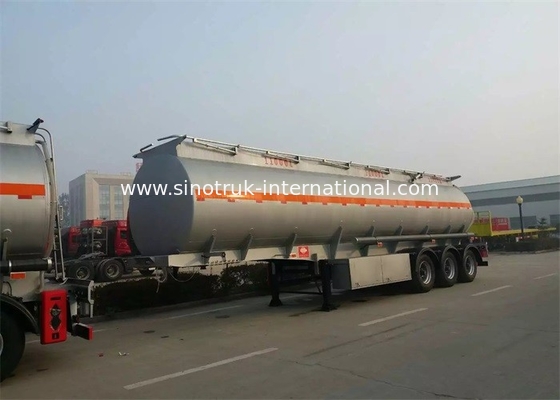

3 Axles 50000 Liters Semi Trailer Truck CIMC Fuel Tanker For Carrying / Storing Oil

    • 3 Axles 50000 Liters Semi Trailer Truck CIMC Fuel Tanker For Carrying / Storing Oil
    • 3 Axles 50000 Liters Semi Trailer Truck CIMC Fuel Tanker For Carrying / Storing Oil
    • 3 Axles 50000 Liters Semi Trailer Truck CIMC Fuel Tanker For Carrying / Storing Oil
    • 3 Axles 50000 Liters Semi Trailer Truck CIMC Fuel Tanker For Carrying / Storing Oil
  • 3 Axles 50000 Liters Semi Trailer Truck CIMC Fuel Tanker For Carrying / Storing Oil

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: 3 Axles 50000 Liters Oil carrying Trailer

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: Negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship, or by 40GP, 40HQ,40FR and so on
    Delivery Time: 20 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 4,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Semi Trailer Oil Tank Truck Model: 3 Axles 50000Liters
    Fifth Wheel: #50, #90 Loading Capacity: 50-80tons
    Tank Capacity: 45-60CBM Thickness Of Tank Body: 4mm 5mm 6mm Optional
    Axles: 3X16 Tons Material: Carbon Steel Or Mn Steel
    Compartment: 6 ABS: Optional
    Suspension: Mechanical Suspension American Type Local Brand

    CIMC Fuel Tanker Semi Trailer 50 - 80 Tons 40-60CBM for carrying or storing oil



    Description:



    CIMC Fuel Tanker Semi Trailer 50 - 80 Tons 40-60CBM for carrying or storing oil

    The fuel tanker semi trailer's spark plug fault has the following two situations: spark ablation, spark plug top scar, damage or melting, ablation showed that the spark plug is damaged, should be replaced. The spark plug sediments, and the top electrode spark plug insulator sometimes sticky with sediment, which will cause the engine cannot work. Such as cleaning the spark plug can be temporarily remedied, but must identify the root cause of failure.



    We should pay attention to in the process of moving car driver friend problem:

    The working condition of the oil tanker to check the instrument;

    The oil tanker in the drive to check the work of the steering system is normal;

    The oil tanker in the running of the check hand, foot brake is not normal;

    The tank truck chassis in the running of the check engine, the tank body, any abnormal sound and abnormal smell in driving operation;



    The following inspection based on parking time good tank car: touch the front and rear wheel brake drum without overheating, check the tire nut, remove inclusions in tire tread, check for leaks, leak check, Water Leakage, spring plate, shaft bolt is loose, check the tank body and the appearance of network system the tank of the car.









    Specification:



    CIMC Fuel Tanker Semi Trailer 50 - 80 Tons 40-60CBM for carrying or storing oil
    Model 3 Axles 50000Liters
    Axle

    FUWA brand, 13ton, 3 Sets

    Main beam

    Beam height: 500mm

    Upper plate: 10mm

    Double Middle plate: 6 mm

    Down plate: 12mm

    Tank Body Thickness

    4mm, 5mm, 6mm optional

    Material

    Carbon steel or Mn steel

    Gross vehicle weight

    65000kgs

    King pin

    #90

    Support leg

    JOST Standard 28T

    Suspension

    Normal suspension

    Thickness leaf spring

    10/10/10

    Tire/Rim

    1200R20, 13pcs, 8.5, 12 pcs

    Brake Chamber

    Standard 6 pcs

    Spare wheel carrier

    2 pcs

    Tool box

    1 pcs

    Electrical System

    Chinese standard 24C lighting system

    Side Maker Lamp

    LED lamp

    Painting

    Polyurethane Paint

    Overall dimension

    14100×2500×3780(mm)

    Color White, red, green, golden and so on.




    Applications:



    It’s suitable for storage and carrying all kinds of Oils .



    Competitive Advantage:



    1) it has higher safety and running efficiency.

    2) Optimized structure design, let it have lower self weight, but more stonger

    3) excellent appearance of cabin, safety, reliable

    4) low fuel consumption

    5) the key parts adopt the world's top technology products

    6) based on strong technical support and top level technology make the trucks with high

        quality and more reliable

    7) competitive price, cost-effective

    8) quick and efficient spare parts supply bring you more convenient

    9) fast delivery time, we can arrange production according to your needs exactly and Quickly

    10) professional import and export dealing procedure, make customs clearance more high efficiency
