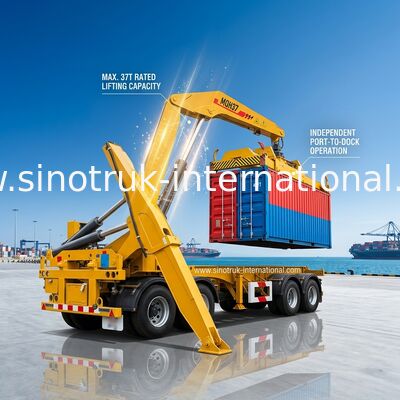

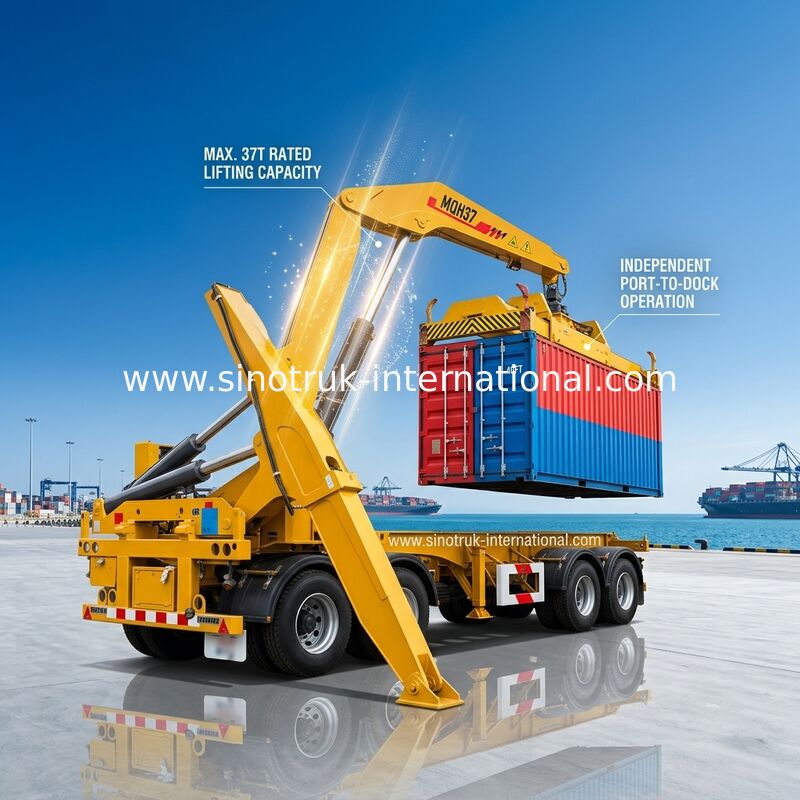

SGS Truck Mounted Cranes Equipment For 3 Axles Semi Trailer Lifting 40ft Container

SGS Truck Mounted Cranes Equipment For 3 Axles Semi Trailer Lifting 40ft Container

  • SGS Truck Mounted Cranes Equipment For 3 Axles Semi Trailer Lifting 40ft Container
  • SGS Truck Mounted Cranes Equipment For 3 Axles Semi Trailer Lifting 40ft Container
  • SGS Truck Mounted Cranes Equipment For 3 Axles Semi Trailer Lifting 40ft Container
  • SGS Truck Mounted Cranes Equipment For 3 Axles Semi Trailer Lifting 40ft Container
SGS Truck Mounted Cranes Equipment For 3 Axles Semi Trailer Lifting 40ft Container
Product Details:
Place of Origin: China
Brand Name: SINOTRUK HOWO
Certification: ISO/3C/BV/IFA/SGS
Model Number: 3axles semi trailer with 37 tons crane
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD85000-USD87000/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2,000units per month
Contact Now
Detailed Product Description
Product Name: Container Side Lifter Emission Standard: Euro 2
Total Length: 11m Max. Lifting Capacity: 37Tons
Model: 8x4 HOWO Truck Hydralic System: Europe Brand
Trailer Brand: SINOTRUK Crane Brand: XCMG
High Light:

truck mounted hydraulic crane

,

truck mounted telescopic boom crane

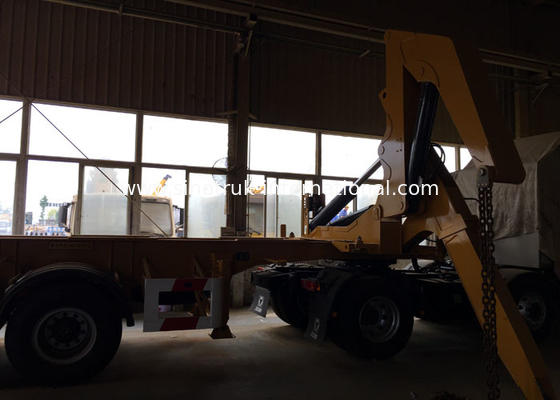

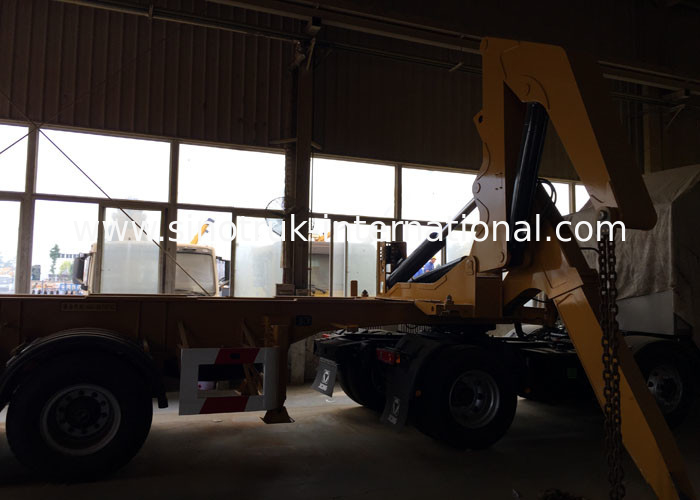

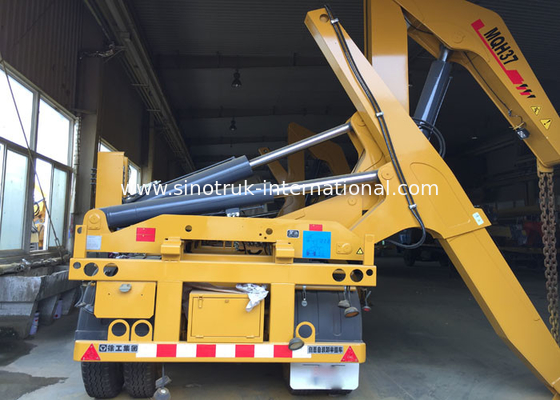

Container Side Loader Crane fitted on 3 axles semi trailer lifting 40ft container



Description:



Container Side Loader Crane fitted on 3 axles semi trailer lifting 40ft container

Control system optimization technology, the vehicle wireless remote control and remote control of the valve before the pressure compensation of the load sensitive advanced electro-hydraulic proportional valves. Remote control operation is safe, comfortable, convenient, remote control panel and a handle with people-oriented, machine moving trend; proportional control, stepless speed regulation, to ensure that the operation is steady, and can accurately control the subtle movements.



Reasonable matching of machine operation process of 6 security systems, intelligent leg side rollover protection system, real-time monitoring of the stability, if the tilt of danger, the alarm automatically and effectively lock the other side legs; a baffle protection, can prevent the container into the danger area. The application of high strength steel, through advanced the software analysis and rigorous testing, to ensure safe and reliable; the same high quality hydraulic seals, electric door locking mechanism of high grade, safe and reliable, practical and safe emergency stop function, also increased security.



Specification:



Container Side Lifter 3 Axles Semi Trailer lift and carry 20ft or 40ft container
Model 3 Axles for 20 or 40 feet Container
Max lifting capacity 37 tons
Axle FUWA brand, 16ton, 3 Sets
Main beam

Beam height: 500mm

Upper plate: 10mm

Double Middle plate: 6 mm

Down plate: 12mm

Dimension of Flat 13000*3000*6mm
Material Carbon steel or Mn steel
Gross vehicle weight 70000kgs
King pin #90
Support leg JOST Standard 28T
Suspension Normal suspension
Thickness leaf spring 10/10/10
Tire/Rim 1200R20, 13pcs, 8.5, 12 pcs
Brake Chamber Standard 6 pcs
Spare wheel carrier 2 pcs
Tool box 1 pcs
Electrical System Chinese standard 24C lighting system
Side Maker Lamp LED lamp
Painting Polyurethane Paint
Overall dimension 16000×2500×3880(mm)
Color White, red, green, golden and so on.




Applications:



Container Sider Loader which can widespread use in transportation, for all kinds 40 or 20 feets container,

popular used in sea port.



Competitive Advantage:



1) competitive price, cost-effective
2) quick and efficient spare parts supply bring you more convenient

3) fast delivery time, we can arrange production according to your needs exactly and quickly

4) professional import and export dealing procedure, make customs clearance more high efficiency

5) Adopted imported hydraulic pump, valve and other hydraulic components, lock micro products, to ensure safety and durability

6) Product is made of high strength steel plate welding, increase the structural strength, reduce the weight of the engine, greatly improving the lifting performance

7) Hexagon bending forming jib, reduced the horizontal shaking, make the operation more safety; Rotating device is made of high quality rotary support and reducer, make the action more supple and smooth.

8) External sandblasting processing of tank, internal anti-corrosion treatment, Outside surface adopts advanced polyurethane paint, beautiful appearance

9) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation,

150 degree tilt up and down. Options small flow pump, spraying reel to wake insecticidal garden trees flowers and plants

10) with all kinds of truck model, which can fulfill your requirement
11) the key parts adopt the world's top technology products
12) based on strong technical support and top level technology make the trucks with high quality and

more reliable
