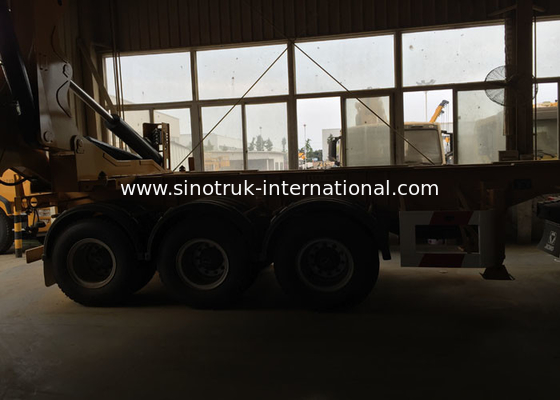

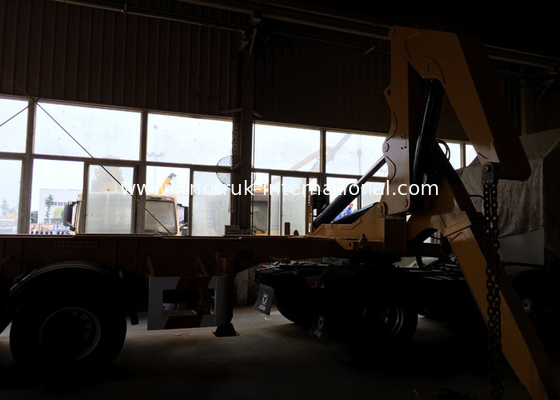

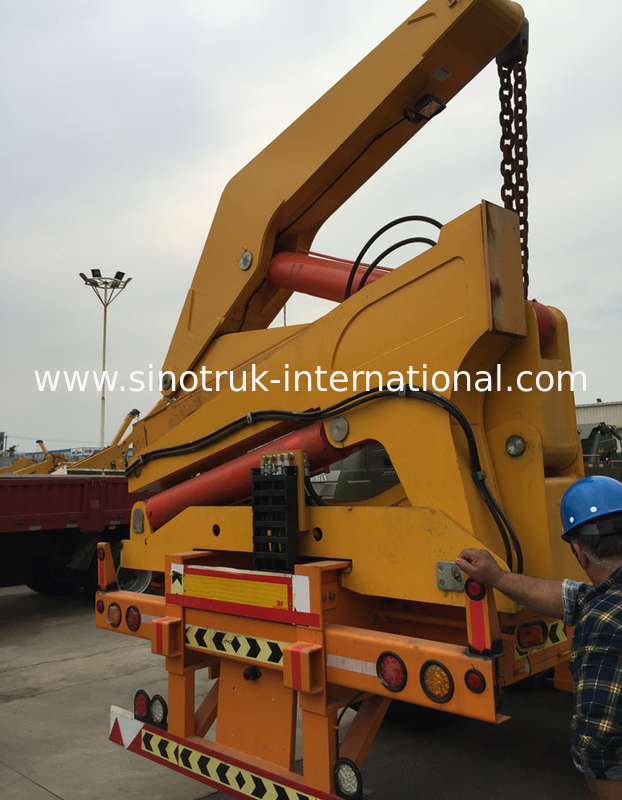

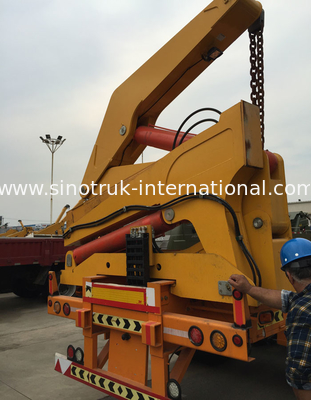

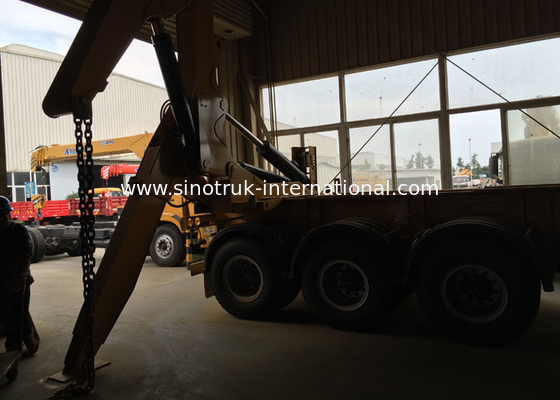

3 Axles Semi Trailer Container Side Loader For Lifting 20ft / 40ft Container

3 Axles Semi Trailer Container Side Loader For Lifting 20ft / 40ft Container

    • 3 Axles Semi Trailer Container Side Loader For Lifting 20ft / 40ft Container
    • 3 Axles Semi Trailer Container Side Loader For Lifting 20ft / 40ft Container
    • 3 Axles Semi Trailer Container Side Loader For Lifting 20ft / 40ft Container
    • 3 Axles Semi Trailer Container Side Loader For Lifting 20ft / 40ft Container
  • 3 Axles Semi Trailer Container Side Loader For Lifting 20ft / 40ft Container

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK HOWO
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: 3axles semi trailer with 37 tons crane

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD85000-USD87000/UNIT)negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 25 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Container Side Lifter Emission Standard: Euro 2
    Total Length: 11m Max. Lifting Capacity: 37Tons
    Model: 8x4 HOWO Truck Hydralic System: Europe Brand
    Trailer Brand: SINOTRUK Crane Brand: XCMG

    3 axles semi trailer Container Side Loader for lifting 20ft or 40ft container



    Description:



    3 axles semi trailer Container Side Loader for lifting 20ft or 40ft container

    Control system optimization technology, the vehicle wireless remote control and remote control of the valve before the pressure compensation of the load sensitive advanced electro-hydraulic proportional valves. Remote control operation is safe, comfortable, convenient, remote control panel and a handle with people-oriented, machine moving trend; proportional control, stepless speed regulation, to ensure that the operation is steady, and can accurately control the subtle movements.



    Reasonable matching of machine operation process of 6 security systems, intelligent leg side rollover protection system, real-time monitoring of the stability, if the tilt of danger, the alarm automatically and effectively lock the other side legs; a baffle protection, can prevent the container into the danger area. The application of high strength steel, through advanced the software analysis and rigorous testing, to ensure safe and reliable; the same high quality hydraulic seals, electric door locking mechanism of high grade, safe and reliable, practical and safe emergency stop function, also increased security.



    Specification:



    3 axles semi trailer Container Side Loader for lifting 20ft or 40ft container
    Model 3 Axles for 20 or 40 feet Container
    Max lifting capacity 37 tons
    Axle FUWA brand, 16ton, 3 Sets
    Main beam

    Beam height: 500mm

    Upper plate: 10mm

    Double Middle plate: 6 mm

    Down plate: 12mm

    Dimension of Flat 13000*3000*6mm
    Material Carbon steel or Mn steel
    Gross vehicle weight 70000kgs
    King pin #90
    Support leg JOST Standard 28T
    Suspension Normal suspension
    Thickness leaf spring 10/10/10
    Tire/Rim 1200R20, 13pcs, 8.5, 12 pcs
    Brake Chamber Standard 6 pcs
    Spare wheel carrier 2 pcs
    Tool box 1 pcs
    Electrical System Chinese standard 24C lighting system
    Side Maker Lamp LED lamp
    Painting Polyurethane Paint
    Overall dimension 16000×2500×3880(mm)
    Color White, red, green, golden and so on.




    Applications:



    Container Sider Loader which can widespread use in transportation, for all kinds 40 or 20 feets container,

    popular used in sea port.



    Competitive Advantage:



    1) competitive price, cost-effective
    2) quick and efficient spare parts supply bring you more convenient

    3) fast delivery time, we can arrange production according to your needs exactly and quickly

    4) professional import and export dealing procedure, make customs clearance more high efficiency

    5) Adopted imported hydraulic pump, valve and other hydraulic components, lock micro products, to ensure safety and durability

    6) Product is made of high strength steel plate welding, increase the structural strength, reduce the weight of the engine, greatly improving the lifting performance

    7) Hexagon bending forming jib, reduced the horizontal shaking, make the operation more safety; Rotating device is made of high quality rotary support and reducer, make the action more supple and smooth.

    8) External sandblasting processing of tank, internal anti-corrosion treatment, Outside surface adopts advanced polyurethane paint, beautiful appearance

    9) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation,

    150 degree tilt up and down. Options small flow pump, spraying reel to wake insecticidal garden trees flowers and plants

    10) with all kinds of truck model, which can fulfill your requirement
    11) the key parts adopt the world's top technology products
    12) based on strong technical support and top level technology make the trucks with high quality and

    more reliable


    3 Axles Semi Trailer Container Side Loader For Lifting 20ft / 40ft Container3 Axles Semi Trailer Container Side Loader For Lifting 20ft / 40ft Container
