Place of Origin: | China |
Brand Name: | SINOTRUK HOWO A7 |
Certification: | ISO/3C/BV/IFA/SGS |
Model Number: | ZZ3257M3847N1 |
Minimum Order Quantity: | 1 Unit |
---|---|
Price: | USD38000-USD42000/UNIT)negotiation |
Packaging Details: | Nude or Waxing in Roro or bulk ship |
Delivery Time: | 25 working days after received your advance payment |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 3,000units per month |
Product Name: | Sinotruk Tipper Truck | Model: | ZZ3257M3847N1 |
---|---|---|---|
Drive Type: | RHD 6X4 | Engine: | WD615.87, 290HP |
Cargo Body: | 5800*2300*1500mm | Loading Capacity: | 30-40tons |
Cabin: | A7-P | Transmission: | HW13710 |
High Light: | heavy dump truck,sinotruk howo dump truck |

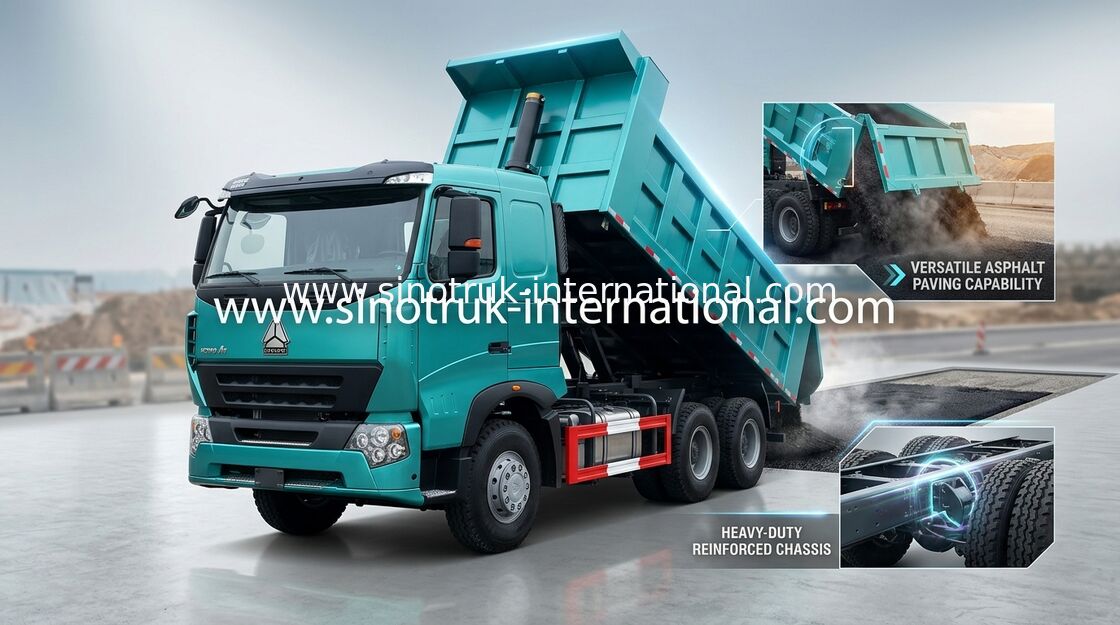

Tipper Truck SINOTRUK HOWO A7 Front Lifting 30 - 40tons RHD 6X4 for Construction
Description:
Tipper Truck SINOTRUK HOWO A7 Front Lifting 30 - 40tons RHD 6X4 for Construction
This type product , with features of reliable structure , high loading capacity which can
load 30-40tons,strong power from 266HP to 420HP, reliable performance and wide
acceplication.
This model can meet the requirements of severe environment like construction site and
mining area.which can fullfiled you of short distance transportation of mining rock and
soil as well as engineering construction.
HOWO-A7 cab is China heavy truck and Italy Giugiaro design companies jointly developed by European style. The appearance of the atmosphere, bold, smooth lines, painting process and top car homogeneous, shaping a noble and beautiful beautiful style; a large windscreen brings a broader perspective, the rearview mirror is beautiful, with electric and electric heating the utility function, convenient; electric lifting system and reduce the labor intensity, convenient maintenance; cab body and door in addition to adhering to the HOWO7 series with the Swedish regulations, but also with reference to the improvement of the achievements in recent years, the Swedish truck steering wheel, additional new high-tech devices, resulting in the crash when hit, the steering column deformation energy absorption, the the safety performance of HOWOA7 heavy truck reached the world top level; the internal configuration of the cab is also reflected in the comfortable and humanized design idea of convenience.
Specifications:
266HP To 420HP Tipper Dump Truck SINOTRUK HOWO A7 Reliable Performance
Model ZZ3257M3847N1
Drive Type 8×4
Cabin A7-P lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW13710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with
air assistance
Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3800+1350(mm)
Overall dimension 8575×2496×3450(mm)
Cargo body 5800×2300×1500(mm),Bottom:8mm, Side:6mm
The curb weight 12300(Kg)
Gross weight 25000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.
Applications:
working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.
Competitive Advantage:
1)with all kinds of truck model, which can fulfil your requirement
2)the key parts adopt the world's top technology products
3)based on strong technical support and top level technology make the trucks with high
quality and more reliable
4)Optimized cargo body structure,light weight,high rigidity,large loading capacity
5)Using the high strength steel,it has long service life
6)Optimized the sealing structure has the better sealing effect.
7)The intelligent hydraulic control system helps to avoid error operation, it has higher safety and running
efficiency.
8)Multiple box structures and device selections
9)low fuel consumption
10) strong enough engine
11)competive price, cost-effective
12)quick and efficient spare parts supply bring you more convenient
13)fast delivery time, we can arange production according to your needs exactly and
quickly
14) professional import and export dealing precedure, make customs clearance more high efficiency
After 10 years of struggle, China National Heavy Duty Truck Group Co. Ltd. has grown into the heavy truck has greater influence and coverage of backbone enterprises.
