RHD SINOTRUK HOWO A7 Mining Tipper Dump Truck ZZ3257M3847N1 A7- P Cabin Long Life

RHD SINOTRUK HOWO A7 Mining Tipper Dump Truck ZZ3257M3847N1 A7- P Cabin Long Life

  • RHD SINOTRUK HOWO A7 Mining Tipper Dump Truck ZZ3257M3847N1 A7- P Cabin Long Life
  • RHD SINOTRUK HOWO A7 Mining Tipper Dump Truck ZZ3257M3847N1 A7- P Cabin Long Life
  • RHD SINOTRUK HOWO A7 Mining Tipper Dump Truck ZZ3257M3847N1 A7- P Cabin Long Life
  • RHD SINOTRUK HOWO A7 Mining Tipper Dump Truck ZZ3257M3847N1 A7- P Cabin Long Life
RHD SINOTRUK HOWO A7 Mining Tipper Dump Truck ZZ3257M3847N1 A7- P Cabin Long Life
Product Details:
Place of Origin: China
Brand Name: SINOTRUK HOWO A7
Certification: ISO/3C/BV/IFA/SGS
Model Number: ZZ3257M3847N1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD38000-USD42000/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3,000units per month
Contact Now
Detailed Product Description
Product Name: Sinotruk Tipper Truck Model: ZZ3257M3847N1
Drive Type: RHD 6X4 Engine: WD615.87, 290HP
Cargo Body: 5800*2300*1500mm Loading Capacity: 30-40tons
Cabin: A7-P Transmission: HW13710
High Light:

heavy dump truck

,

sinotruk howo dump truck

,

RHD 6X4 Tipper Dump Truck





Tipper Truck SINOTRUK HOWO A7 Front Lifting 30 - 40tons RHD 6X4 for Construction



Description:



1. Oil saving, safety, driving comfort, reliability, low application cost
2. Engine, Sinotruk engine, 290HP
3. front lifting type
4. Tipper body: square or U-shaped
5. Tipper body: 15 to 20cbm
6. Heavy-duty load capacity: 30 to 40 tons
7. Hydraulic system: Chinese famous brand





Specifications:




SINOTRUK HOWO A7 Dump Truck 30 - 40tons RHD 6X4 for Construction material loading
Model ZZ3257M3847N1
Drive Type 8×4
Engine

WD615.87 , 290HP( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

Displacement : 9.726L

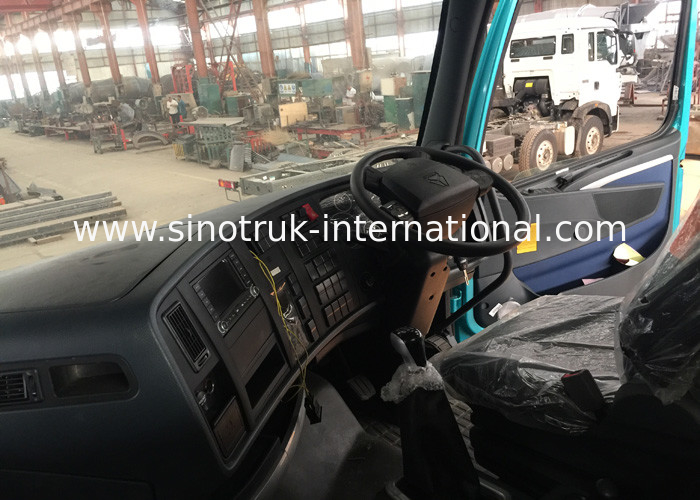

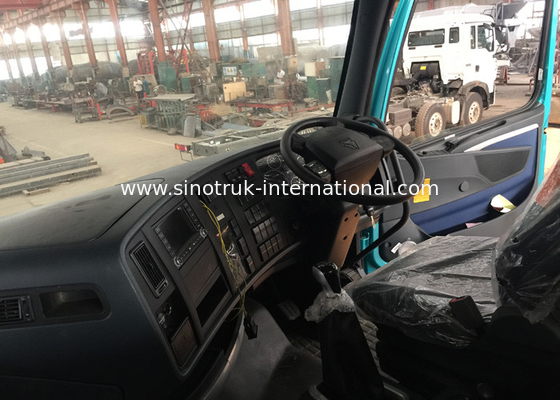

Cabin A7-P lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW13710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

air assistance

Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3800+1350(mm)
Overall dimension 8575×2496×3450(mm)
Cargo body 5800×2300×1500(mm),Bottom:8mm, Side:6mm
The curb weight 12300(Kg)
Gross weight 25000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.



Applications:



working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.



Competitive Advantage:



1)with all kinds of truck model, which can fulfil your requirement
2)the key parts adopt the world's top technology products
3)based on strong technical support and top level technology make the trucks with high

quality and more reliable

4)Optimized cargo body structure,light weight,high rigidity,large loading capacity

5)Using the high strength steel,it has long service life

6)Optimized the sealing structure has the better sealing effect.

7)The intelligent hydraulic control system helps to avoid error operation, it has higher safety and running

 efficiency.

8)Multiple box structures and device selections

9)low fuel consumption
10) strong enough engine

11)competive price, cost-effective
12)quick and efficient spare parts supply bring you more convenient
13)fast delivery time, we can arange production according to your needs exactly and

quickly

14) professional import and export dealing precedure, make customs clearance more high efficiency




After 10 years of struggle, China National Heavy Duty Truck Group Co. Ltd. has grown into the heavy truck has greater influence and coverage of backbone enterprises.



RHD SINOTRUK HOWO A7 Mining Tipper Dump Truck ZZ3257M3847N1 A7- P Cabin Long Life 0

RHD SINOTRUK HOWO A7 Mining Tipper Dump Truck ZZ3257M3847N1 A7- P Cabin Long Life 1

Our advantage


1.We have much years history in manufacture various trailers.We have our own factory, in this case,we can give your a more reasonable price with high quality.
2.Integrated production, scientific research & development and professional sales teams, all
those advantages can provide the full service of trailers, semi-trailers, tractor head, dump
truck, engineering machinery and trailer parts.
