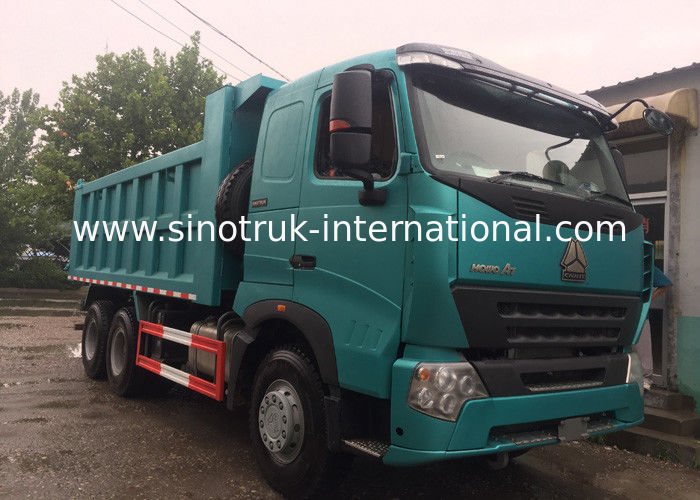

ZZ3257M3847N1 Howo Tipper Truck Sinotruk Engine Fuel Consumption 8×4 Drive Type

ZZ3257M3847N1 Howo Tipper Truck Sinotruk Engine Fuel Consumption 8×4 Drive Type

  • ZZ3257M3847N1 Howo Tipper Truck Sinotruk Engine Fuel Consumption 8×4 Drive Type
  • ZZ3257M3847N1 Howo Tipper Truck Sinotruk Engine Fuel Consumption 8×4 Drive Type
  • ZZ3257M3847N1 Howo Tipper Truck Sinotruk Engine Fuel Consumption 8×4 Drive Type
  • ZZ3257M3847N1 Howo Tipper Truck Sinotruk Engine Fuel Consumption 8×4 Drive Type
ZZ3257M3847N1 Howo Tipper Truck Sinotruk Engine Fuel Consumption 8×4 Drive Type
Product Details:
Place of Origin: China
Brand Name: SINOTRUK HOWO A7
Certification: ISO/3C/BV/IFA/SGS
Model Number: ZZ3257M3847N1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD38000-USD42000/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3,000units per month
Contact Now
Detailed Product Description
Product Name: Sinotruk Tipper Truck Model: ZZ3257M3847N1
Drive Type: RHD 6X4 Engine: WD615.87, 290HP
Cargo Body: 5800*2300*1500mm Loading Capacity: 30-40tons
Cabin: A7-P Transmission: HW13710
Highlight:

heavy dump truck

,

sinotruk howo dump truck

Tipper Truck SINOTRUK HOWO A7 Front Lifting 30 - 40tons RHD 6X4 for Construction



Description:



SINOTRUK INTERNATIONAL CO., LTD. specializes in complete trucks , mid trucks as well as light trucks together with all the original and good quality spare parts for HOWO and other series trucks, We sell to various military transporting troops, oil and gas transporting troops, coal transporting troops and engineering teams at home and abroad. Now our products have been exported to China, Russia, the Middle East, Africa, southeast Asia, South America and other countries and regions.





Specifications:




SINOTRUK HOWO A7 Dump Truck 30 - 40tons RHD 6X4 for Construction material loading
Model ZZ3257M3847N1
Drive Type 8×4
Engine

WD615.87 , 290HP( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

Displacement : 9.726L

Cabin A7-P lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW13710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

air assistance

Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3800+1350(mm)
Overall dimension 8575×2496×3450(mm)
Cargo body 5800×2300×1500(mm),Bottom:8mm, Side:6mm
The curb weight 12300(Kg)
Gross weight 25000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.



Applications:



working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.



Competitive Advantage:



1)with all kinds of truck model, which can fulfil your requirement
2)the key parts adopt the world's top technology products
3)based on strong technical support and top level technology make the trucks with high

quality and more reliable

4)Optimized cargo body structure,light weight,high rigidity,large loading capacity

5)Using the high strength steel,it has long service life

6)Optimized the sealing structure has the better sealing effect.

7)The intelligent hydraulic control system helps to avoid error operation, it has higher safety and running

 efficiency.

8)Multiple box structures and device selections

9)low fuel consumption
10) strong enough engine

11)competive price, cost-effective
12)quick and efficient spare parts supply bring you more convenient
13)fast delivery time, we can arange production according to your needs exactly and

quickly

14) professional import and export dealing precedure, make customs clearance more high efficiency




After 10 years of struggle, China National Heavy Duty Truck Group Co. Ltd. has grown into the heavy truck has greater influence and coverage of backbone enterprises.

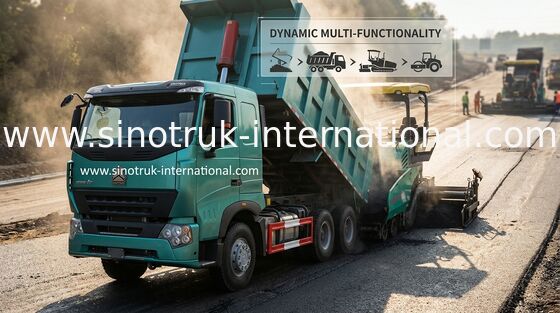

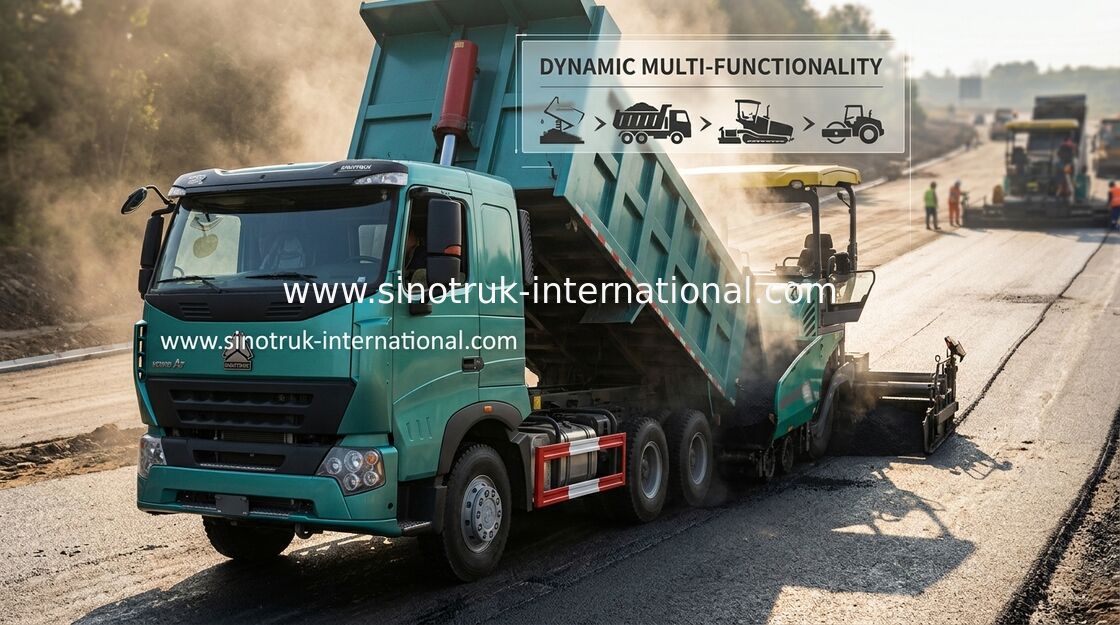

ZZ3257M3847N1 Howo Tipper Truck Sinotruk Engine Fuel Consumption 8×4 Drive Type 0
