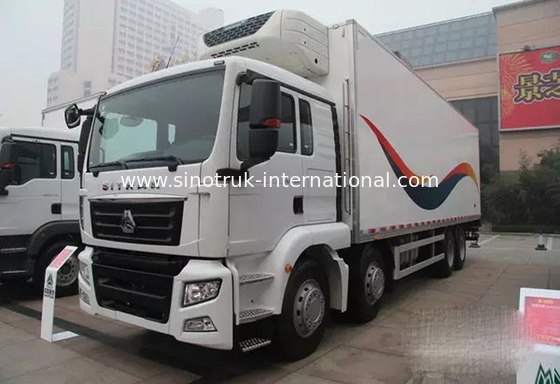

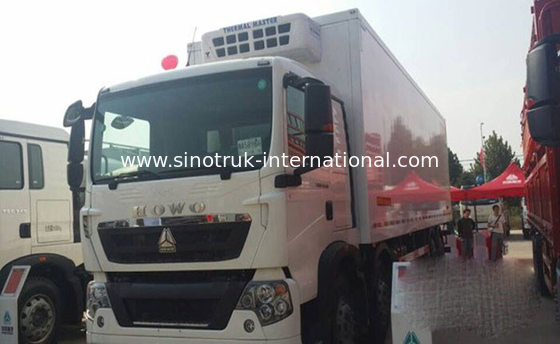

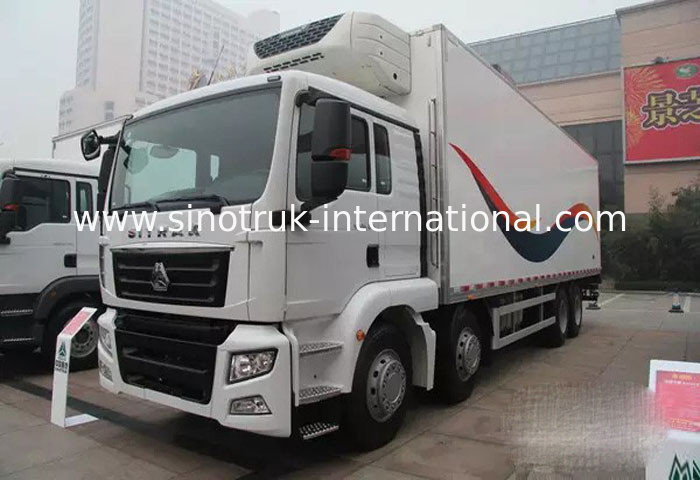

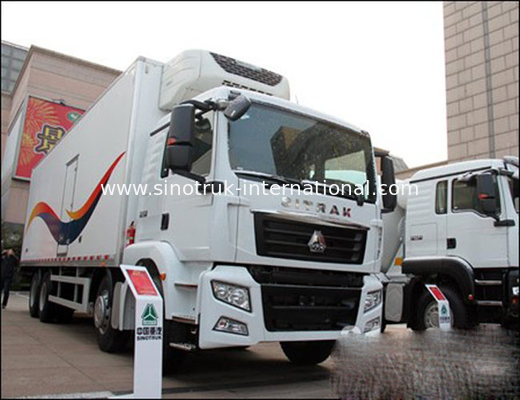

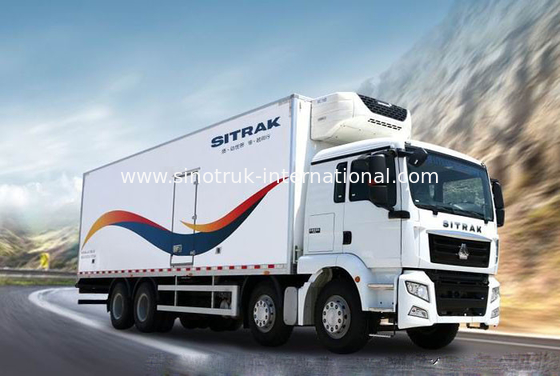

8×4 35 Drive Type Tons Refrigerated Delivery Truck For Keeping Fresh Goods

8×4 35 Drive Type Tons Refrigerated Delivery Truck For Keeping Fresh Goods

    • 8×4 35 Drive Type Tons Refrigerated Delivery Truck For Keeping Fresh Goods
    • 8×4 35 Drive Type Tons Refrigerated Delivery Truck For Keeping Fresh Goods
    • 8×4 35 Drive Type Tons Refrigerated Delivery Truck For Keeping Fresh Goods
    • 8×4 35 Drive Type Tons Refrigerated Delivery Truck For Keeping Fresh Goods
  • 8×4 35 Drive Type Tons Refrigerated Delivery Truck For Keeping Fresh Goods

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: ZZ1317N3861W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD48000-USD48500/UNIT)negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 25 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Refrigerated Truck Model: ZZ1317N3861W
    Drive Type: LHD 8X4 Emission Standard: Euro 2
    Engine: WD615.69, 336HP Loading Capacity: 35Tons
    Min. Temperature: -18℃

    Refrigerated Truck 35Tons for keeping in cold storage and transportation of goods



    Description:



    Refrigerated Truck 35Tons for keeping in cold storage and transportation of goods

    Refrigerated truck is one kind of closed van truck which is used to transport the frozen

    or fresh goods,  was fitted with the refrigerating unit device and polyurethane thermal

    insulation van and it is refrigeration special use transport truck, usually used for

    transporting frozen foods ( freezer truck ), dairy ( milk truck ), vegetables and fruits

    ( fresh goods transport vehicle ), vaccine and drug ( vaccine vehicles) etc..



    Specification:



    Refrigerated Truck 35Tons for keeping in cold storage and transportation of goods

    Chassis Model

    ZZ1317M3861W

    Drive Type

    8×4

    Engine

    WD615.69, 336HP

    Cabin

    HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat)

    Transmission

    HW15710(10 forwards & 2 reverses)

    Front Axle

    1×HF7 ( 7 Tons)

    Driving Axle

    HC16, 16Tons

    Clutch

    hydraulically operating with air assistance

    Rim/ Tire

    11.00R20,12.00R20,12.00R24 Radial tire, 295/80R22.5, Tubeless tire

    Wheel base

    1800+3800+1350(mm)

    Van board material

    polymer composites

    Dimension of cargo body

    49CBM(8600*2300*2450mm)

    Refrigerator

    XL-300,  -18C0

    Overall dimension

    11190×2500×3650(mm)

    The curb weight

    13060(Kg)

    Gross weight

    31000 kg

    Max. speed

    95km/h

    Color

    White, red, green, golden and so on.


    Applications:



    Refrigerated Truck can widespread use in transportation of all kind of frozen food,  vaccinum, vegetables and fruit.



    Competitive Advantage:





    1) Our company's production of circular easy brand refrigerator car introduced Italy,

    Germany, the United States overall polyester foam technology, and high strength fiber

    plastic and other material  manufacturing technology and equipment
    2) so that our company refrigeration, heat preservation technology level basic reached

    world advanced  water level.
    3) Refrigeration, heat preservation car body with light, high strength, good heat

    insulation performance,  high temperature stability, no pollution, oxidation, easy

    maintenance, but also has low noise, low energy consumption, low failure rate, food

    preservation effect is good and so on a series of advantages
    4) A lot of technical indicators and the world's advanced level is close to the fully

    closed polyurethane  plate bonded glass steel structure, this product is light weight,

    low heat leakage.

    5) The "sandwich" structure (low thermal conductivity), good thermal

    insulation effect. Using unsaturated  polyester resin as binder, plus a cushion, with

    rigid polyurethane foam insulation, heat conduction low  coefficient, high strength. High

    strength plate bonding, high sealing glue, forming a whole. The structure of the

    refrigerator car is dominant in the domestic market, our company is using the technology

    of  refrigerated trucks.
    6) with all kinds of truck model, which can fulfill your requirement
    7) the key parts adopt the world's top technology products
    8) based on strong technical support and top level technology make the trucks with high

    quality and more reliable
    9) competitive price, cost-effective
