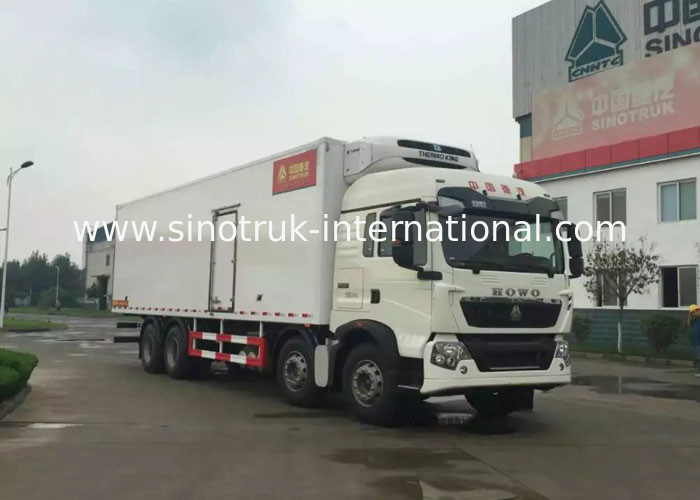

8×4 Refrigerated Trucks And Vans SINOTRUK HOWO 40 Ton For Carrying Frozen Foods

    • 8×4 Refrigerated Trucks And Vans SINOTRUK HOWO 40 Ton For Carrying Frozen Foods
    • 8×4 Refrigerated Trucks And Vans SINOTRUK HOWO 40 Ton For Carrying Frozen Foods
    • 8×4 Refrigerated Trucks And Vans SINOTRUK HOWO 40 Ton For Carrying Frozen Foods
    • 8×4 Refrigerated Trucks And Vans SINOTRUK HOWO 40 Ton For Carrying Frozen Foods
  • 8×4 Refrigerated Trucks And Vans SINOTRUK HOWO 40 Ton For Carrying Frozen Foods

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: ZZ1317N3861W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD48000-USD48500/UNIT)negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 25 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2,000units per month
    Contact Now
    Detailed Product Description
    Min. Temperature: -18℃ Model: ZZ1317N3861W
    Product Name: Refrigerated Truck Drive Type: LHD 8X4
    Emission Standard: Euro 2 Engine: WD615.69, 336HP
    Loading Capacity: 40Tons

    SINOTRUK HOWO 8×4 Refrigerated Trucks And Vans 40 Ton for carrying Frozen Foods



    Description:



    SINOTRUK HOWO 8×4 Refrigerated Trucks And Vans 40 Ton for carrying Frozen Foods

    The "sandwich" structure (low thermal conductivity), good thermal

    insulation effect. Using unsaturated polyester resin as binder, plus a cushion, with

    rigid polyurethane foam insulation, heat conduction low coefficient, high strength. High

    strength plate bonding, high sealing glue, forming a whole.



    The structure of the refrigerator car is dominant in the domestic market, our company is using the technology of refrigerated trucks.



    Refrigerated truck is one kind of closed van truck which is used to transport the frozen

    or fresh goods,  was fitted with the refrigerating unit device and polyurethane thermal

    insulation van and it is refrigeration special use transport truck, usually used for

    transporting frozen foods ( freezer truck ), dairy ( milk truck ), vegetables and fruits

    ( fresh goods transport vehicle ), vaccine and drug ( vaccine vehicles) etc..







    Specification:



    Refrigerated Trucks SINOTRUK 8×4 LHD And Vans 40 Ton for carrying Frozen Foods

    Chassis Model

    ZZ1317M3861W

    Drive Type

    8×4

    Engine

    WD615.69, 336HP

    Cabin

    HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat)

    Transmission

    HW15710(10 forwards & 2 reverses)

    Front Axle

    1×HF7 ( 7 Tons)

    Driving Axle

    HC16, 16Tons

    Clutch

    hydraulically operating with air assistance

    Rim/ Tire

    11.00R20,12.00R20,12.00R24 Radial tire, 295/80R22.5, Tubeless tire

    Wheel base

    1800+3800+1350(mm)

    Van board material

    polymer composites

    Dimension of cargo body

    49CBM(8600*2300*2450mm)

    Refrigerator

    XL-300,  -18C0

    Overall dimension

    11190×2500×3650(mm)

    The curb weight

    13060(Kg)

    Gross weight

    31000 kg

    Max. speed

    95km/h

    Color

    White, red, green, golden and so on.


    Applications:



    Refrigerated Truck can widespread use in transportation of all kind of frozen food, vaccinum, vegetables and fruit.



    Competitive Advantage:



    1)with all kinds of truck model, which can fulfill your requirement
    2) the key parts adopt the world's top technology products
    3) based on strong technical support and top level technology make the trucks with high

    quality and more reliable

    4) Our company's production of circular easy brand refrigerator car introduced Italy,

    Germany, the United States overall polyester foam technology, and high strength fiber

    plastic and other material  manufacturing technology and equipment

    5) Refrigeration, heat preservation car body with light, high strength, good heat

    insulation performance, high temperature stability, no pollution, oxidation, easy

    maintenance, but also has low noise, low energy consumption, low failure rate, food

    preservation effect is good and so on a series of advantages
    6) A lot of technical indicators and the world's advanced level is close to the fully

    closed polyurethane plate bonded glass steel structure, this product is light weight,

    low heat leakage.

    7) so that our company refrigeration, heat preservation technology level basic reached

    world advanced  water level.

    8) competitive price, cost-effective

    9) quick and efficient spare parts supply bring you more convenient

    10) fast delivery time, we can arange production according to your needs exactly and quickly

    11) professional import and export dealing precedure, make customs clearance more high efficiency



    8×4 Refrigerated Trucks And Vans SINOTRUK HOWO 40 Ton For Carrying Frozen Foods8×4 Refrigerated Trucks And Vans SINOTRUK HOWO 40 Ton For Carrying Frozen Foods
