HOWO T5G LHD 8×4 Frozen Foods Delivery Truck 40 Ton Low Energy Consumption

    • HOWO T5G LHD 8×4 Frozen Foods Delivery Truck 40 Ton Low Energy Consumption
    • HOWO T5G LHD 8×4 Frozen Foods Delivery Truck 40 Ton Low Energy Consumption
    • HOWO T5G LHD 8×4 Frozen Foods Delivery Truck 40 Ton Low Energy Consumption
    • HOWO T5G LHD 8×4 Frozen Foods Delivery Truck 40 Ton Low Energy Consumption
  • HOWO T5G LHD 8×4 Frozen Foods Delivery Truck 40 Ton Low Energy Consumption

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK T5G
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: ZZ1317N466GD1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD48000-USD48500/UNIT)negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 25 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2,000units per month
    Contact Now
    Detailed Product Description
    Min. Temperature: -18℃ Model: ZZ1317N466GD1
    Product Name: Refrigerated Delivery Truck Drive Type: LHD 8X4
    Emission Standard: Euro 4 Engine: MC07.31-40, 310HP
    Loading Capacity: 40 Tons Transmission: HW13710C

    HOWO T5G LHD 8×4 Frozen Foods Delivery Truck 40 Ton Low Energy Consumption



    Description:



    HOWO T5G LHD 8×4 Frozen Foods Delivery Truck 40 Ton Low Energy Consumption

    Refrigerated truck is one kind of closed van truck which is used to transport the frozen

    or fresh goods,  was fitted with the refrigerating unit device and polyurethane thermal

    insulation van and it is refrigeration special use transport truck, usually used for

    transporting frozen foods ( freezer truck ), dairy ( milk truck ), vegetables and fruits

    ( fresh goods transport vehicle ), vaccine and drug ( vaccine vehicles) etc..



    The whole body is injected into the foaming metal skin structure, and the first generation refrigeration vehicle manufacturing enterprise adopts the process, because the metal material exists on the box body, and is easy to form a large number of cold bridges;



    On the other hand, injection foaming heat insulation layer in the inner quality is not easy to find, not easy to guarantee; moreover, the foam material as insulation material and binder, easy to produce defects such as bond fragile, thermal insulation effect is not ideal, heat leakage rate (the second stage high coefficient of heat).





    Specification:



    HOWO T5G LHD 8×4 Frozen Foods Delivery Truck 40 Ton Low Energy Consumption

    Chassis Model

    ZZ1317M466GD1

    Drive Type

    8×4

    Engine

    MC07.31-40, 310HP, Euro4

    Cabin

    HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat)

    Transmission

    HW13710(10 forwards & 2 reverses)

    Front Axle

    153

    Driving Axle

    153

    Clutch

    hydraulically operating with air assistance

    Rim/ Tire

    11.00R20,12.00R20,12.00R24 Radial tire, 295/80R22.5, Tubeless tire

    Wheel base

    1800+4600+1350(mm)

    Van board material

    polymer composites

    Dimension of cargo body

    49CBM(8600*2300*2450mm)

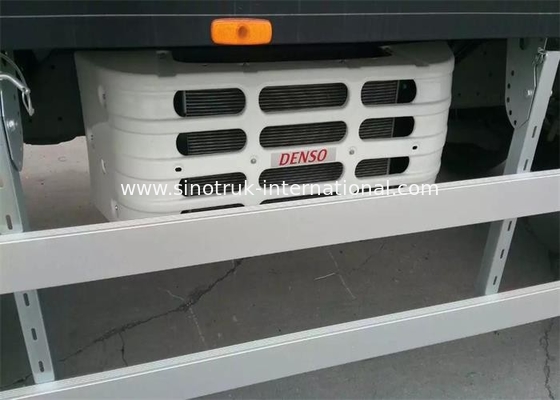

    Refrigerator

    XL-300,  -18C0

    Overall dimension

    11890×2500×3650(mm)

    The curb weight

    13060(Kg)

    Gross weight

    31000 kg

    Max. speed

    95km/h

    Color

    White, red, green, golden and so on.


    Applications:



    Refrigerated Truck can widespread use in transportation of all kind of frozen food, vaccinum, vegetables and fruit.



    Competitive Advantage:



    1) Our company's production of circular easy brand refrigerator car introduced Italy,

    Germany, the United States overall polyester foam technology, and high strength fiber

    plastic and other material  manufacturing technology and equipment

    2) so that our company refrigeration, heat preservation technology level basic reached

    world advanced  water level.
    3) Refrigeration, heat preservation car body with light, high strength, good heat

    insulation performance,  high temperature stability, no pollution, oxidation, easy

    maintenance, but also has low noise, low energy consumption, low failure rate, food

    preservation effect is good and so on a series of advantages
    4) A lot of technical indicators and the world's advanced level is close to the fully

    closed polyurethane  plate bonded glass steel structure, this product is light weight,

    low heat leakage.

    5)with all kinds of truck model, which can fulfill your requirement
    6) the key parts adopt the world's top technology products
    7) based on strong technical support and top level technology make the trucks with high

    quality and more reliable
    8) competitive price, cost-effective

    9) quick and efficient spare parts supply bring you more convenient

    10) fast delivery time, we can arange production according to your needs exactly and quickly

    11) professional import and export dealing precedure, make customs clearance more high efficiency



    HOWO T5G LHD 8×4 Frozen Foods Delivery Truck 40 Ton Low Energy ConsumptionHOWO T5G LHD 8×4 Frozen Foods Delivery Truck 40 Ton Low Energy Consumption
