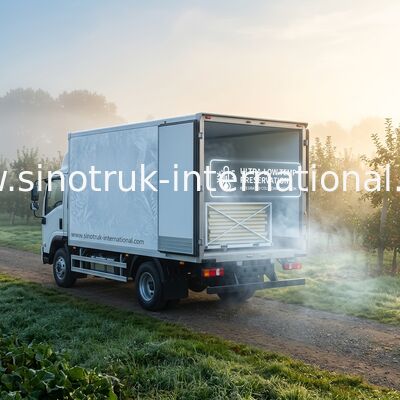

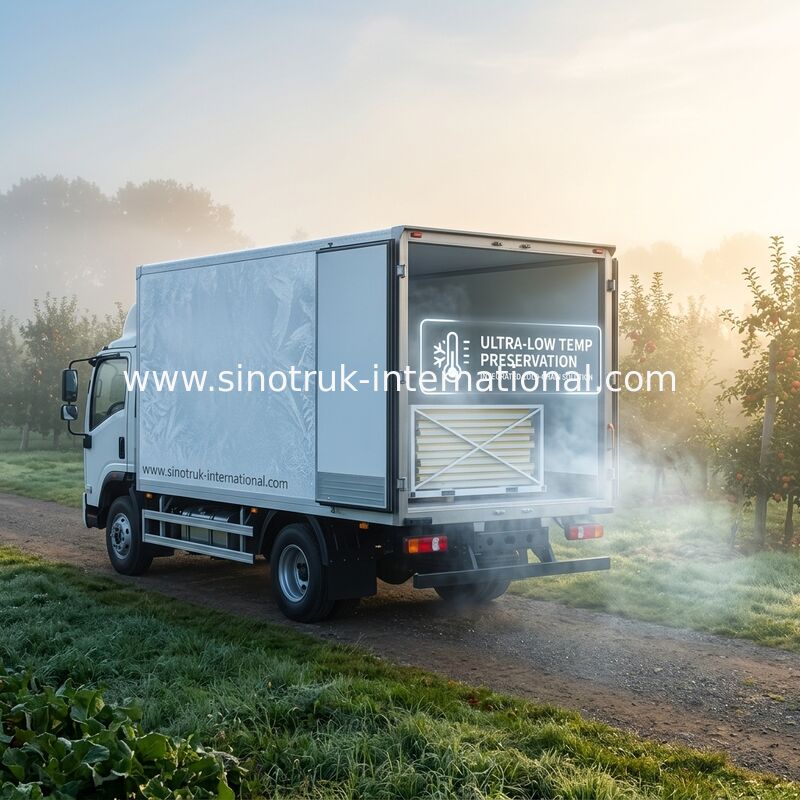

Light weight Refrigerated Food Truck Insulated CKD Panels Fixing On Truck Chassis

    • Light weight Refrigerated Food Truck Insulated CKD Panels Fixing On Truck Chassis
    • Light weight Refrigerated Food Truck Insulated CKD Panels Fixing On Truck Chassis
    • Light weight Refrigerated Food Truck Insulated CKD Panels Fixing On Truck Chassis
  • Light weight Refrigerated Food Truck Insulated CKD Panels Fixing On Truck Chassis

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: 4.9m Length cargo body

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 25 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2,000units per month
    Contact Now
    Detailed Product Description
    Min. Temperature: -18℃ Model: 4.9m Length Cargo Body
    Product Name: Refrigerated Truck CKD Panels Outside Dimension: 4900*2100*2100mm
    Inside Dimension: 4735*1935*1900mm Volume: 17CBM
    Loading Capacity: 6-12 Tons Aluminum Floor: 10.6 ㎡

    SINOTRUK Refrigerated Truck Insulated CKD Panels, for fixing on the truck chassis



    Description:



    SINOTRUK Refrigerated Truck Insulated CKD Panels, for fixing on the truck chassis

    Foam glass steel structure injection. In the second and third generation refrigerator car manufacturing enterprises are using. This product is based on the first stage of the product is improved step, light weight, heat leakage rate (thermal conductivity) decreased, the insulation effect is good, but there exists bond is not solid, easy car outside the skin foam cushions and other defects.



    Full closed polyurethane bonded glass steel structure plate. In the second and third generation refrigerator car manufacturing enterprises are using. This product is light weight, heat leakage rate (low thermal conductivity), good thermal insulation effect. Using unsaturated polyester resin as binder, plus cushion, poly urethane foam with rigid insulation materials, low thermal conductivity high strength, high strength plate. With high bonding, sealing glue, forming a whole. The only flaw is polyurethane after cutting loss is relatively large, so the material cost is high. Especially in the current chemical raw material prices under the condition of serious production costs more and more high. The car refrigerator car of this kind of structure is dominant in the the domestic and foreign markets, but also our refrigerator car manufacturing process used by the enterprise





    Specification:



    SINOTRUK Refrigerated Truck Insulated CKD Panels, for fixing on the truck chassis

    Outside Dimension

    4900*2100*2100mm

    Inside Dimension

    4735*1935*1900mm

    Volume

    17.00CBM

    ANTI-PRESSURE

    >180MPa

    Van Heat Transfer Coefficient

    ≤0.3W/M2﹒K

    ANTI-CURVE

    >220MPa

    CUT STRENGTH

    >24.6MPa

    Side door

    1

    Aluminum floor

    10.6 ㎡

    Main Components

    body assembly

    Material

    Freon-free polyurethane, and GRP material

    Floor or roog



    105mm




    Applications:





    Refrigerated Truck can widespread use in transportation of all kind of frozen food, vaccinum, vegetables and fruit.



    Competitive Advantage:



    1) Our company's production of circular easy brand refrigerator car introduced Italy,

    Germany, the United States overall polyester foam technology, and high strength fiber

    plastic and other material  manufacturing technology and equipment

    2) so that our company refrigeration, heat preservation technology level basic reached

    world advanced  water level.
    3) Refrigeration, heat preservation car body with light, high strength, good heat

    insulation performance,  high temperature stability, no pollution, oxidation, easy

    maintenance, but also has low noise, low energy consumption, low failure rate, food

    preservation effect is good and so on a series of advantages
    4) A lot of technical indicators and the world's advanced level is close to the fully

    closed polyurethane  plate bonded glass steel structure, this product is light weight,

    low heat leakage.

    5)with all kinds of truck model, which can fulfill your requirement
    6) the key parts adopt the world's top technology products
    7) based on strong technical support and top level technology make the trucks with high

    quality and more reliable
    8) competitive price, cost-effective

    9) quick and efficient spare parts supply bring you more convenient

    10) fast delivery time, we can arange production according to your needs exactly and quickly

    11) professional import and export dealing precedure, make customs clearance more high efficiency



    Light weight Refrigerated Food Truck Insulated CKD Panels Fixing On Truck ChassisLight weight Refrigerated Food Truck Insulated CKD Panels Fixing On Truck Chassis
