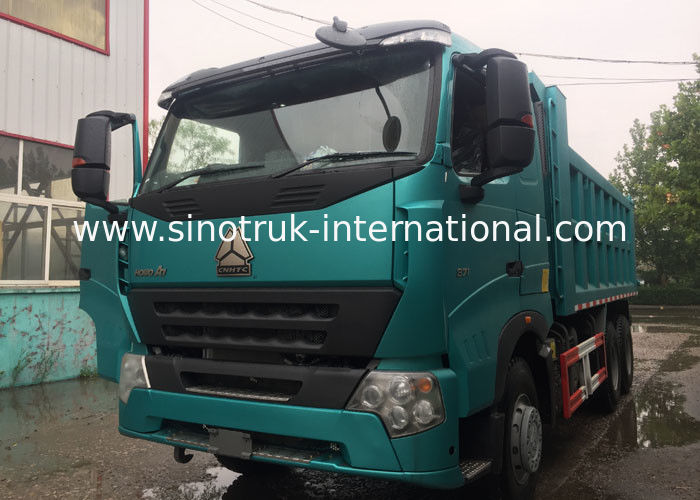

SINOTRUK HOWO A7 Tipper Dump Truck For Construction 30 - 40 Tons RHD 10 Wheels

    • SINOTRUK HOWO A7 Tipper Dump Truck For Construction 30 - 40 Tons RHD 10 Wheels
    • SINOTRUK HOWO A7 Tipper Dump Truck For Construction 30 - 40 Tons RHD 10 Wheels
    • SINOTRUK HOWO A7 Tipper Dump Truck For Construction 30 - 40 Tons RHD 10 Wheels
    • SINOTRUK HOWO A7 Tipper Dump Truck For Construction 30 - 40 Tons RHD 10 Wheels
  • SINOTRUK HOWO A7 Tipper Dump Truck For Construction 30 - 40 Tons RHD 10 Wheels

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK HOWO A7
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: ZZ3257M3847N1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD38000-USD42000/UNIT)negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 25 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 3,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Tipper Dump Truck Model: ZZ3257M3847N1
    Drive Type: RHD 6X4 Emission Standard: Euro 2
    Engine: WD615.87, 290HP Cargo Body: 5800*2300*1500mm
    Loading Capacity: 30-40tons Cabin: A7-P
    Transmission: HW13710 Application: Construction

    SINOTRUK HOWO A7 Tipper Dump Truck For Construction 30 - 40 Tons RHD 10 Wheels



    Tipper Dump Truck Description:



    Tipper Truck SINOTRUK HOWO A7 Front Lifting 30 - 40tons RHD 6X4 for Construction

    This type product , with features of reliable structure , high loading capacity which can

    load 30-40tons,strong power from 266HP to 420HP, reliable performance and wide

    acceplication.



    This model can meet the requirements of severe environment like construction site and

    mining area.which can fullfiled  you of short distance transportation of mining rock and

    soil as well as engineering construction.



    HOWO-A7 cab is China heavy truck and Italy Giugiaro design companies jointly developed by European style. The appearance of the atmosphere, bold, smooth lines, painting process and top car homogeneous, shaping a noble and beautiful beautiful style; a large windscreen brings a broader perspective, the rearview mirror is beautiful, with electric and electric heating the utility function, convenient; electric lifting system and reduce the labor intensity, convenient maintenance; cab body and door in addition to adhering to the HOWO7 series with the Swedish regulations, but also with reference to the improvement of the achievements in recent years, the Swedish truck steering wheel, additional new high-tech devices, resulting in the crash when hit, the steering column deformation energy absorption, the the safety performance of HOWOA7 heavy truck reached the world top level; the internal configuration of the cab is also reflected in the comfortable and humanized design idea of convenience.



    Tipper Dump Truck Specifications:




    SINOTRUK HOWO A7 Dump Truck 30 - 40tons RHD 6X4 for Construction material loading
    Model ZZ3257M3847N1
    Drive Type 8×4
    Engine

    WD615.87 , 290HP( Euro II)

    6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

    Displacement : 9.726L

    Cabin A7-P lengthened cab(with one sleeper, air-conditioner and new-style seat)
    Transmission HW13710(10 forwards & 2 reverses)
    Front Axle 1×HF9 ( 9 Tons)
    Driving Axle HC16, 16Tons
    Steering ZF8118 hydraulic steering with power assistance.
    Clutch

    Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

    air assistance

    Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
    Wheel base 3800+1350(mm)
    Overall dimension 8575×2496×3450(mm)
    Cargo body 5800×2300×1500(mm),Bottom:8mm, Side:6mm
    The curb weight 12300(Kg)
    Gross weight 25000 kg
    Max. speed 75km/h
    Color White, red, green, golden and so on.



    Tipper Dump Truck Applications:



    working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.



    Competitive Advantage:



    1) with all kinds of truck model, which can fulfil your requirement
    2) the key parts adopt the world's top technology products
    3) based on strong technical support and top level technology make the trucks with high

    quality and more reliable

    4) Optimized cargo body structure,light weight,high rigidity,large loading capacity

    5) Using the high strength steel,it has long service life

    6) Optimized the sealing structure has the better sealing effect.

    7) The intelligent hydraulic control system helps to avoid error operation, it has higher safety and running

     efficiency.

    8) Multiple box structures and device selections

    9) low fuel consumption
    10) strong enough engine

    11) competive price, cost-effective
    12) quick and efficient spare parts supply bring you more convenient
    13) fast delivery time, we can arange production according to your needs exactly and

    quickly

    14) professional import and export dealing precedure, make customs clearance more high efficiency



    SINOTRUK HOWO A7 Tipper Dump Truck For Construction 30 - 40 Tons RHD 10 WheelsSINOTRUK HOWO A7 Tipper Dump Truck For Construction 30 - 40 Tons RHD 10 Wheels
