|Place of Origin:||China|
|Brand Name:||SINOTRUK HOWO|
|Minimum Order Quantity:||1 Unit|
|Packaging Details:||Nude or Waxing in Roro or bulk ship|
|Delivery Time:||25 working days after received your advance payment|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||3,000units per month|
|Product Name:||Heavy Duty Dump Truck||Management System:||Electronic Management System|
|Drive Type:||RHD 6X4||Emission Standard:||Euro 2|
|Feature:||Large Capacity||Cargo Body:||5800*2300*1500mm|
|Loading Capacity:||30-40 Tons||Make:||Howo|
Large Capacity Tipper Dump Truck With Electronic Management System
Tipper Dump Truck Description:
30 - 40 Tons 6X4 RHD Tipper Dump Truck 10-25CBM Front Lifting Hydraulic Cylinder
Be comprehensive with Euro2 and Euro3 engine equipped.
Driving type: 4×2, 4×4 6×2, 6×6 ,6×4, 8×4 and so on.
Power range: 266HP - 420HP.
It is super art in domestic and abroad auto field, full expression of heavy duty truck concept. Delicate design, excellent technology, which will dazzle you as groundbreaking works
Top configration: Discal brakes +EVB,ABS+ASR+EBL+TPM,More Powerful electronic management system
New HOWO dump truck, High Quality , More Lighter,
High Level Comfortable:Cabin 4 point full -floating air suspension ,adjustable steering wheel with various heightsand angles.air suspension seat, Cruise Constant Speed System,MINI Player .electrical control glass and mirror,ATM Gearbox bunk with AC.
Tipper Dump Truck Specification:
|Large Capacity Tipper Dump Truck With Electronic Management System|
|Cabin||HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat)|
|Transmission||HW19710(10 forwards & 2 reverses)|
|Front Axle||1×HF9 ( 9 Tons)|
|Driving Axle||HC16, 16Tons|
|Steering||ZF8118 hydraulic steering with power assistance.|
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with
|Rim/ Tire||11.00R20,12.00R20,12.00R24 Radial tire|
|The curb weight||12200(Kg)|
|Gross weight||25000 kg|
|Color||White, red, green, golden and so on.|
Tipper Dump Truck Applications:
It used for Mining industry, Construction business, docks and so on.
1)competive price, cost-effective
2)with all kinds of truck model, which can fulfil your requirements
3)all kinds of cargo body structure can be designed and produced according to your request,
make it have light curb weight , high rigidity , high loading capacity
4)using the high strength steel, make it has a long service life
5)The optimized hydraulic control system helps to avoid wrong operation, it has higher
safety and running efficiency.
6)excellant apperance of cabin, safety, reliable
7)quick and efficient spare parts supply bring you more convenient
8) you can choose cargo body with Front lifting type or Middle lifting type which you prefered
9) The hydraulic sytem using HYVA brand or Domestic famouse brand
10)low fuel consumption

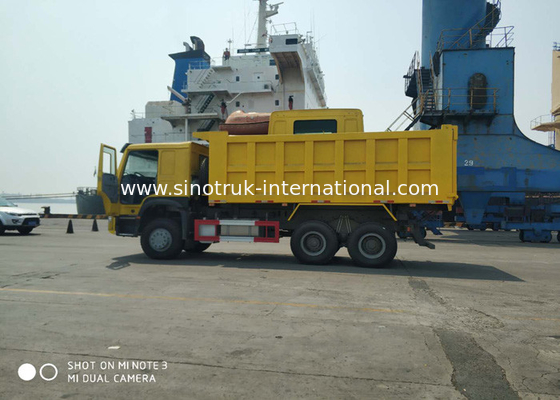

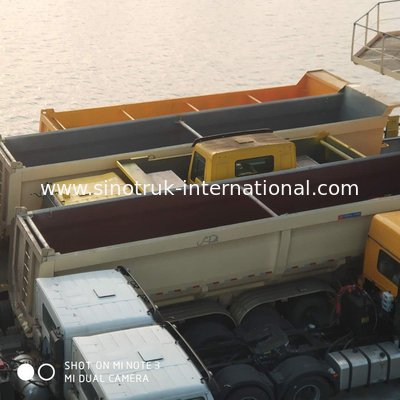

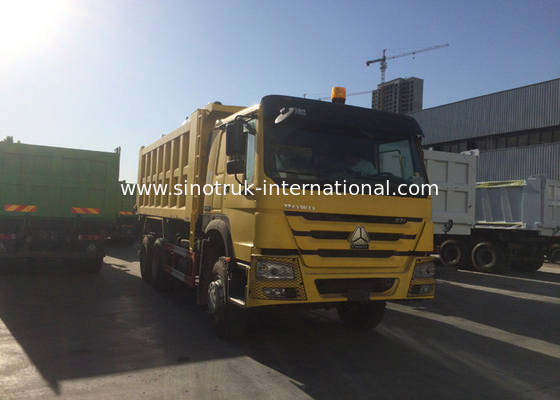

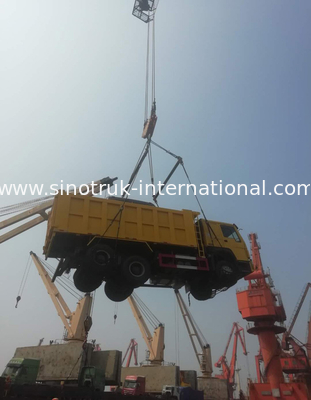

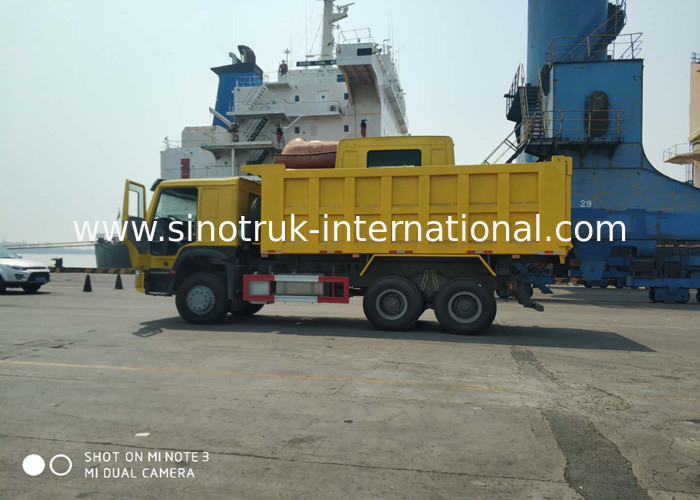

Tipper Dump Truck Details
