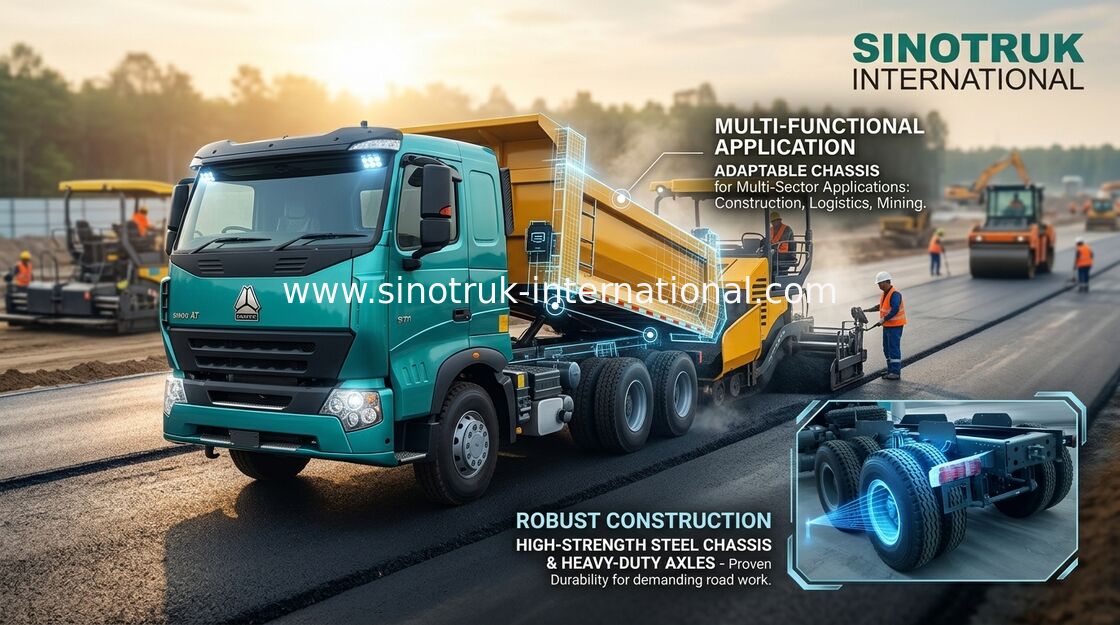

Low Profile Tipper Dump Truck Heavy Duty 6x4 Sinotruk Howo 290HP Widely Use

Low Profile Tipper Dump Truck Heavy Duty 6x4 Sinotruk Howo 290HP Widely Use

    • Low Profile Tipper Dump Truck Heavy Duty 6x4 Sinotruk Howo 290HP Widely Use
    • Low Profile Tipper Dump Truck Heavy Duty 6x4 Sinotruk Howo 290HP Widely Use
    • Low Profile Tipper Dump Truck Heavy Duty 6x4 Sinotruk Howo 290HP Widely Use
    • Low Profile Tipper Dump Truck Heavy Duty 6x4 Sinotruk Howo 290HP Widely Use
  • Low Profile Tipper Dump Truck Heavy Duty 6x4 Sinotruk Howo 290HP Widely Use

    Product Details:

    Place of Origin: China
    Brand Name: SINOTRUK HOWO A7
    Certification: ISO/3C/BV/IFA/SGS
    Model Number: ZZ3257M3847N1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD38000-USD42000/UNIT)negotiation
    Packaging Details: Nude or Waxing in Roro or bulk ship
    Delivery Time: 25 working days after received your advance payment
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 3,000units per month
    Contact Now
    Detailed Product Description
    Product Name: Sinotruk Tipper Truck Model: ZZ3257M3847N1
    Drive Type: RHD 6X4 Engine: WD615.87, 290HP
    Cargo Body: 5800*2300*1500mm Loading Capacity: 30-40tons
    Cabin: A7-P Transmission: HW13710



    Tipper Truck SINOTRUK HOWO A7 Front Lifting 30 - 40tons RHD 6X4 for Construction



    Supply Ability

    Supply Ability:3,000units per month



    Packaging & Delivery

    Packaging Details Nude or Waxing in Roro or bulk ship

    Port Shanghai





    Specifications:




    SINOTRUK HOWO A7 Dump Truck 30 - 40tons RHD 6X4 for Construction material loading
    Model ZZ3257M3847N1
    Drive Type 8×4
    Engine

    WD615.87 , 290HP( Euro II)

    6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

    Displacement : 9.726L

    Cabin A7-P lengthened cab(with one sleeper, air-conditioner and new-style seat)
    Transmission HW13710(10 forwards & 2 reverses)
    Front Axle 1×HF9 ( 9 Tons)
    Driving Axle HC16, 16Tons
    Steering ZF8118 hydraulic steering with power assistance.
    Clutch

    Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

    air assistance

    Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
    Wheel base 3800+1350(mm)
    Overall dimension 8575×2496×3450(mm)
    Cargo body 5800×2300×1500(mm),Bottom:8mm, Side:6mm
    The curb weight 12300(Kg)
    Gross weight 25000 kg
    Max. speed 75km/h
    Color White, red, green, golden and so on.



    Applications:



    working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.



    Competitive Advantage:



    1)with all kinds of truck model, which can fulfil your requirement
    2)the key parts adopt the world's top technology products
    3)based on strong technical support and top level technology make the trucks with high

    quality and more reliable

    4)Optimized cargo body structure,light weight,high rigidity,large loading capacity

    5)Using the high strength steel,it has long service life

    6)Optimized the sealing structure has the better sealing effect.

    7)The intelligent hydraulic control system helps to avoid error operation, it has higher safety and running

     efficiency.

    8)Multiple box structures and device selections

    9)low fuel consumption
    10) strong enough engine

    11)competive price, cost-effective
    12)quick and efficient spare parts supply bring you more convenient
    13)fast delivery time, we can arange production according to your needs exactly and

    quickly

    14) professional import and export dealing precedure, make customs clearance more high efficiency




    After 10 years of struggle, China National Heavy Duty Truck Group Co. Ltd. has grown into the heavy truck has greater influence and coverage of backbone enterprises.
