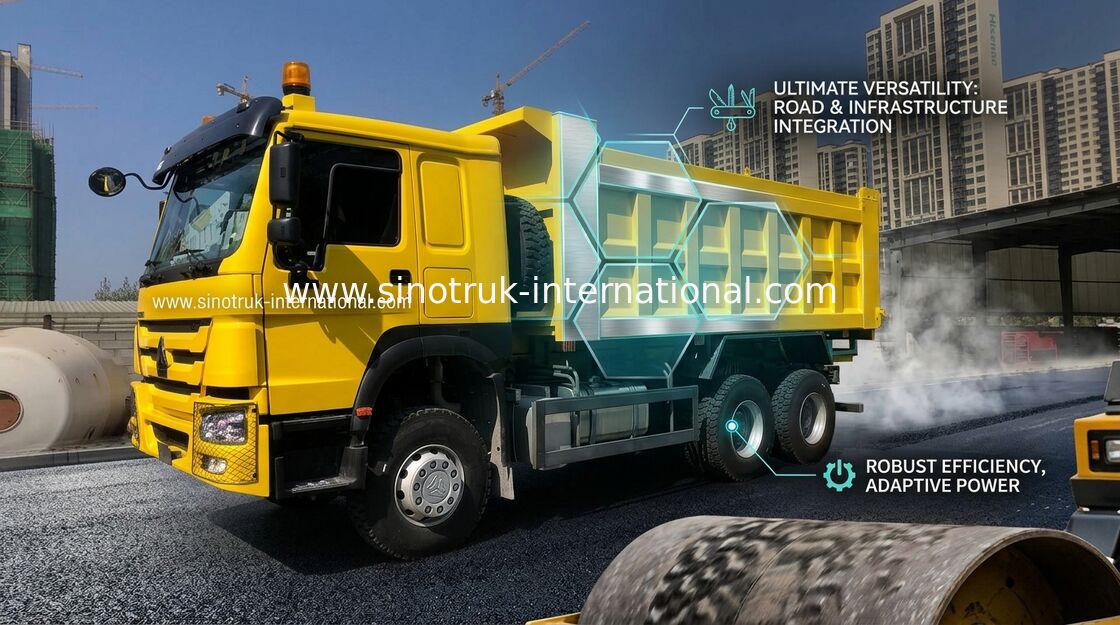

Sinotruk Howo 6x4 Dump Truck 336HP For Construction Mining

Sinotruk Howo 6x4 Dump Truck 336HP For Construction Mining

  • Sinotruk Howo 6x4 Dump Truck 336HP For Construction Mining
  • Sinotruk Howo 6x4 Dump Truck 336HP For Construction Mining
  • Sinotruk Howo 6x4 Dump Truck 336HP For Construction Mining
  • Sinotruk Howo 6x4 Dump Truck 336HP For Construction Mining
Sinotruk Howo 6x4 Dump Truck 336HP For Construction Mining
Product Details:
Place of Origin: China
Brand Name: SINOTRUK
Certification: ISO/3C/BV/IFA/SGS
Model Number: ZZ3257N3447A
Payment & Shipping Terms:
Minimum Order Quantity: 1Unit
Price: Negotiation
Packaging Details: Waxing in Bulk ship, Roro ship, Container
Delivery Time: 10-30 working days
Supply Ability: 3,000 units per month
Contact Now
Detailed Product Description
Model: ZZ3257N3447A Drive Type: 6×4
Transmission: HW19710(10 Forwards & 2 Reverses) Front Axle: 1×HF9 ( 9 Tons)
Driving Axle: 2XHC16, 16Tons Max. Speed: 75km/h
High Light:

Sinotruk Howo 6x4 Dump Truck

,

LHD 6x4 Dump Truck

,

336HP Howo 6x4 Dump Truck

SINOTRUK HOWO 6x4 336HP LHD Dump Truck for Construction, Mining using





Description:

Tipper Truck SINOTRUK HOWO Front Lifting 30 - 40tons RHD 6X4 for Construction

This type product , with features of reliable structure , high loading capacity which can

load 30-40tons,strong power from 266HP to 420HP, reliable performance and wide acceplication.



This model can meet the requirements of severe environment like construction site and

mining area.which can fullfiled you of short distance transportation of mining rock and

soil as well as engineering construction.



HOWO70 cab is China heavy truck and Italy Giugiaro design companies jointly developed by European style. The appearance of the atmosphere, bold, smooth lines, painting process and top car homogeneous, shaping a noble and beautiful beautiful style; a large windscreen brings a broader perspective, the rearview mirror is beautiful, with electric and electric heating the utility function, convenient; electric lifting system and reduce the labor intensity, convenient maintenance; cab body and door in addition to adhering to the HOWO7 series with the Swedish regulations, but also with reference to the improvement of the achievements in recent years, the Swedish truck steering wheel, additional new high-tech devices, resulting in the crash when hit, the steering column deformation energy absorption, the the safety performance of HOWOA7 heavy truck reached the world top level; the internal configuration of the cab is also reflected in the comfortable and humanized design idea of convenience.





Specifications:




SINOTRUK HOWO Dump Truck 30 - 40tons RHD 6X4 for Construction material loading
Model ZZ3257N3447A
Drive Type 6×4
Engine
WD615.69 , 336 HP( Euro II)
6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine
Displacement : 9.726L
Cabin HW70 lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle 2XHC16, 16Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

air assistance

Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3425+1350(mm)
Overall dimension 7835×2496×3170(mm)
Cargo body 5200×2300×1200(mm),Bottom:8mm, Side:6mm
The curb weight 12380(Kg)
Gross weight 25000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.


Applications:



working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.



Competitive Advantage:



1)with all kinds of truck model, which can fulfil your requirement
2)the key parts adopt the world's top technology products
3)based on strong technical support and top level technology make the trucks with high

quality and more reliable

4)Optimized cargo body structure,light weight,high rigidity,large loading capacity

5)Using the high strength steel,it has long service life

6)Optimized the sealing structure has the better sealing effect.

7)The intelligent hydraulic control system helps to avoid error operation, it has higher safety and running

efficiency.

8)Multiple box structures and device selections

9)low fuel consumption
10) strong enough engine

11)competive price, cost-effective
12)quick and efficient spare parts supply bring you more convenient
13)fast delivery time, we can arange production according to your needs exactly and

quickly

14) professional import and export dealing precedure, make customs clearance more high efficiencySinotruk Howo 6x4 Dump Truck 336HP For Construction Mining 0Sinotruk Howo 6x4 Dump Truck 336HP For Construction Mining 1
