| Product Name: | Tipper Dump Truck | Model: | ZZ3259N414PB3 |
|---|---|---|---|
| Drive Type: | LHD 6X4 | Emission Standard: | Euro 2 |
| Engine: | WD615.47, 371HP | Loading Capacity: | 30tons |
| High Light: | 30 tons sino howo dump truck,lhd 6x4 sino howo dump truck,sino howo dump truck 371 |
||

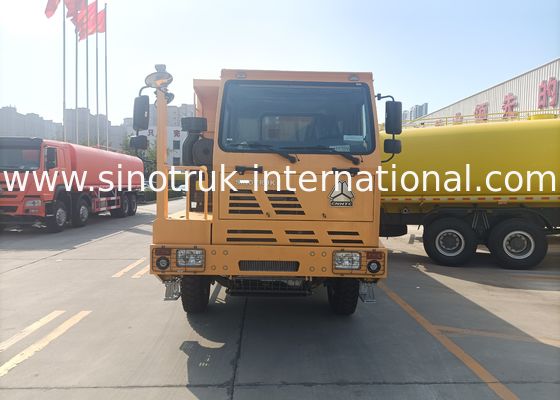

SINOTRUK 6X4 LHD Mining Tipper Dump Truck 371HP 30 Tons
Description:
Mining Tipper Dump Truck 6X4 LHD 371HP 30 tons SINOTRUK HOWO for Mining industry
SINOTRUK independent research and development of new front axle assembly, the application of the whole casting strander beam, 500x210 strengthen type brake for truck parts assembly technology.
Rear axle adopts AC26 mine driving axle, the main reducer structure design more reasonable, strengthen type casting bridge shell and drum brake the vehicle carrying capacity and braking ability in the leading domestic level.
The configuration of the HW19710 gearbox, HW70 force, torque up to 700NM.
Equipped with a 500 liter D type fuel tank (optional 400 liters fuel tank), the workload of vehicle to meet your requirements.
Wheel and tyre: 10.0/2-25 wheel assembly, the standard 14.00-25-36PR tire, the original 14.00R25-36PR tire, is specifically for mines overlord customization of high load capacity, high wear-resistant special tires.
HOWO Mining Dump Truck with unilateral high strength skeleton cab, modelling concise, hale and hearty, broaden their horizons; good sealing can ensure your vehicle is always in the safe and comfortable driving environment; there are each of the two lighting lamps at the top of cabin's front and back for night work.
Specification:
| SINOTRUK 6X4 LHD Mining Tipper Dump Truck 371HP 30 Tons | ||||
| Model | ZZ3259N414PB3 | |||
| Drive Type | 6×4 | |||
| Engine |
|
|||
| Cabin | HW7D unilateral high strength skeleton cab(with one sleeper, air-conditioner and new-style seat) | |||
| Transmission | HW19710(10 forwards & 2 reverses) | |||
| Front Axle | 1×HF12 ( 12 Tons) | |||
| Driving Axle | AC26, 26Tons | |||
| Steering | ZF8118 hydraulic steering with power assistance. | |||
| Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance | |||
| Rim/ Tire | 14.00-25,14.00R25,Radial tire | |||
| Wheel base | 4125+1350(mm) | |||
| Overall dimension | 8810×2496×3450(mm) | |||
| Cargo body | 5800×3100×1500(mm),Bottom:16mm, Side:12mm | |||
| The curb weight | 12340(Kg) | |||
| Gross weight | 25000 kg | |||
| Max. speed | 80km/h | |||
| Color | White, red, green, golden and so on. | |||
Applications:
HOWO 70 Mining Dump Truck is heavy concentrated engineering design personnel and development, first and foremost applies to all kinds of open pit coal mine, steel mills, hydropower construction, dock, poor road conditions, homework is in bad situations in areas within a short distance transport business development of this car, in terms of the particular user groups, with high economic benefit and social benefit.
Competitive Advantage:
1) competive price, cost-effective
2) low fuel consumption
3) strong enough engine
4) with all kinds of truck model, which can fulfil your requirements
5) based on strong technical support and top level technology make the trucks with high quality and more reliable
6) The front lifting type domestic advanced hydraulic control system helps to avoid wrong operation, it has higher
7) the key parts adopt the world's top technology products
8) all kinds of cargo body structure can be designed and produced according to your request, make it have light curb weight , high rigidity , high loading capacity
9) using the high strength steel, make it has a long service life safety and running efficiency.
10) excellant apperance of cabin, safety, reliable
11) quick and efficient spare parts supply bring you more convenient
12) fast delivery time, we can arange production according to your needs exactly and quickly
13) professional import and export dealing precedure, make customs clearance more high efficiency
