Place of Origin: | China |
Brand Name: | SINOTRUK |
Certification: | ISO/3C/BV/IFA/SGS |
Model Number: | ZZ3257V384JB1 |
Minimum Order Quantity: | 1Unit |
---|---|
Price: | Negotiation |
Packaging Details: | Waxing in Bulk ship, Roro ship, Container |
Delivery Time: | 10-30 working days |
Supply Ability: | 3,000 units per month |
Product Name: | Tipper Dump Truck | Model: | ZZ3257V384JB1 |
---|---|---|---|
Drive Type: | LHD 6X4 | Cab: | N76L With One Sleeper, A/C |
Engine: | D12.38, 380HP | Transmission: | HW19710(10 Forwards & 2 Reverses) |
Highlight: | 380hp tipper dump truck,zz3257v384jb1 tipper dump truck,heavy howo dump trucks |

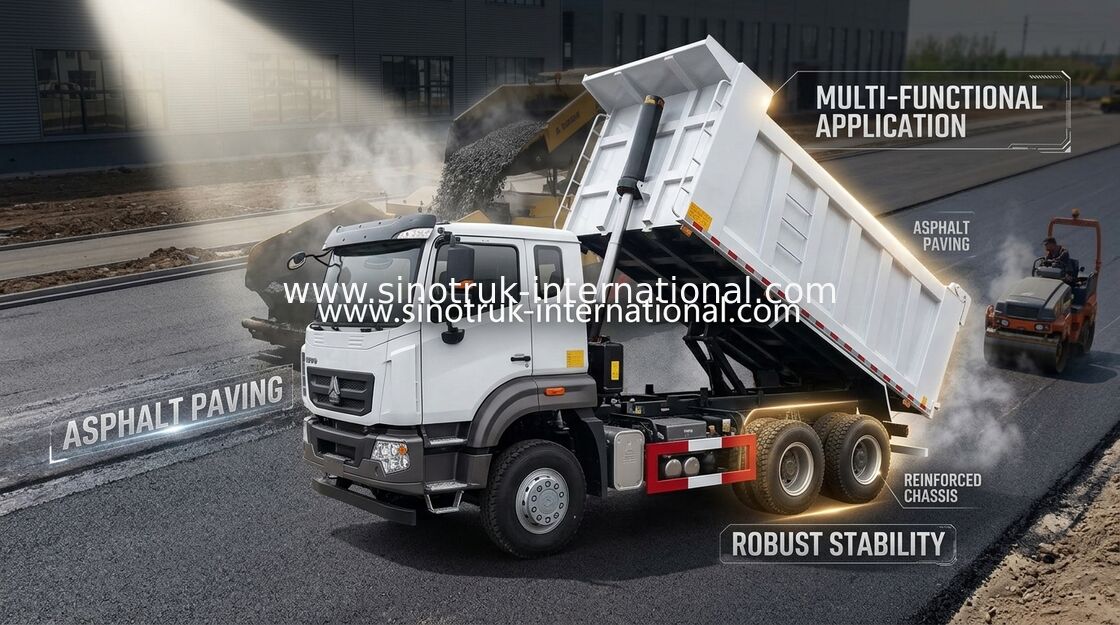

SINOTRUK HOWO 6x4 LHD Heavy Tipper Dump Trucks 380HP
Description:
Tipper Truck SINOTRUK HOWO Front Lifting 30 - 40tons LHD 6X4 for Construction
This type product , with features of reliable structure , high loading capacity which can load 30-40tons,strong power from 266HP to 420HP, reliable performance and wide acceplication.
This model can meet the requirements of severe environment like construction site and mining area.which can fullfiled you of short distance transportation of mining rock and soil as well as engineering construction.
Specifications:
SINOTRUK HOWO 6x4 LHD Heavy Tipper Dump Trucks 380HP | ||||
Model | ZZ3257V384JB1 | |||
Drive Type | 6×4 | |||
Engine |
| |||
Cabin | N76L(with one sleeper, air-conditioner and new-style seat) | |||
Transmission | HW19710(10 forwards & 2 reverses) | |||
Front Axle | 1×HF9 ( 9 Tons) | |||
Driving Axle | 2XHC16, 16Tons | |||
Steering | ZF8118 hydraulic steering with power assistance. | |||
Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance | |||
Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire | |||
Wheel base | 3800+1350(mm) | |||
Overall dimension | 8550×2496×3450(mm) | |||
Cargo body | 5800×2300×1500(mm),Bottom:8mm, Side:6mm | |||
The curb weight | 12100(Kg) | |||
Gross weight | 25000 kg | |||
Max. speed | 75km/h | |||
Color | White, red, green, golden and so on. |
Applications:
working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.
Competitive Advantage:
1. competive price, cost-effective
2. with all kinds of truck model, which can fulfil your requirements
3. all kinds of cargo body structure can be designed and produced according to your request,make it have light curb weight , high rigidity , high loading capacity
4. using the high strength steel, make it has a long service life
5. The optimized hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
6. excellant apperance of cabin, safety, reliable
7. quick and efficient spare parts supply bring you more convenient
8. you can choose cargo body with Front lifting type or Middle lifting type which you prefered
9. The hydraulic sytem using HYVA brand or Domestic famouse brand
10. low fuel consumption
11. strong enough engine
12. fast delivery time, we can arange production according to your needs exactly and quickly
13. professional import and export dealing precedure, make customs clearance more high efficiency
