Place of Origin: | China |
Brand Name: | SINOTRUK |
Certification: | ISO/3C/BV/IFA/SGS |
Model Number: | ZZ3257N3847A |
Minimum Order Quantity: | 1Unit |
---|---|
Price: | Negotiation |
Packaging Details: | Waxing in Bulk ship, Roro ship, Container |
Delivery Time: | 10-30 working days |
Supply Ability: | 3,000 units per month |
Product Name: | Tipper Dump Truck | Model: | ZZ3257N3847A |
---|---|---|---|
Drive Type: | LHD 6X4 | Cab: | HW76 |
Engine: | WD615.47 , 371HP | Color: | White, Red, Green, Golden And So On. |
High Light: | zz3257n3847a sinotruk howo dump truck,371hp sinotruk howo dump truck,euro ii howo dump trucks |

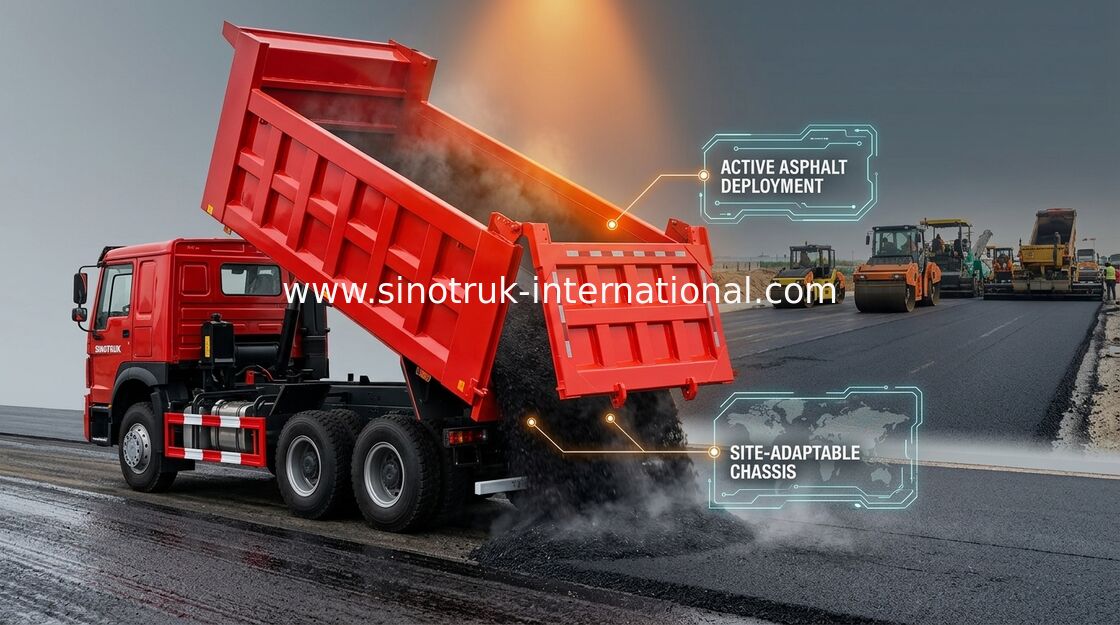

SINOTRUK HOWO 6x4 LHD 10 Wheel Tipper Dump Trucks 371HP
Description:
Dump Truck SINOTRUK HOWO 371HP LHD 6X4 25-40tons for Construction industry
Delicate design, excellent technology, which will dazzle you as groundbreaking works. Comfort, safety, reliability, electronic level geared to international level.
Low fuel consumption. Engine output 266-420HP. Euro2-Euro5 emission stand engine.reliable performance and wide acceplication.This model can meet the requirements of severe environment like construction site and mining area.which can fullfiled you of short distance transportation of mining rock and soil as well as engineering construction.
Specification:
SINOTRUK HOWO 6x4 LHD 10 Wheel Tipper Dump Trucks 371HP | ||||
Model | ZZ3257N3847A | |||
Drive Type | 6×4 | |||
Engine |
|
|||
Cabin | HW 76 engthened cab(with one sleeper, air-conditioner and new-style seat) | |||
Transmission | HW19710(10 forwards & 2 reverses) | |||
Front Axle | 1×HF9 ( 9 Tons) | |||
Driving Axle | HC16, 16Tons | |||
Steering | ZF8118 hydraulic steering with power assistance. | |||
Clutch |
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
|||
Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire | |||
Wheel base | 3825+1350(mm) | |||
Overall dimension | 8145×2496×3140(mm) | |||
Cargo body | 5400×2300×1500(mm),Bottom:8mm, Side:6mm | |||
The curb weight | 12200(Kg) | |||
Gross weight | 25000 kg | |||
Max. speed | 75km/h | |||
Color | White, red, green, golden and so on. |
Applications:
It suiable for Mining industry, Construction business, docks and so on.
Competitive Advantage:
1)VOLVO cargo body structure , light weight , high rigidity , hight loading capacity
2)Using the high strength steel,it has long service life
3)perfect the sealing structure has the better sealing effect.
4)The advanced hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
5)the whole truck structure has lower center of gravity,with higher security when lifting the cargo body.
6) beautiful apperance of cabin, safety, reliable
7) lower fuel consumption
8) strong enough power of engine
9)competive price, cost-effective
10)quick and efficient spare parts supply bring you more convenient
11)fast delivery time, we can arange production according to your needs exactly and quickly
