Place of Origin: | China |
Brand Name: | SINOTRUK |
Certification: | ISO/3C/BV/IFA/SGS |
Model Number: | ZZ3257N3847A |
Minimum Order Quantity: | 1Unit |
---|---|
Price: | Negotiation |
Packaging Details: | Waxing in Bulk ship, Roro ship, Container |
Delivery Time: | 10-30 working days |
Supply Ability: | 3,000 units per month |
Drive Type: | 6×4 | Transmission: | HW19710(10 Forwards & 2 Reverses) |
---|---|---|---|
Model: | ZZ3257N3847A | Engine: | WD615.47 , 371HP |
Cabin: | HW76 | Color: | White, Red, Green, Golden And So On. |
High Light: | zz3257n3847a tipper dump truck,mining industry tipper dump truck,zz3257n3847a howo dump trucks |

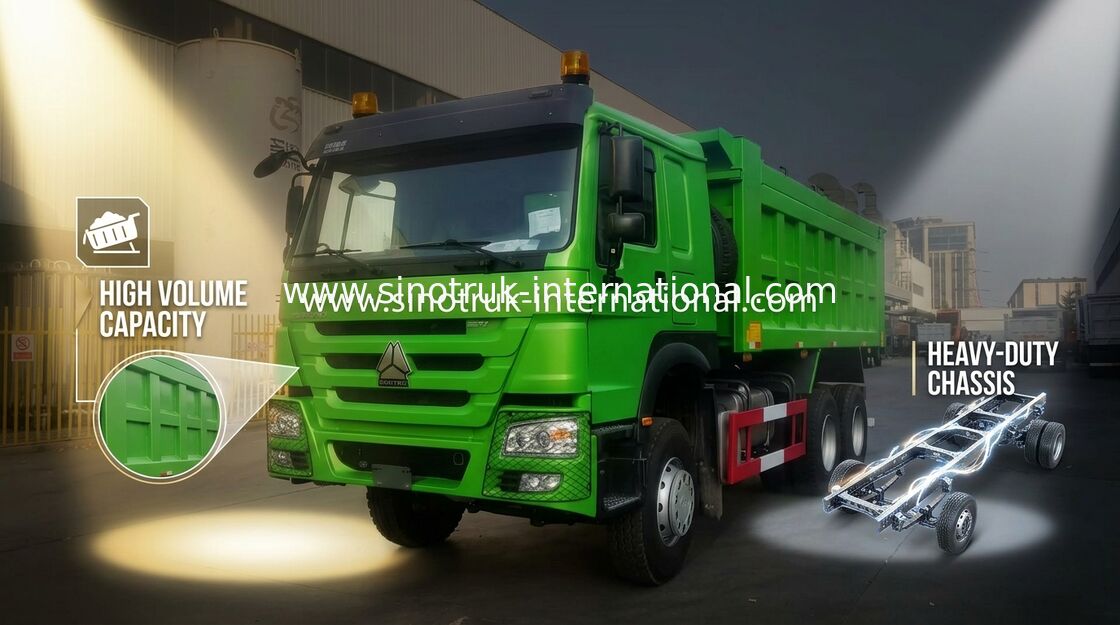

SINOTRUK HOWO 6x4 LHD Tipper Dump Trucks 371HP For Mining Industry
Description:
Dump Truck SINOTRUK HOWO 371HP LHD 6X4 25-40tons for Construction industry
Delicate design, excellent technology, which will dazzle you as groundbreaking works. Comfort, safety, reliability, electronic level geared to international level.
Low fuel consumption. Engine output 266-420HP. Euro2-Euro5 emission stand engine.reliable performance and wide acceplication.This model can meet the requirements of severe environment like construction site and mining area.which can fullfiled you of short distance transportation of mining rock and soil as well as engineering construction.
Specification:
SINOTRUK HOWO 6x4 LHD Tipper Dump Trucks 371HP For Mining Industry | ||||
Model | ZZ3257N3847A | |||
Drive Type | 6×4 | |||
Engine |
|
|||
Cabin | HW 76 engthened cab(with one sleeper, air-conditioner and new-style seat) | |||
Transmission | HW19710(10 forwards & 2 reverses) | |||
Front Axle | 1×HF9 ( 9 Tons) | |||
Driving Axle | HC16, 16Tons | |||
Steering | ZF8118 hydraulic steering with power assistance. | |||
Clutch |
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
|||
Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire | |||
Wheel base | 3625+1350(mm) | |||
Overall dimension | 8145×2496×3140(mm) | |||
Cargo body | 5400×2300×1500(mm),Bottom:8mm, Side:6mm | |||
The curb weight | 12200(Kg) | |||
Gross weight | 25000 kg | |||
Max. speed | 75km/h | |||
Color | White, red, green, golden and so on. |
Applications:
It suiable for Mining industry, Construction business, docks and so on.
Competitive Advantage:
1)with all kinds of truck model, which can fulfil your requirement
2)the key parts adopt the world's top technology products
3)based on strong technical support and top level technology make the trucks with high quality and more reliable
4)Optimized cargo body structure,light weight,high rigidity,large loading capacity
5)Using the high strength steel,it has long service life
6)Optimized the sealing structure has the better sealing effect.
7)The intelligent hydraulic control system helps to avoid error operation, it has higher safety and running efficiency.
8)Multiple box structures and device selections
9)low fuel consumption
10) strong enough engine
11)competive price, cost-effective
12)quick and efficient spare parts supply bring you more convenient
13)fast delivery time, we can arange production according to your needs exactly and quickly
14) professional import and export dealing precedure, make customs clearance more high efficiency
