Place of Origin: | China |
Brand Name: | SINOTRUK |
Certification: | ISO/3C/BV/IFA/SGS |
Model Number: | ZZ1107D3815C1R |
Minimum Order Quantity: | 1Unit |
---|---|
Price: | Negotiation |
Packaging Details: | Waxing in Bulk ship, Roro ship, Container |
Delivery Time: | 10-30 working days |
Supply Ability: | 3,000 units per month |
Chassis: | ZZ1107D3815C1R | Engine: | YN4102QBZL Engine:4102, 116HP, With EURO3 Engine |
---|---|---|---|
Cabin: | 2080, Single And Half Row, With One Berth, With A/C | Transmission: | WLY646,(6 Forwards & 1 Reverses) |
Front Axle: | 2.7Tons | Driving Axle: | 7.2Tons |
High Light: | Light Duty HOWO 4X2 Dump Truck,6 Wheels HOWO 4X2 Dump Truck,HOWO 4X2 Dump Truck 116HP |

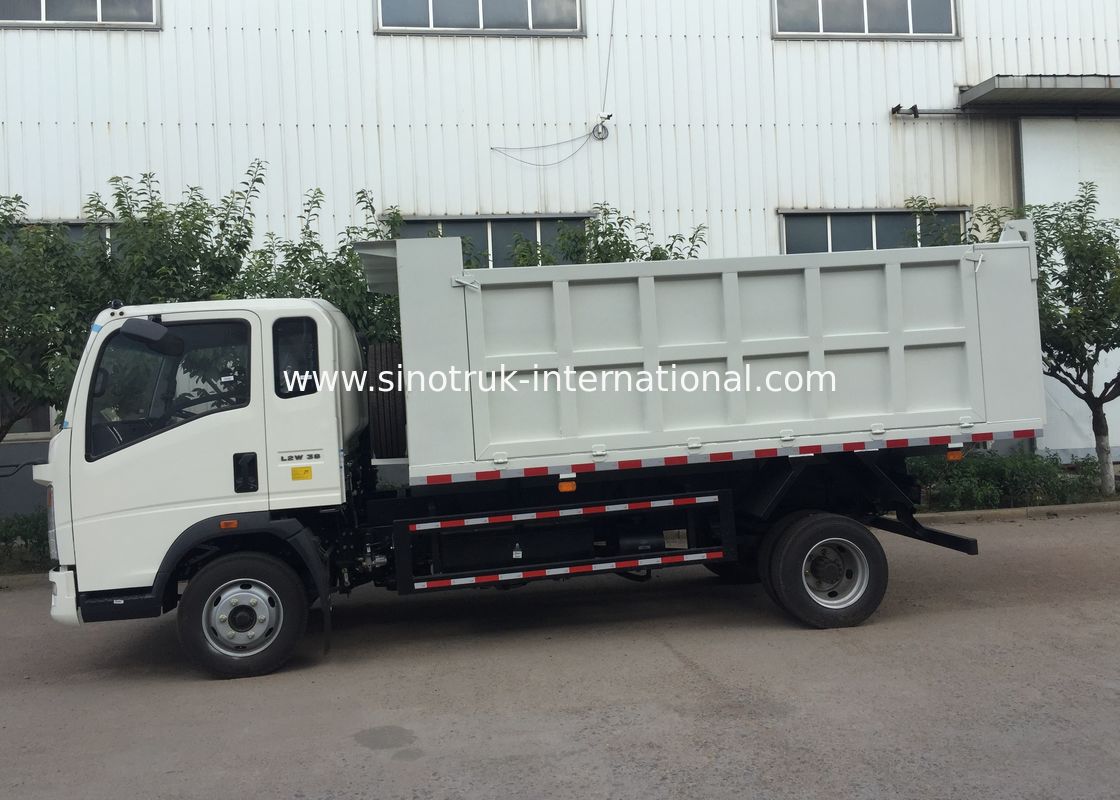

New HOWO 4 X 2 Dump Truck 6 Wheels Light Duty 116HP
HOWO 4X2 Light Duty 116HP Dump Truck
Description:
Sinotruk 4x2 Dump Truck: It is more suitable for short- and medium-distance road transportation. It mainly transports goods such as sand, coal, iron powder, cement, stone, etc. The load capacity is suitable for small tonnage and generally can reach 10-15 tons.
The dump truck is hydraulically lifted, and the lifting methods are divided into two types: middle lift and forward lift. Use middle lift: cylinder stroke is small, cost is low, mechanism height is large, and center of gravity is high. Can be equipped with low bumpers, high bumpers, military bumpers, etc.
Specification:
HOWO 4X2 Light Duty 116HP Dump Truck | ||||
Model | ZZ1107D3815C1R | |||
Drive Type | 4×2 | |||
Engine |
|
|||
Cabin | 2080, single and half row, with one berth,with A/C | |||
Transmission | WLY646,(6 forwards & 1 reverses) | |||
Front Axle | 2.7Tons | |||
Driving Axle | 7.2Tons | |||
Steering | ZF8118 hydraulic steering with power assistance. | |||
Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance | |||
Rim/ Tire | 15/75R17.5 tubeless—plus one spare tyre | |||
Wheel base | 3800(mm) | |||
Overall dimension | 7005*2450*2750 mm | |||
Cargo body | 4200*2200*1200mm,Bottom:4mm, Side:3mm | |||
The curb weight | 4670(Kg) | |||
Gross weight | 8890 kg | |||
Max. speed | 75km/h | |||
Color | White, red, green, golden and so on. |
Applications:
It used for Mining industry, Construction business, docks and so on.
Competitive Advantage:
1)all kinds of cargo body structure can be designed and produced according to your request, make it have light curb weight , high rigidity , high loading capacity
2)using the high strength steel, make it has a long service life
3)The optimized hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
4)excellant apperance of cabin, safety, reliable
5)low fuel consumption
6) strong enough engine
7)with all kinds of truck model, which can fulfil your requirements
8)the key parts adopt the world's top technology products
9)based on strong technical support and top level technology make the trucks with high quality and more reliable
10)competive price, cost-effective
11)quick and efficient spare parts supply bring you more convenient
12)fast delivery time, we can arange production according to your needs exactly and quickly
13) professional import and export dealing precedure, make customs clearance more high efficiency
