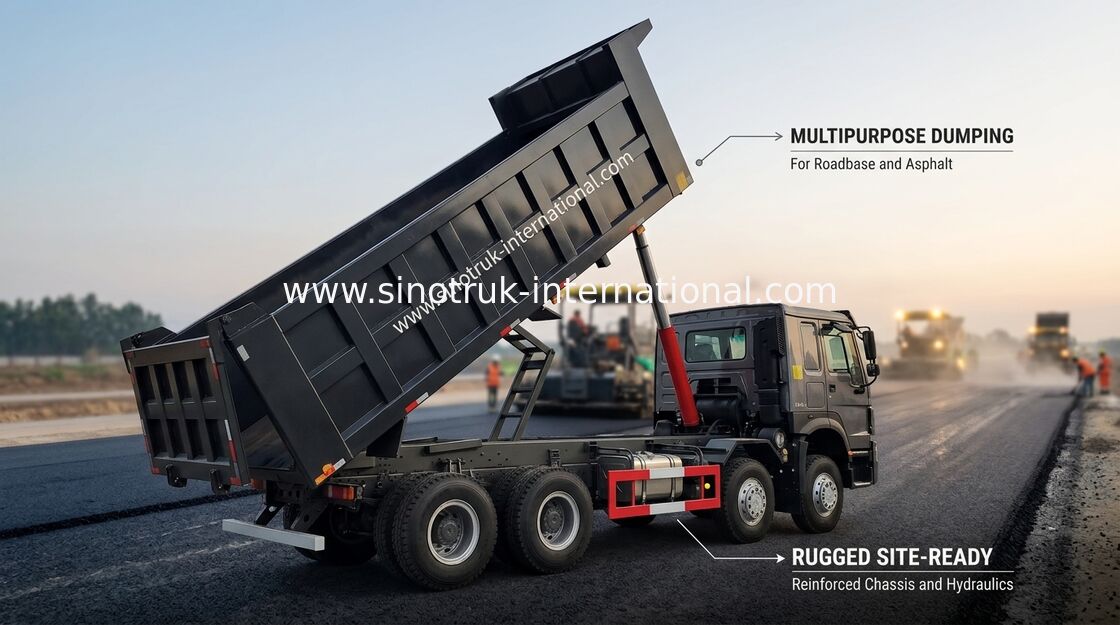

12 Wheels Sinotruk HOWO 8X4 Dump Truck 400hp For Mining

12 Wheels Sinotruk HOWO 8X4 Dump Truck 400hp For Mining

  • 12 Wheels Sinotruk HOWO 8X4 Dump Truck 400hp For Mining
  • 12 Wheels Sinotruk HOWO 8X4 Dump Truck 400hp For Mining
  • 12 Wheels Sinotruk HOWO 8X4 Dump Truck 400hp For Mining
  • 12 Wheels Sinotruk HOWO 8X4 Dump Truck 400hp For Mining
12 Wheels Sinotruk HOWO 8X4 Dump Truck 400hp For Mining
Product Details:
Place of Origin: China
Brand Name: SINOTRUK
Certification: ISO/3C/BV/IFA/SGS
Model Number: ZZ3317V3867B1
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: Negotiation
Packaging Details: Waxing in Bulk ship, Roro ship, Container
Delivery Time: 10-30 working days
Supply Ability: 3,000 units per month
Contact Now
Detailed Product Description
Model: ZZ3317V3867B1 Engine: WP12.400E201 , 400 HP
Drive Type: Right Hand Drive(optional) Steering: BOSCH
Front Axle: 2×VGD95 Driving Axle: 2XHC16
High Light:

12 Wheels HOWO 8X4 Dump Truck

,

HOWO 8X4 Dump Truck For Mining

,

Sinotruk HOWO 8X4 Dump Truck

SINOTRUK HOWO 8×4 12wheels Dump truck 400HP for Mining



Description:



HOWO dump truck, known also as a dumper truck or tipper truck, is used for taking dumps (such as sand, gravel, or demolition waste) for construction as well as coal. A typical HOWO dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic rams to lift the front, allowing the material in the bed to be deposited (dumped) on the ground behind the truck at the site of delivery.







Specifications:


SINOTRUK HOWO 8×4 12wheels Dump truck 400HP for Mining
Model ZZ3317V3867B1
Drive Type 8×4
Engine
WP12.400E201,400 HP( Euro II)
6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine
Displacement : 11.596L
Cabin HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 2×VGD95 ( 9.5 Tons)
Driving Axle 2XHC16, 16Tons
Steering BOSCH
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

air assistance

Rim/ Tire 12.00R20 Radial tire
Wheel base 3825+1350(mm)
Overall dimension 10945×2600×3450(mm)
Cargo body 7800×2300×1500(mm),Bottom:8mm, Side:6mm
The curb weight 12250(Kg)
Gross weight 25000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.


Applications:



working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.



Competitive Advantage:



1) with all kinds of truck model, which can fulfil your requirement
2) the key parts adopt the world's top technology products
3) based on strong technical support and top level technology make the trucks with high quality and more reliable

4) Optimized cargo body structure,light weight,high rigidity,large loading capacity

5) Using the high strength steel,it has long service life

6) Optimized the sealing structure has the better sealing effect.

7) The intelligent hydraulic control system helps to avoid error operation, it has higher safety and running efficiency.

8) Multiple box structures and device selections

9) low fuel consumption
10) strong enough engine

11) competive price, cost-effective
12) quick and efficient spare parts supply bring you more convenient
13) fast delivery time, we can arange production according to your needs exactly and quickly

14) professional import and export dealing precedure, make customs clearance more high efficiency
