Place of Origin: | CHINA |
Brand Name: | HOHAN |
Certification: | ISO/3C/BV/IFA/SGS |
Model Number: | ZZ3317V356JB1 |
Minimum Order Quantity: | 1 unite |
---|---|
Price: | negotiation |
Packaging Details: | Nude or Waxing in Roro or bulk ship |
Delivery Time: | 25-30work days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 3000unites per month |
Total Mass: | 31t | Engine: | WP12.400E201 430 HP |
---|---|---|---|
Overall Dimension: | 9885,10085,10285×2550×3450,3800(mm) | Maximum Speed: | 75 |
Fuel Type: | Diesel | Color: | Red |
Emission Standard: | Euro2 | ||
Highlight: | LHD 8X4 Dump Truck,8X4 Mining Dump Truck,12wheels Mining Dump Truck |
Description:

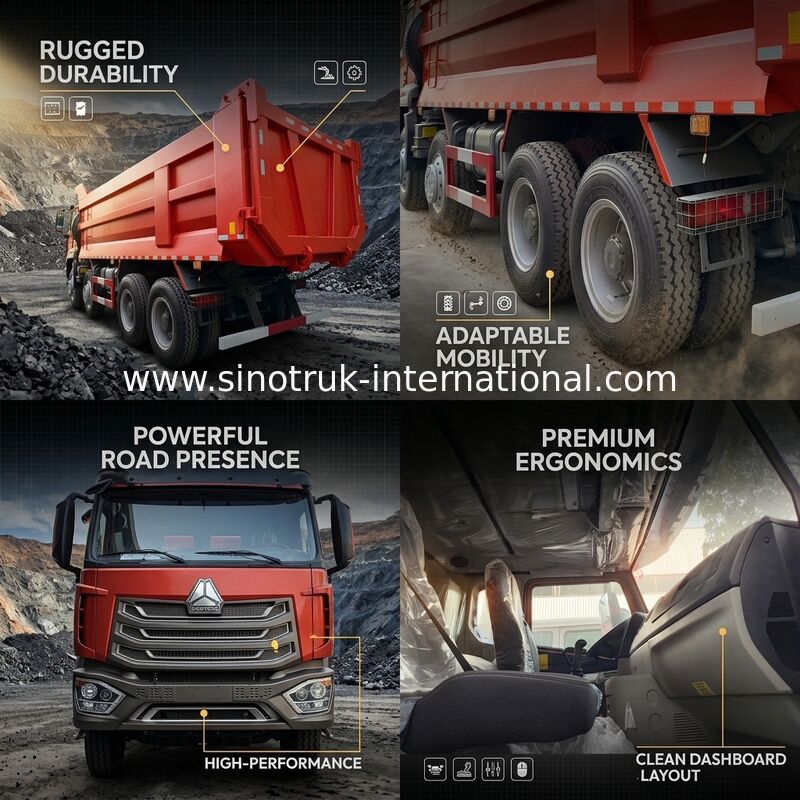

HOHAN LHD 12wheels 8X4 430HP Dump Truck For Mining
This truck is famous in both oversea and domestic,
The overall appearance looks quite classy , and the feel of the car body can please the needs of young people. The front of the air intake and bright strip decoration looks very classy, the front headlights are particularly sharp, especially dazzling when lit up at night. The tail configuration is also rounded planning, the whole is in line with the feeling of heavy tractor, the movement of 12R22.518PR rim, looks more dynamic. In short, superior family planning language highlights the quality of the manufacturer's conscience.
Specifications:
HOHAN LHD 12wheels 8X4 430HP Dump Truck For Mining | ||||
Model | ZZ3317V356JB1 | |||
Drive Type | 8×4 | |||
Engine |
|
|||
Cabin | HOWO N7W lengthened cab(with one sleeper, air-conditioner and new-style seat) | |||
Transmission | HW19710(10 forwards & 2 reverses) | |||
Front Axle | 2×VGD95 ( 9.5 Tons) | |||
Driving Axle | 2XHC16, 16Tons | |||
Steering | BOSCH | |||
Clutch |
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
|||
Rim/ Tire | 12.00R20 Radial tire | |||
Wheel base | 3825+1350(mm) | |||
Overall dimension | 10945×2600×3450(mm) | |||
Cargo body | 7800×2300×1500(mm),Bottom:8mm, Side:6mm | |||
The curb weight | 12250(Kg) | |||
Gross weight | 25000 kg | |||
Max. speed | 75km/h | |||
Color | White, red, green, golden and so on. |
1) with all kinds of truck model, which can fulfil your requirement
2) the key parts adopt the world's top technology products
3) Sinotruk manual transmission is selected for transmission. There is no frustration in daily driving. Thanks to the superb training skills of Sinotruk Haohan, the engine and gearbox cooperate with each other.
4) Throttle response is more positive, do not need to step on the power feedback can also feel, so that the car users feel the essence of the fun control.
5) In terms of comfort, Haohan N7W has made great efforts in creating ride comfort, and the driving space is relatively satisfactory and comfortable enough.
6) Optimized the sealing structure has the better sealing effect.
7) The intelligent hydraulic control system helps to avoid error operation, it has higher safety and running efficiency.
8) Multiple box structures and device selections
9) low fuel consumption and it performs remarkably well for such a large truck
10) strong enough engine
11) competive price, cost-effective
12) quick and efficient spare parts supply bring you more convenient
13) fast delivery time, we can arange production according to your needs exactly and quickly
14) professional import and export dealing precedure, make customs clearance more high efficiency
