Place of Origin: | Jinan Shandong China |
Brand Name: | SINOTRUK HOWO |
Certification: | ISO/3C/BV/IFA/SGS |
Model Number: | ZZ3257N3847A |
Minimum Order Quantity: | 1 Unit |
---|---|
Price: | Negotiation |
Packaging Details: | Nude |
Delivery Time: | 30-45 Working Days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 500 Units Per Month |
Model: | ZZ3257M3847A | Engine: | WD615.47 , 371HP |
---|---|---|---|
Loading Capacity:: | 30 Tons | Cabin: | Left Hand Or Right Hand |
Transmission: | HW19710(10 Forwards & 2 Reverses) | Drive Model:: | 6×4 |
High Light: | 30 Tons 6x4 DUMP TRUCK,30T Loading 6x4 DUMP TRUCK,371 HP TIPPER DUMP TRUCK |

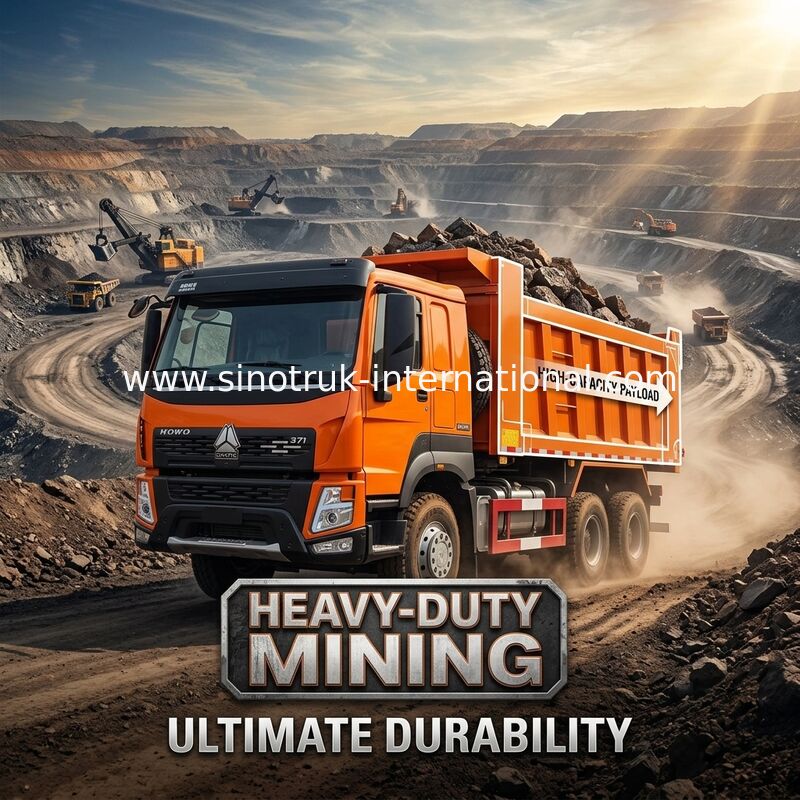

SINOTRUK ORANGE HOWO 371HP 6×4 TIPPER DUMP TRUCK
Detailed Product Discription
Engine Power: | 371 HP | Loading Capacity: | 30 Tons |
---|---|---|---|
Fuel: | Diesel | Lifting System: | Middle Lifting Or Front Lifting |
Drive Model: | 6 * 4 | Cabin: | Left Hand Or Right Hand |
High Light: |
371 HP 10 Wheels Dump Truck,HOWO ZZ3257N3847A,30T Loading 10 Wheels Dump Truck |
SINOTRUK ORANGE HOWO 371HP 6×4 TIPPER DUMP TRUCK
The dump truck has reliable structure, high loading capacity, load 30-40 tons, power from 336HP to 420HP, reliable performance.
The model can meet the construction site and other harsh environment of mining areas. It can meet your mining rock and
Soil and engineering requirements.
The HW76 cab is a European style jointly developed by Chinese heavy truck and Italian Giugiaro Design Company. The appearance of the atmosphere, bold, smooth lines, painting process and top car homogeneity, shaping a noble and beautiful style; Large windshield brings a wider view, rear view mirror beautiful, with electric heating and electric heating practical function, convenient; Electric lifting system, reduce labor intensity, easy maintenance; In addition to complying with the HOWO7 series and Swedish regulations, the cab body and doors also refer to the progress made in recent years, Swedish truck steering wheel, additional high-tech devices, resulting in collision, steering column deformation energy absorption, HOWO7 heavy truck safety performance to reach the top level in the world; The interior configuration of the cab is also reflected in the design concept of comfort and humanity.
Specifications:
SINOTRUK ORANGE HOWO 371 HP 6×4 TIPPER DUMP TRUCK for Construction material loading | ||||
Model | ZZ3257M3847A | |||
Drive Type | 6×4 | |||
Engine |
|
|||
Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat) | |||
Transmission | HW19710(10 forwards & 2 reverses) | |||
Front Axle | 1×HF9 ( 9 Tons) | |||
Driving Axle | HC16, 16Tons | |||
Steering | ZF8118 hydraulic steering with power assistance. | |||
Clutch |
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
|||
Rim/ Tire | 12R22.5,315/80R22.5,13R22.5,12.00R20,12.00R24 Radial tire | |||
Wheel base | 3800+1350(mm) | |||
Overall dimension | 8575×2496×3450(mm) | |||
Cargo body | 5600×2300×1500(mm),Bottom:8mm, Side:6mm | |||
The curb weight | 14200(Kg) | |||
Gross weight | 25000 kg | |||
Max. speed | 75km/h | |||
Color | White, red, green, golden and so on. |
Applications:
Working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.
Competitive Advantage:
1) Various types of trucks to meet your needs
2) Key components adopt the world's top technology products
3) Based on strong technical support and top technology, the truck has high More reliable quality
4) Optimized cargo structure, light weight, high rigidity and large load capacity
5) High strength steel, long service life
6) The optimized sealing structure has better sealing effect.
7) Intelligent hydraulic control system is adopted to avoid misoperation, with higher safety and operability Efficiency.
8) Multiple box structures and equipment selection
9) Low fuel consumption
10) The engine is strong enough
11) Competitive price and high cost performance
12) Fast and efficient supply of spare parts brings you more convenience
13) The delivery time is fast, and we can arrange production accurately and reasonably according to your needs Soon
14) Professional import and export transaction procedures make customs clearance more efficient
