SINOTRUK INTERNATIONAL CO., LTD.
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | HOWO |
| Certification: | ISO/3C/BV/IFA/SGS |
| Model Number: | ZZ3257V3847B1 |
| Minimum Order Quantity: | 1 unite |
|---|---|
| Price: | USD38000-USD42000/UNIT)negotiation |
| Packaging Details: | Nude or Waxing in Roro or bulk ship |
| Delivery Time: | 25-30 days after received your advance payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3000 per month |
| Traction: | Howo 6x4 Dump Truck | Model: | ZZ3257V3847B1 |
|---|---|---|---|
| Engine Model: | WP12.400E201, EuroII Emission Standard | Power: | 400HP |
| Transmission: | HW19710+HW50 | Types: | 12.00R20 |
| Fuel Tank: | 300L | ||
| High Light: | Tipper Dump Truck 10 Wheels,400HP Tipper Dump Truck,LHD HOWO Dump Truck |
||

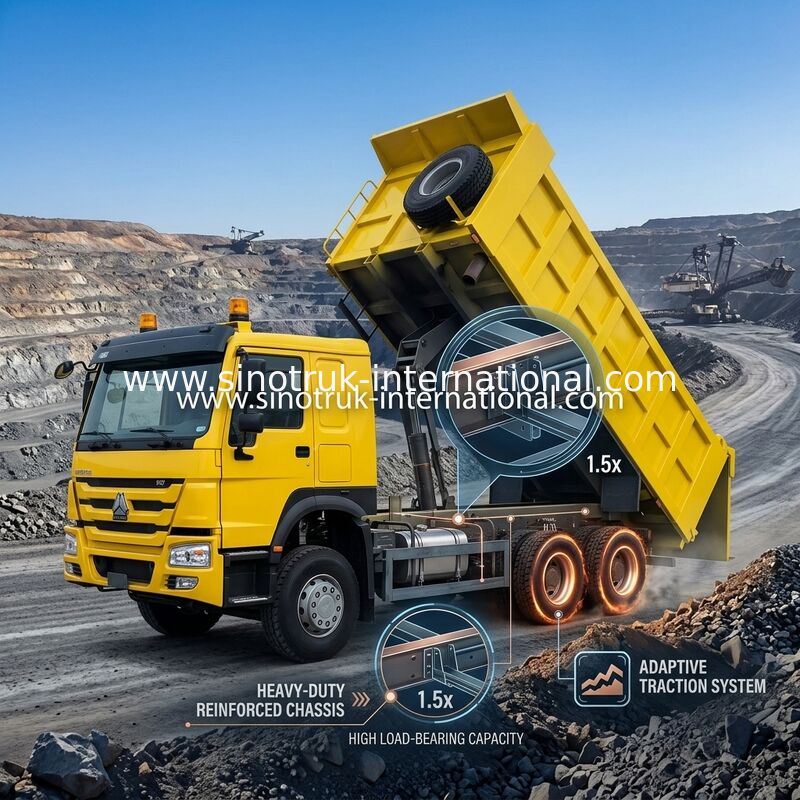

LHD 6×4 10wheels High Horsepower 400HP HOWO Tipper Dump Truck
Description:
This type product , with features of reliable structure , high loading capacity which can
load 30-40tons,strong power from 266HP to 420HP, reliable performance and wide
acceplication.
The HOWO dump truck for seal is one of the advanced trucks by SINOTRUK which was manufactured to meet customer demands and variants.SINOTRUK dumptruck has won the hearts of so many African customers due to its power,stablility,andlow cost of maintenance.
The SINOTRUK LHD 6×4 10 wheels High Horsepower 400HP HOWO Tipper Dump Truck hydraulic sytem using HYVA brand or Domestic famous brand. The optimized hydraulic control system of HOWO N7 dump truck helps to avoid wrong operation,it has higher safety and running effciency.
This model can meet the requirements of severe environment like construction site and mining area.which can fullfiled you of short distance transportation of mining rock and soil as well as engineering construction.
Specifications:
| LHD 6×4 10wheels High Horsepower 400HP HOWO Tipper Dump Truck | ||||
| Model | ZZ3257V3847B1 | |||
| Drive Type | 6×4 | |||
| Engine |
|
|||
| Cabin | HW7D unilateral high strength skeleton cab(with one sleeper, air-conditioner and new-style seat) | |||
| Transmission | HW19710(10 forwards & 2 reverses) | |||
| Front Axle | 1×HF12 ( 12 Tons) | |||
| Driving Axle | AC26, 26Tons | |||
| Steering | ZF8118 hydraulic steering with power assistance. | |||
| Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
|||
| Rim/ Tire | 14.00-25,14.00R25,Radial tire | |||
| Wheel base | 3800+1500(mm) | |||
| Overall dimension | 8700×3300×3670(mm) | |||
| Cargo body | 5800×3100×1600(mm),Bottom:16mm, Side:12mm | |||
| The curb weight | 23000(Kg) | |||
| Gross weight | 70000 kg | |||
| Max. speed | 50km/h | |||
| Color | White, red, green, golden and so on. | |||
Applications:
working for Mining industry, Construction business, docks, transport soil,teel mills, hydropower construction,,poor road conditions, sand, stones and so on.
Competitive Advantage:
1)with all kinds of truck model, which can fulfil your requirement
2)the key parts adopt the world's top technology products
3)based on strong technical support and top level technology make the trucks with high
quality and more reliable
4)Also powerful is its cab body, it adopts beam frame structure, greatly improve the vehicle performance while reducing weight, can meet the stringent European pendulum, forward impact, side impact, top pressure test.
5)Using the high strength steel,it has long service life
6)Optimized the sealing structure has the better sealing effect.
7)The intelligent hydraulic control system helps to avoid error operation, it has higher safety and running
efficiency.
8)Multiple box structures and device selections
9)Not only the pursuit of high efficiency, more attention to low fuel consumption, with a better vehicle system, to create the most efficient domestic engineering car exclusive power chain, with a super wide economic speed range, to bring higher reliability and economy for customers, let customers create more value
10) strong enough engine
11)competive price, cost-effective
12)quick and efficient spare parts supply bring you more convenient
