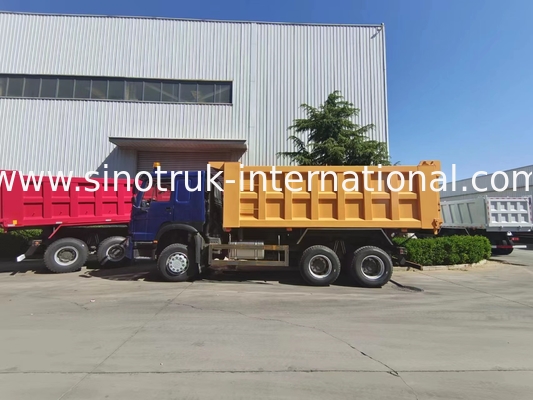

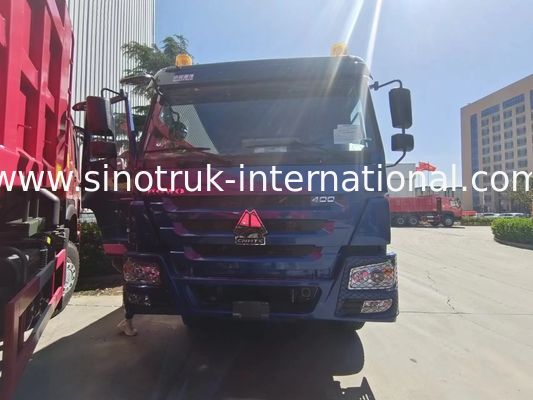

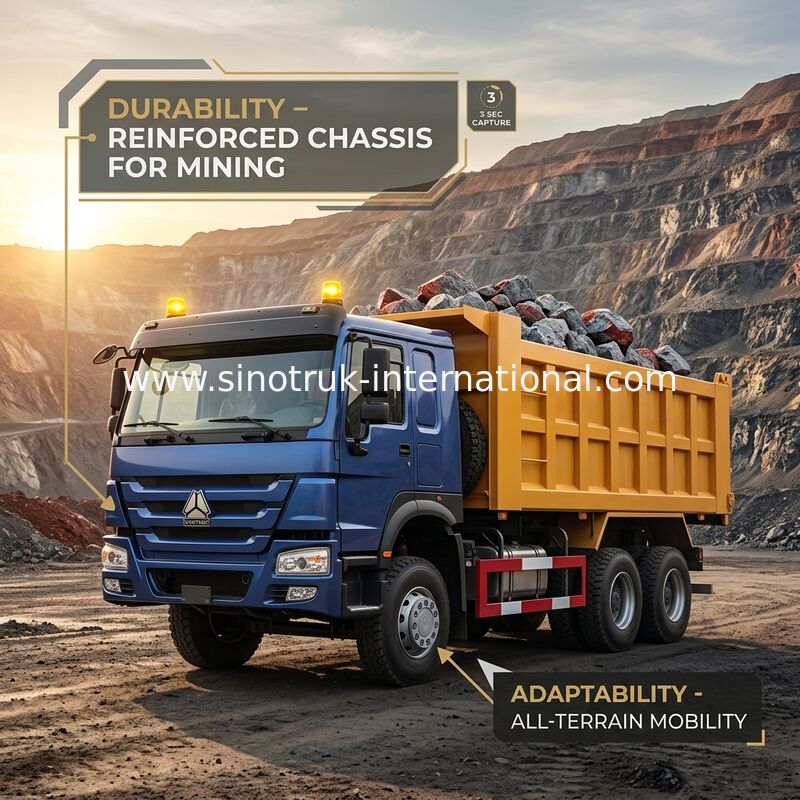

SINOTRUK HOWO Tipper Dump Truck LHD 6×4 400HP

SINOTRUK HOWO Tipper Dump Truck LHD 6×4 400HP

  • SINOTRUK HOWO Tipper Dump Truck LHD 6×4 400HP
  • SINOTRUK HOWO Tipper Dump Truck LHD 6×4 400HP
  • SINOTRUK HOWO Tipper Dump Truck LHD 6×4 400HP
  • SINOTRUK HOWO Tipper Dump Truck LHD 6×4 400HP
SINOTRUK HOWO Tipper Dump Truck LHD 6×4 400HP
Product Details:
Place of Origin: China
Brand Name: SINOTRUK HOWO
Certification: ISO/3C/BV/IFA/SGS
Model Number: ZZ3257V3847B1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 10-30 working days
Payment Terms: L/C, T/T
Supply Ability: 3,000 units per month
Contact Now
Detailed Product Description
Model: ZZ3257V3847B1 Cabin: HOWO76
Engine: WP12.400E201,400HP Drive Type: 6×4
Emission Standard: Euro 2 Transmission: HW19710(10 Forwards & 2 Reverses)
High Light:

SINOTRUK HOWO Tipper Dump Truck

,

RHD 6×4 Tipper Dump Truck

,

Tipper Dump Truck Euro 2

Sinotruk Howo 6 × 4 10 Wheels Tipper Dump Truck 400hp Middle Lifting



Description:



Dump Truck Sinotruk Howo middle lifting 30-40 Tons 6X4 For Construction

This type of product has reliable structure, high carrying capacity, can carry 30-40 tons, power from 266HP to 420HP, reliable performance and wide application range.


Sinotruk HOWO 6X4 dump truck is used for transporting bulk and easy-to-scatter materials (such as sand, pebbles, soil, minerals, etc.). It can load 30-40 tons. Truck models are mainly found in construction sites, mining areas, etc .





Specifications:




Sinotruk Howo 6 × 4 10 Wheels Tipper Dump Truck 400hp Middle Lifting
Model ZZ3257V3847B1
Drive Type 6×4
Engine
WP12.400E201,400HP ( Euro II)
6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine
Displacement : 11.596L
Cabin HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×VGD9 ( 9.5 Tons)
Driving Axle 2XHC16, 16Tons
Steering BOSCH
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

air assistance

Rim/ Tire 12.00R20 Radial tire
Wheel base 3825+1350(mm)
Overall dimension 8345×2600×3350(mm)
Cargo body 5600×2300×1500(mm),Bottom:8mm, Side:6mm
The curb weight 12250(Kg)
Gross weight 25000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.


Applications:



working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.



Competitive Advantage:



1) Various truck models, can meet your requirements
2) The key components adopt the world's top technology products
3) Based on strong technical support and first-class technology, the truck quality is more reliable

4) Optimized cargo body structure, light weight, high rigidity and large load capacity

5) Using high-strength steel, long service life

6) Optimized sealing structure, better sealing effect.

7) Intelligent hydraulic control system to avoid misoperation, higher safety and operating efficiency.

8) A variety of box structures and device options

9) Low fuel consumption
10) Enough powerful engine

11) Competitive price, cost-effective
12) Fast and efficient spare parts supply brings you more convenience
13) Fast delivery time, we can arrange production according to your needs accurately and quickly

14) Professional import and export transaction process makes customs clearance more efficient
