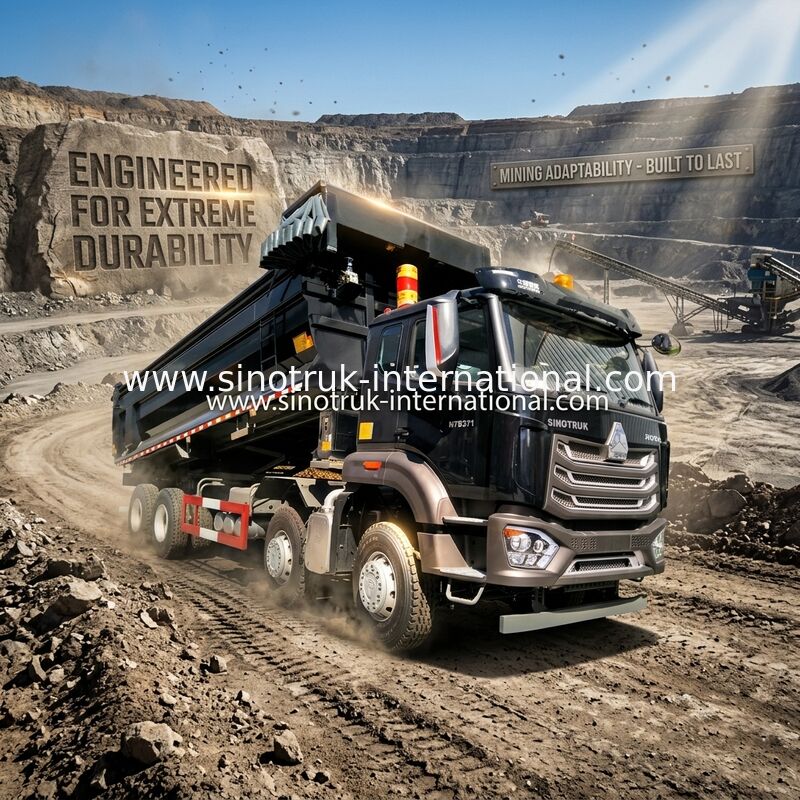

Sinotruk HOWO Tipper Dump Truck 8X4 371hp 12 Wheels Black N7 ZZ3317V386JB1R

Sinotruk HOWO Tipper Dump Truck 8X4 371hp 12 Wheels Black N7 ZZ3317V386JB1R

  • Sinotruk HOWO Tipper Dump Truck 8X4 371hp 12 Wheels Black N7 ZZ3317V386JB1R
  • Sinotruk HOWO Tipper Dump Truck 8X4 371hp 12 Wheels Black N7 ZZ3317V386JB1R
  • Sinotruk HOWO Tipper Dump Truck 8X4 371hp 12 Wheels Black N7 ZZ3317V386JB1R
  • Sinotruk HOWO Tipper Dump Truck 8X4 371hp 12 Wheels Black N7 ZZ3317V386JB1R
Sinotruk HOWO Tipper Dump Truck 8X4 371hp 12 Wheels Black N7 ZZ3317V386JB1R
Product Details:
Place of Origin: China
Brand Name: SINOTRUK
Certification: ISO/3C/BV/IFA/SGS
Model Number: ZZ3317V3867B1R
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: Negotiation
Packaging Details: Waxing in Bulk ship, Roro ship, Container
Delivery Time: 10-30 working days
Supply Ability: 3,000 units per month
Contact Now
Detailed Product Description
Model: ZZ3317V386JB1R Engine: WD615.47 371HP
Drive Type: Drive Type Steering: BOSCH
Front Axle: 2×VGD95 Driving Axle: 2XHC16
High Light:

12 Wheels HOWO TIPPER TRUCK

,

371hp HOWO TIPPER TRUCK

,

Black HOWO TIPPER TRUCK

Sinotruk HOWO Tipper Dump Truck 8X4 371hp 12 Wheels Black N7 ZZ3317V386JB1R



Sinotruk HOWO 8X4 Dump Truck 371hp 12 Wheels Black N7

Description:



HOWO dump trucks, also known as dump trucks or dump trucks, are used to transport construction waste such as sand, gravel or demolition garbage, as well as coal. A typical HOWO dump truck is equipped with an unpacking bed that is hinged to the rear and equipped with a hydraulic slide to lift the front in order to deposit (dump) the site cushion onto the ground behind the truck.

.





Specifications:


Sinotruk HOWO 8X4 Dump Truck 371hp 12 Wheels Black N7
ModelZZ3317V386JB1R
Drive Type8×4
Engine
WD615.47  371HP( Euro II)
6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine
Displacement : 11.596L
CabinN7
TransmissionHW19710(10 forwards & 2 reverses)
Front Axle2×VGD95 ( 9.5 Tons)
Driving Axle2XHC16, 16Tons
SteeringBOSCH
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

air assistance

Rim/ Tire315/80R22.5,12.00R20 18PR,11.00R20
Wheel base3825+1350(mm)
Overall dimension10965×2600×3450(mm)
Cargo body7800×2300×1500(mm),Bottom:8mm, Side:6mm
The curb weight15200(Kg)
Gross weight31000 kg
Max. speed80km/h
ColorWhite, red, green, golden and so on.


Applications:



Applicable to mining, construction, wharf, transport soil, sand, stone and other industries.



Competitive Advantage:


1) with all kinds of truck model, which can fulfil your requirement
2) the key parts adopt the world's top technology products
3) based on strong technical support and top level technology make the trucks with high quality and more reliable
4) Optimized cargo body structure,light weight,high rigidity,large loading capacity
5) Using the high strength steel,it has long service life
6) Optimized the sealing structure has the better sealing effect.
7) The intelligent hydraulic control system helps to avoid error operation, it has higher safety and running efficiency.
8) Multiple box structures and device selections
9) low fuel consumption
10) strong enough engine
11) competive price, cost-effective
12) quick and efficient spare parts supply bring you more convenient
13) fast delivery time, we can arange production according to your needs exactly and quickly
14) professional import and export dealing precedure, make customs clearance more high efficiency
