Place of Origin: | China |
Brand Name: | SINOTRUK |
Certification: | ISO/3C/BV/IFA/SGS |
Model Number: | ZZ5907V414L |
Minimum Order Quantity: | 1 Unit |
---|---|
Price: | Negotiation |
Packaging Details: | Nude or Waxing in Roro or bulk ship |
Delivery Time: | 10-30 working days |
Payment Terms: | T/T, L/C |
Supply Ability: | 3,000 units per month |
Product Name: | Tipper Dump Truck | Model: | ZZ5907V414L |
---|---|---|---|
Drive Type: | LHD 6X4 | Emission Standard: | Euro 2 |
Engine: | WD615.47, 371HP | Loading Capacity: | 70 Tons |
Highlight: | 6X4 LHD Tipper Dump Truck,Mining Tipper Dump Truck,371HP Tipper Dump Truck |

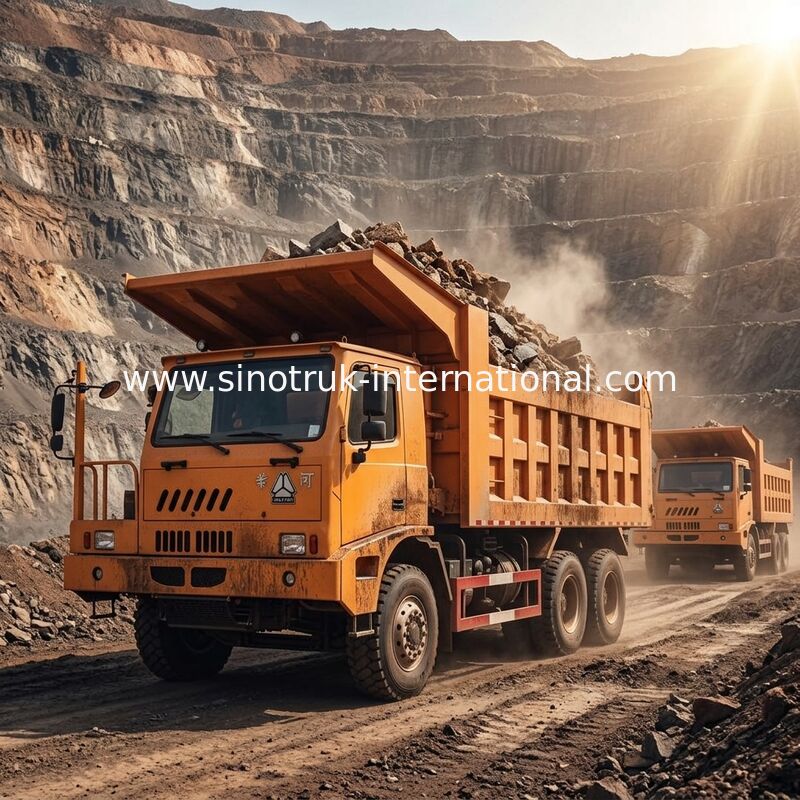

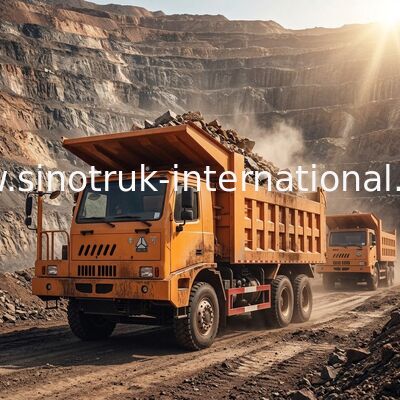

Mining Tipper Dump Truck 6X4 LHD 371HP 70 tons SINOTRUK HOWO for Mining industry
Description:
Sinotruk Howo 6X4 LHD 371HP 70 Ton Mining Dump Truck
SINOTRUK has independently researched and developed a new type of front axle assembly, which applies integral casting twisted beams and reinforced 500x210 brake truck parts assembly technology.
The rear axle adopts AC26 mining drive axle, the main reducer structure design is more reasonable, and the reinforced cast iron axle housing and drum brake make the vehicle load capacity and braking capacity on a national level.
Equipped with HW19710 gearbox, HW70 force, torque up to 700NM.
Equipped with 500 liter D-type fuel tank (400 liter fuel tank is optional), meeting your requirements for vehicle workload.
Wheel tires: 10.0/2-25 wheel set, 14.00-25-36PR standard tires, 14.00R25-36PR original tires, special high-load, high-wear tires specially customized for Mine Overlord.
HOWO mining dump truck adopts single-side high-strength skeleton cabin, which has simple and sturdy shape and wide vision; good sealing can ensure that your vehicle is always in a safe and comfortable driving environment; there are two lights in the front and rear of the cabin, for night work.
Specification:
Mining Tipper Dump Truck 6X4 LHD 371HP 70 tons SINOTRUK HOWO for Mining industry | ||||
Model | ZZ5907V414L | |||
Drive Type | 6×4 | |||
Engine |
|
|||
Cabin | HW7D unilateral high strength skeleton cab(with one sleeper, air-conditioner and new-style seat) | |||
Transmission | HW19710(10 forwards & 2 reverses) | |||
Front Axle | 1×HF12 ( 12 Tons) | |||
Driving Axle | AC26, 26Tons | |||
Steering | ZF8118 hydraulic steering with power assistance. | |||
Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance | |||
Rim/ Tire | 14.00-25,14.00R25,Radial tire | |||
Wheel base | 3800+1500(mm) | |||
Overall dimension | 8700×3300×3670(mm) | |||
Cargo body | 5800×3100×1600(mm),Bottom:16mm, Side:12mm | |||
The curb weight | 23000(Kg) | |||
Gross weight | 70000 kg | |||
Max. speed | 50km/h | |||
Color | White, red, green, golden and so on. |
Applications:
HOWO 70 Mining Dump Truck is heavy concentrated engineering design personnel and development, first and foremost applies to all kinds of open pit coal mine, steel mills, hydropower construction, dock, poor road conditions, homework is in bad situations in areas within a short distance transport business development of this car, in terms of the particular user groups, with high economic benefit and social benefit.
Competitive Advantage:
1) Competitive price, cost effective
2) Low fuel consumption
3) a sufficiently powerful motor
4) All kinds of truck models can meet your requirements
5) To manufacture high quality trucks based on strong technical support and high level technology.
quality and reliability
6) Front lifting type domestic advanced hydraulic control system helps to avoid operation errors.
7) Main parts adopt the world's top technology products
8) All kinds of cargo body structures can be designed and produced according to your requirements, which gives it light curb weight, high rigidity and strong load capacity
9) Using high strength steel to ensure long service life
driving safety and efficiency.
10) Cabin, safe, reliable and excellent appearance
11) Fast and efficient spare parts supply brings you more convenience
12) Fast delivery time, we can arrange production exactly according to your requirements
quickly
