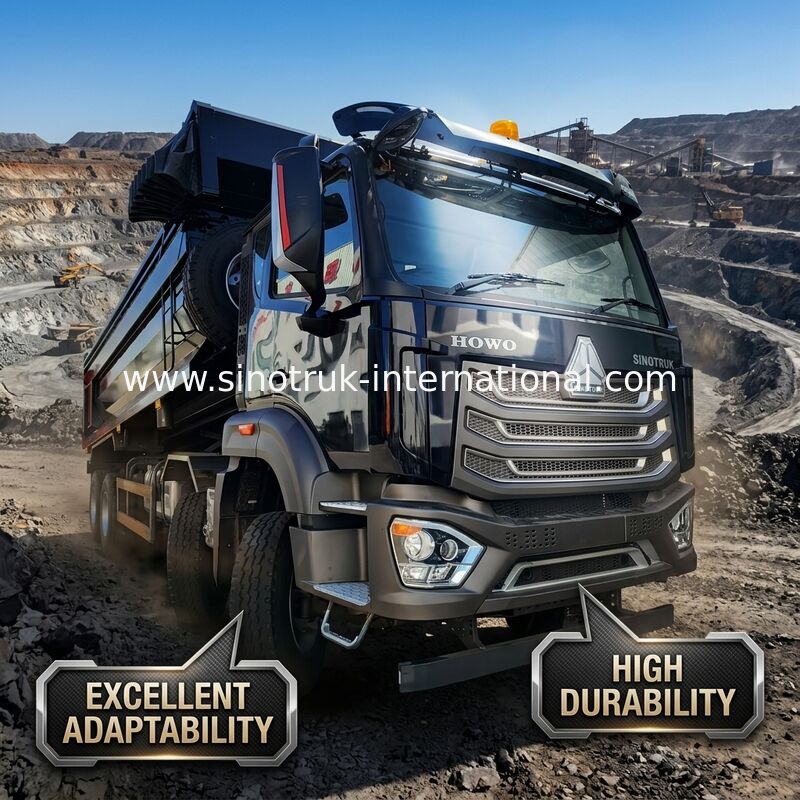

LHD 8×4 10wheels HOWO Tipper Dump Truck High Horsepower 371HP

LHD 8×4 10wheels HOWO Tipper Dump Truck High Horsepower 371HP

  • LHD 8×4 10wheels HOWO Tipper Dump Truck High Horsepower 371HP
  • LHD 8×4 10wheels HOWO Tipper Dump Truck High Horsepower 371HP
  • LHD 8×4 10wheels HOWO Tipper Dump Truck High Horsepower 371HP
  • LHD 8×4 10wheels HOWO Tipper Dump Truck High Horsepower 371HP
LHD 8×4 10wheels HOWO Tipper Dump Truck High Horsepower 371HP
Product Details:
Place of Origin: China
Brand Name: HOWO
Certification: ISO/3C/BV/IFA/SGS
Model Number: ZZ3317V386JB1R
Payment & Shipping Terms:
Minimum Order Quantity: 1 unite
Price: negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25-30 days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 per month
Contact Now
Detailed Product Description
Product Name: HOWO Tipper Dump Truck Model: ZZ3317V386JB1R
Color: Black Engine Output: 371HP
Drive Typr: 8×4 LHD Engine: WD615.47, 371HP
Emission Standard: Euro 2
High Light:

LHD Sinotruk Howo 8x4 Tipper Truck

,

10wheels Sinotruk Howo Tipper Truck

,

Tipper Dump Truck High Horsepower

LHD 8×4 10wheels High Horsepower 371HP HOWO Tipper Dump Truck



SINOTRUK HOWO Tipper Dump Truck 371HP 8x4 RHD 60-70tons 20-35CBM for Mininig using



Description:



SINOTRUK HOWO Tipper Dump Truck 371HP 8x4 RHD 60-70tons 20-35CBM for Mininig using

Both the technical department or sales staff, during the interview, China heavy staff sincerely revealed when their own hands to create high-end heavy truck is recognized by the market after the joy of love. But most of them are proud of, many other domestic manufacturers no batch assembly high-end configuration, is China heavy truck the first batch assembly listed and recognized.



"HOWO top than the J6, Dongfeng Tianlong to your 20 thousand yuan, prices have higher truth." in Germany that China heavy trucks and cars like the style have to distinguish between European and Japanese, South Road, the road twists and turns, more users, more love of Japanese style Valin, Auman, Northern Europe more accepting of technology HOWO A7, and HOWO A7 is representative of the domestic European high-end heavy truck at present, the AMT transmission and SartShift intelligent tiptronic transmission system, front disc brake disc and drum of these high-end technology was one of the first HOWO A7 batch assembly, as users relish the most love the configuration.



According to the heavy vehicle industry sources, currently there are some heavy truck enterprises are also actively developing the automatic transmission, there are only a few hours before the assembly, brake drum, heavy truck, only Chinese. In the market, leading to market China heavy duty automatic transmission products, like the original EGR, which itself spawned and in the popularity of high-end Chinese heavy vehicle technology upgrade.





Specification:



SINOTRUK HOWO Tipper Dump Truck 371HP 8x4 RHD 60-70tons 20-35CBM for Mininig using
Model ZZ3317N386JB1R
Drive Type 8×4
Engine
WD615.47 , 371HP( Euro II)
6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine
Displacement : 9.726L
Cabin HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

air assistance

Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 1800+3800+1350(mm)
Overall dimension 10445×2496×3450(mm)
Cargo body 7800×2300×1500(mm),Bottom:8mm, Side:6mm
The curb weight 15120(Kg)
Gross weight 31000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.




Applications:



It used for Mining industry, Construction business, docks and so on.



Competitive Advantage:



1) Good quality

2) competitive price

3)usually choose the standard cargo body structure
4)using the good quality steel plate, make it has a long service life
5)The optimized hydraulic control system helps to avoid wrong operation, it has higher

safety and running efficiency.
6)excellant apperance of cabin, safety, reliable

7)competive price, cost-effective
8)quick and efficient spare parts supply bring you more convenient

9The strength of the container can handle the loading of high density mobile cargo

10) professional import and export dealing precedure, make customs clearance more high efficiency

11) low fuel consumption
12) The lifting system adopted by this vehicle is sleeve type front cylinder. The lifting and lowering of cargo car have certain stability, and the operation time is appropriate
13)with all kinds of truck model, which can fulfil your requirements
14)the key parts adopt the world's top technology products
15)based on strong technical support and top level technology make the trucks with high

quality and more reliable

16) The car with ABS brake anti-lock system, automatic brake clearance adjustment arm and air brake safety configuration, can let users easily cope with complex operating road conditions              LHD 8×4 10wheels HOWO Tipper Dump Truck High Horsepower 371HP 0LHD 8×4 10wheels HOWO Tipper Dump Truck High Horsepower 371HP 1
