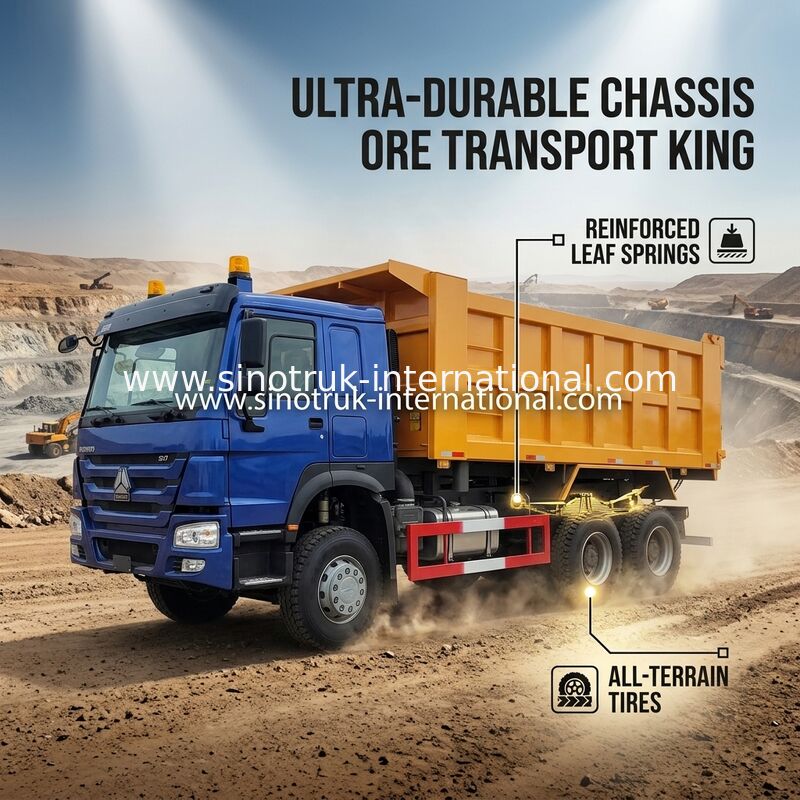

High Horsepower 400HP HOWO Tipper Dump Truck LHD 6×4 10 Wheels

High Horsepower 400HP HOWO Tipper Dump Truck LHD 6×4 10 Wheels

  • High Horsepower 400HP HOWO Tipper Dump Truck LHD 6×4 10 Wheels
  • High Horsepower 400HP HOWO Tipper Dump Truck LHD 6×4 10 Wheels
  • High Horsepower 400HP HOWO Tipper Dump Truck LHD 6×4 10 Wheels
  • High Horsepower 400HP HOWO Tipper Dump Truck LHD 6×4 10 Wheels
High Horsepower 400HP HOWO Tipper Dump Truck LHD 6×4 10 Wheels
Product Details:
Place of Origin: China
Brand Name: HOWO
Certification: ISO/3C/BV/IFA/SGS
Model Number: ZZ3257V3847B1
Payment & Shipping Terms:
Minimum Order Quantity: 1 unite
Price: negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25-30 days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 per month
Contact Now
Detailed Product Description
Product Name: HOWO Tipper Truck Model: ZZ3257V3847B1
Engine: WP12.400E201 Engine Output、: 400HP
Drive Tyoe: 6×4 LHD Front Axle: 1×HF9 ( 9 Tons)
High Light:

LHD sinotruk howo 6x4 tipper truck

,

400HP sinotruk howo 6x4 tipper truck

,

High Horsepower HOWO Tipper Truck

LHD 6×4 10wheels High Horsepower 400HP HOWO Tipper Dump Truck



SINOTRUK HOWO 6x4 400HP LHD Dump Truck for Construction, Mining using





Description:

Tipper Truck SINOTRUK HOWO Front Lifting 30 - 40tons LHD 6X4 for Construction

This type product , with features of reliable structure , high loading capacity which can

load 30-40tons,strong power from 266HP to 420HP, reliable performance and wide acceplication.



This model can meet the requirements of severe environment like construction site and

mining area.which can fullfiled you of short distance transportation of mining rock and

soil as well as engineering construction.



HOWO70 cab is China heavy truck and Italy Giugiaro design companies jointly developed by European style. The appearance of the atmosphere, bold, smooth lines, painting process and top car homogeneous, shaping a noble and beautiful beautiful style; a large windscreen brings a broader perspective, the rearview mirror is beautiful, with electric and electric heating the utility function, convenient; electric lifting system and reduce the labor intensity, convenient maintenance; cab body and door in addition to adhering to the HOWO7 series with the Swedish regulations, but also with reference to the improvement of the achievements in recent years, the Swedish truck steering wheel, additional new high-tech devices, resulting in the crash when hit, the steering column deformation energy absorption, the the safety performance of HOWOA7 heavy truck reached the world top level; the internal configuration of the cab is also reflected in the comfortable and humanized design idea of convenience.





Specifications:




SINOTRUK HOWO Dump Truck 30 - 40tons RHD 6X4 for Construction material loading
Model ZZ3257V3847B1
Drive Type 6×4
Engine
WD615.69 , 336 HP( Euro II)
6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine
Displacement : 9.726L
Cabin HW70 lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle 2XHC16, 16Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

air assistance

Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3425+1350(mm)
Overall dimension 7835×2496×3170(mm)
Cargo body 5200×2300×1200(mm),Bottom:8mm, Side:6mm
The curb weight 12380(Kg)
Gross weight 25000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.


Applications:



working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.



Competitive Advantage:



1)with all kinds of truck model, which can fulfil your requirement
2)the key parts adopt the world's top technology products
3)based on strong technical support and top level technology make the trucks with high

quality and more reliable

4)The protection plate of the intercooler is designed with 5mm thick stamped steel plate and soil guide groove. With adjustable front and bottom protection, it can also remove obstacles in bad working conditions

5)Can ensure a cleaner source of air

6)Optimized the sealing structure has the better sealing effect.

7)The engine has higher reliability, lower fuel consumption and stronger adaptability to complex working conditions such as self-unloading

8)Multiple box structures and device selections

9)low fuel consumption
10) strong enough engine

11)competive price, cost-effective
12)
Meet the safety and comfort at the same time and reduce the loss of brake pad
13)fast delivery time, we can arange production according to your needs exactly and

quickly

14) professional import and export dealing precedure, make customs clearance more high efficiencyHigh Horsepower 400HP HOWO Tipper Dump Truck LHD 6×4 10 Wheels 0High Horsepower 400HP HOWO Tipper Dump Truck LHD 6×4 10 Wheels 1
