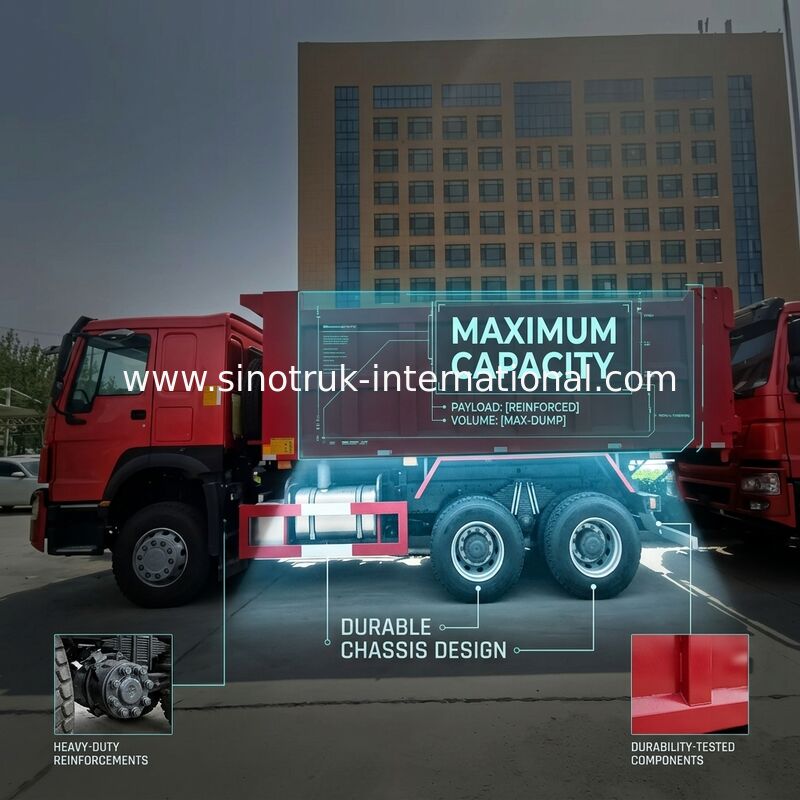

SINOTRUK HOWO Tipper Dump Truck RHD 6×4 336HP In Red Colour

SINOTRUK HOWO Tipper Dump Truck RHD 6×4 336HP In Red Colour

  • SINOTRUK HOWO Tipper Dump Truck RHD 6×4 336HP In Red Colour
  • SINOTRUK HOWO Tipper Dump Truck RHD 6×4 336HP In Red Colour
  • SINOTRUK HOWO Tipper Dump Truck RHD 6×4 336HP In Red Colour
  • SINOTRUK HOWO Tipper Dump Truck RHD 6×4 336HP In Red Colour
SINOTRUK HOWO Tipper Dump Truck RHD 6×4 336HP In Red Colour
Product Details:
Place of Origin: China
Brand Name: SINOTRUK HOWO
Certification: ISO/3C/BV/IFA/SGS
Model Number: ZZ3257V3647B1
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD46000-USD46500/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T
Supply Ability: 3,000 units per month
Contact Now
Detailed Product Description
Model: ZZ3257V3647B1 Cabin: HOWO76
Engine: WD315.69 336HP Drive Type: 6×4
Emission Standard: Euro 2 Transmission: HW19710(10 Forwards & 2 Reverses)
High Light:

Red sinotruk howo 6x4 tipper truck

,

336HP sinotruk howo 6x4 tipper truck

,

Euro 2 Emission Tipper Dump Truck

SINOTRUK HOWO Tipper Dump Truck RHD 6×4 336HP In Red Colour

Sinotruk Howo 6 × 4 10 Wheels Tipper Dump Truck 336hp Middle Lifting



Description:



Dump Truck Sinotruk Howo 30-40 Tons 6X4 For Construction

This type of product has reliable structure, high carrying capacity, can carry 30-40 tons, power from 266HP to 420HP, reliable performance and wide application range.


Sinotruk HOWO 6X4 dump truck is used for transporting bulk and easy-to-scatter materials (such as sand, pebbles, soil, minerals, etc.). It can load 30-40 tons. Truck models are mainly found in construction sites, mining areas, etc.





Specifications:




Sinotruk Howo 6 × 4 10 Wheels Tipper Dump Truck 336hp Middle Lifting
Model ZZ3257V3647B1
Drive Type 6×4
Engine
WD315.69 336HP ( Euro II)
6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine
Displacement : 11.596L
Cabin HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×VGD9 ( 9.5 Tons)
Driving Axle 2XHC16, 16Tons
Steering BOSCH
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

air assistance

Rim/ Tire 12.00R20 Radial tire
Wheel base 3825+1350(mm)
Overall dimension 8345×2600×3350(mm)
Cargo body 5600×2300×1500(mm),Bottom:8mm, Side:6mm
The curb weight 12250(Kg)
Gross weight 25000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.


Applications:



working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.



Competitive Advantage:

1) Multiple truck models available with top-of-the-line technology for main components
2) Reliable quality with strong technical support and first-class technology
3) Optimized platform structure for light weight, high rigidity, and large carrying capacity
4) Made with durable high-strength steel and enhanced sealing structure
5) Equipped with intelligent hydraulic control system for safety and work efficiency
6) Multifunctional cabinet structure and equipment options available
7) Powerful engine with low fuel consumption for cost efficiency
8) Competitive pricing with fast and efficient spare parts supply
9) Quick delivery with production arranged according to customer needs
10) Professional import and export transaction process for efficient customs clearance.
