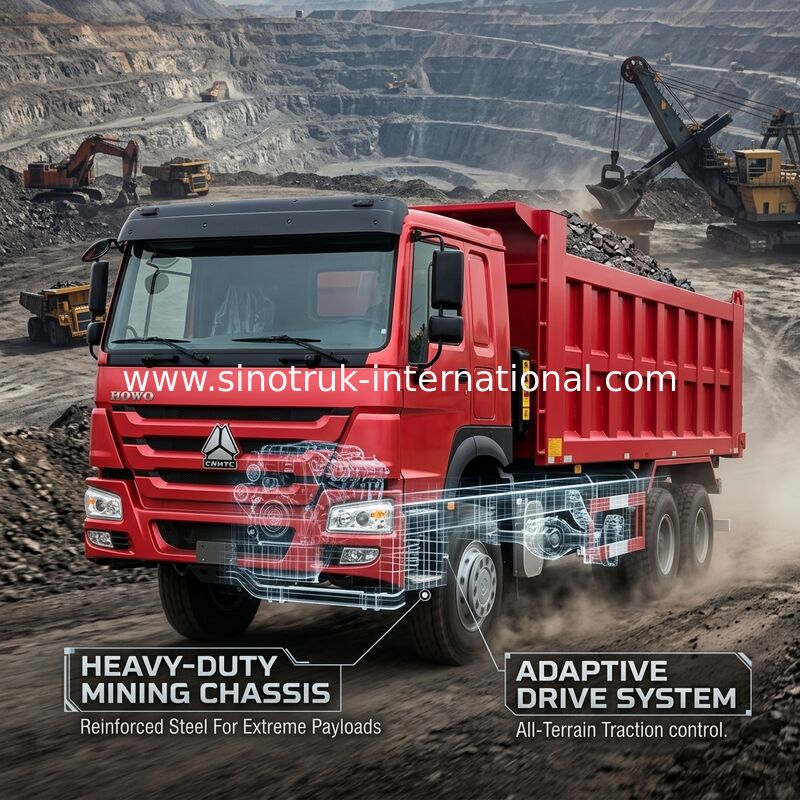

Sinotruk Howo Tipper Dump Truck 12Wheels 400Hp 8 × 4 Mining

Sinotruk Howo Tipper Dump Truck 12Wheels 400Hp 8 × 4 Mining

  • Sinotruk Howo Tipper Dump Truck 12Wheels 400Hp 8 × 4 Mining
  • Sinotruk Howo Tipper Dump Truck 12Wheels 400Hp 8 × 4 Mining
  • Sinotruk Howo Tipper Dump Truck 12Wheels 400Hp 8 × 4 Mining
  • Sinotruk Howo Tipper Dump Truck 12Wheels 400Hp 8 × 4 Mining
Sinotruk Howo Tipper Dump Truck 12Wheels 400Hp 8 × 4 Mining
Product Details:
Place of Origin: China
Brand Name: SINOTRUK
Certification: ISO/3C/BV/IFA/SGS
Model Number: ZZ3317V3867B1
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: Negotiation
Packaging Details: Waxing in Bulk ship, Roro ship, Container
Delivery Time: 10-30 working days
Supply Ability: 3,000 units per month
Contact Now
Detailed Product Description
Model: ZZ3317V3867B1 Engine: WP12.400E201 , 400 HP
Drive Type: 8×4 LHD Steering: BOSCH Or China Brand
Front Axle: 2×VGD95 Driving Axle: 2XHC16
High Light:

400Hp sinotruk howo 8x4 tipper truck

,

LHD 8x4 Tipper Dump Truck

,

400Hp Engine Tipper Dump Truck

Sinotruk Howo Tipper Dump Truck 12Wheels 400Hp 8 × 4 Mining



Description:



Dumper refers to a vehicle that unloads goods by itself through hydraulic or mechanical lifting. It is also called dumper. It is composed of automobile chassis, hydraulic lifting mechanism, cargo box, power take-off device and other components. With its excellent bearing capacity and high reliability, the truck has won market recognition.
Heavy duty howo 8x4 dump 12 wheeler truck has outstanding fuel economy, light weight, superior power performance, stable and reliable performance, and has a variety of personalized configuration options, beautiful cab, safe and comfortable.
It meets the requirements of harsh environment such as construction site and mining area, and is suitable for earthwork and engineering construction in short-distance mines.







Specifications:


Sinotruk Howo Tipper Dump Truck 12Wheels 400Hp 8 × 4 Mining
Model ZZ3317V3867B1
Drive Type 8×4
Engine
WP12.400E201,400 HP( Euro II)
6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine
Displacement : 11.596L
Cabin HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 2×VGD95 ( 9.5 Tons)
Driving Axle 2XHC16, 16Tons
Steering BOSCH or China brand
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

air assistance

Rim/ Tire 12.00R20 Radial tire
Wheel base 3825+1350(mm)
Overall dimension 10945×2600×3450(mm)
Cargo body 7800×2300×1500(mm),Bottom:8mm, Side:6mm
The curb weight 15480(Kg)
Gross weight 31000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.


Applications:



working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.



Competitive Advantage:



1) with all kinds of truck model, which can fulfil your requirement
2) the key parts adopt the world's top technology products
3) based on strong technical support and top level technology make the trucks with high quality and more reliable

4) Optimized cargo body structure,light weight,high rigidity,large loading capacity

5) Using the high strength steel,it has long service life

6) Optimized the sealing structure has the better sealing effect.

7) The intelligent hydraulic control system helps to avoid error operation, it has higher safety and running efficiency.

8) Multiple box structures and device selections

9) low fuel consumption
10) strong enough engine

11) competive price, cost-effective
12) quick and efficient spare parts supply bring you more convenient
13) fast delivery time, we can arange production according to your needs exactly and quickly

14) professional import and export dealing precedure, make customs clearance more high efficiencySinotruk Howo Tipper Dump Truck 12Wheels 400Hp 8 × 4 Mining 0Sinotruk Howo Tipper Dump Truck 12Wheels 400Hp 8 × 4 Mining 1
