Place of Origin: | China |
Brand Name: | HOWO |
Certification: | ISO/3C/BV/IFA/SGS |
Model Number: | ZZ3257V384JB1 |
Minimum Order Quantity: | 1 unite |
---|---|
Price: | negotiation |
Packaging Details: | Nude or Waxing in Roro or bulk ship |
Delivery Time: | 25-30 days after received your advance payment |
Payment Terms: | L/C, T/T |
Supply Ability: | 3000 per month |
Model: | ZZ3257V384JB1 | Color: | White |
---|---|---|---|
Engine Outout: | 400HP | Engine: | WP12.400E201,400HP |
Drive Type: | LHD 6×4 | Emission Standard: | Euro 2 |
High Light: | LHD 6×4 howo dump truck,howo 6x4 dump truck 400HP,Euro 2 dump truck 6x4 |

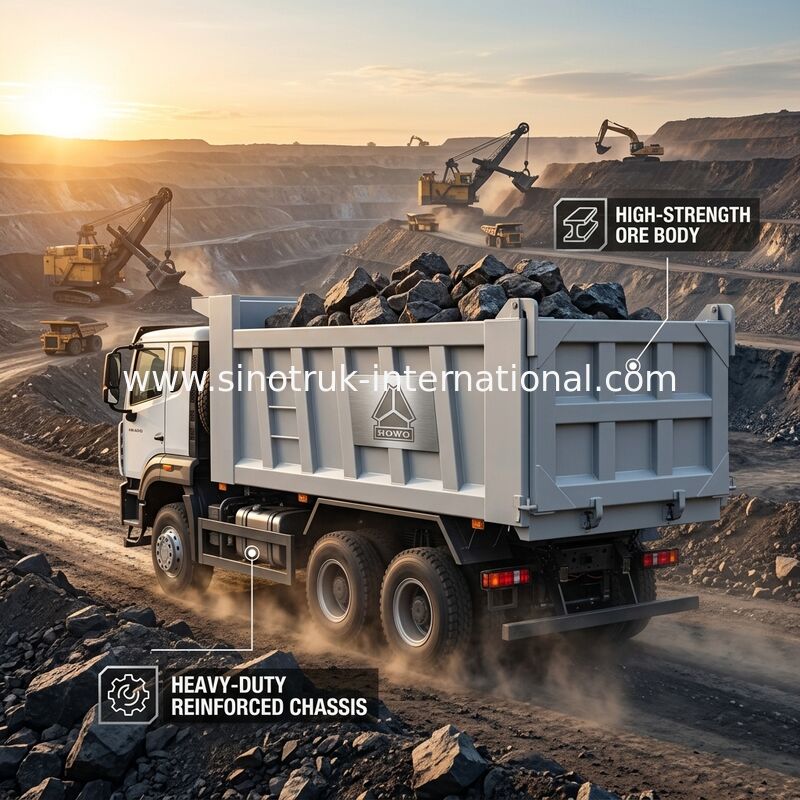

LHD 6×4 10wheels High Horsepower 400HP HOWO White Tipper Dump Truck
Sinotruk Howo 6 × 4 10 Wheels Tipper Dump Truck 400hp
Description:
Dump Truck Sinotruk Howo middle lifting 30-40 Tons 6X4 For Construction
This type of product has reliable structure, high carrying capacity, can carry 30-40 tons, power from 266HP to 420HP, reliable performance and wide application range.
Sinotruk HOWO 6X4 dump truck is used for transporting bulk and easy-to-scatter materials (such as sand, pebbles, soil, minerals, etc.). It can load 30-40 tons. Truck models are mainly found in construction sites, mining areas, etc.
Specifications:
Sinotruk Howo 6 × 4 10 Wheels Tipper Dump Truck 400hp Middle Lifting | ||||
Model | ZZ3257V384JB1 | |||
Drive Type | 6×4 | |||
Engine |
|
|||
Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat) | |||
Transmission | HW19710(10 forwards & 2 reverses) | |||
Front Axle | 1×VGD9 ( 9.5 Tons) | |||
Driving Axle | 2XHC16, 16Tons | |||
Steering | BOSCH | |||
Clutch |
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
|||
Rim/ Tire | 12.00R20 Radial tire | |||
Wheel base | 3825+1350(mm) | |||
Overall dimension | 8345×2600×3350(mm) | |||
Cargo body | 5600×2300×1500(mm),Bottom:8mm, Side:6mm | |||
The curb weight | 12250(Kg) | |||
Gross weight | 25000 kg | |||
Max. speed | 75km/h | |||
Color | White, red, green, golden and so on. |
Applications:
working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.
Competitive Advantage:
1) Various truck models, can meet your requirements
2) The key components adopt the world's top technology products
3) Adopt the main box double intermediate shaft helical teeth, auxiliary box planetary gear design structure, has excellent NVH performance, low noise, good ride
4) Optimized cargo body structure, light weight, high rigidity and large load capacity
5) Using high-strength steel, long service life
6) Optimized sealing structure, better sealing effect.
7) The bumper is a three-stage all-metal design, each of which is 2mm thick stamped steel for a strong feeling
8) A variety of box structures and device options
9) Low fuel consumption
10) Enough powerful engine
11) Competitive price, cost-effective
12) Fast and efficient spare parts supply brings you more convenience
13) The beam frame structure greatly improves the vehicle performance while reducing weight, and can meet the stringent European pendulum, forward impact, side impact and top pressure tests.
14) Professional import and export transaction process makes customs clearance more efficient
