SINOTRUK INTERNATIONAL CO., LTD.
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | SINOTRUK |
| Certification: | ISO/3C/BV/IFA/SGS |
| Model Number: | ZZ3257V384JB1 |
| Minimum Order Quantity: | 1Unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Waxing in Bulk ship, Roro ship, Container |
| Delivery Time: | 10-30 working days |
| Supply Ability: | 3,000 units per month |
| Model: | ZZ3257V384JB1 | Engine: | WP12.400E201,400HP |
|---|---|---|---|
| Drive Type: | 6×4 | Steering: | China Brand |
| Cab: | H77L (with One Sleeper, Air-conditioner And New-style Seat) | Transmission: | HW19710(10 Forwards & 2 Reverses) |
| High Light: | Sinotruk N7 Tipper Dump Truck,400Hp sinotruk tipper truck,6x4 Tipper Truck With Warning Light |
||

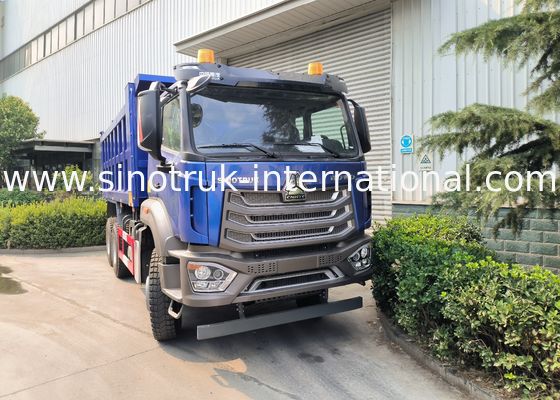

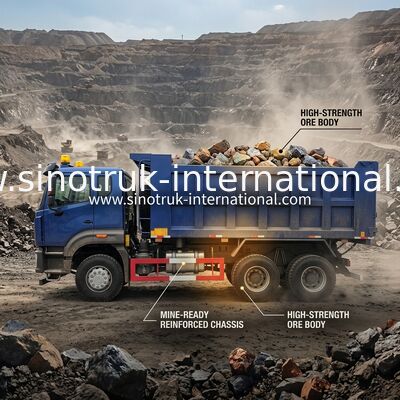

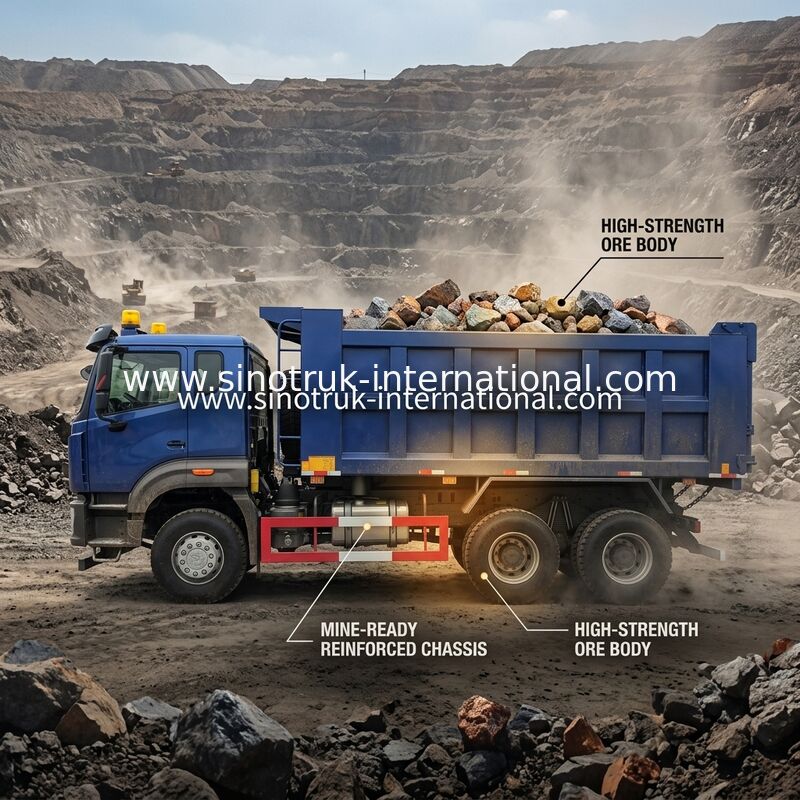

Sinotruk N7 Tipper Dump Truck 10Wheels 400Hp 6 × 4 With Warning Light
Description:
This 6x4 Sinotruk N7 Dump Truck is a reliable and powerful vehicle, designed for heavy-duty transport tasks, and can easily carry bulky materials such as sand, stones, construction waste, etc. In addition, this Howo dump truck has advanced technology, durable box structure, and efficient fuel consumption, making it the first choice for mining, construction, and logistics industries.
This type truck is the famouce brand in abroad marketing. it also have a large exporting quantity in recently years, and make a big effort for local infrastructure construction.This model can meet the requirements of severe environment like construction site and mining area.which can fullfiled you of short distance transportation of mining rock and soil as well as engineering construction.
Specifications:
| Sinotruk N7 Tipper Dump Truck 10Wheels 400Hp 6 × 4 With Warning Light | ||||
| Model | ZZ3257V384JB1 | |||
| Drive Type | 6×4 | |||
| Engine |
|
|||
| Cabin | H77L lengthened cab(with one sleeper, air-conditioner and new-style seat,warning light is optional) | |||
| Transmission | HW19710(10 forwards & 2 reverses) | |||
| Front Axle | 1×VGD95 ( 9.5 Tons) | |||
| Driving Axle | 2XHC16, 16Tons | |||
| Steering | China brand | |||
| Clutch |
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
|||
| Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire | |||
| Wheel base | 3825+1350(mm) | |||
| Overall dimension | 8600×2550×3450(mm) | |||
| Cargo body | 5600×2300×1500(mm),Bottom:8mm, Side:6mm | |||
| The curb weight | 12250(Kg) | |||
| Gross weight | 25000 kg | |||
| Max. speed | 75km/h | |||
| Color | White, red, green, golden and so on. | |||
Applications:
working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.
Competitive Advantage:
1) with all kinds of truck model, which can fulfil your requirement
2) the key parts adopt the world's top technology products
3) based on strong technical support and top level technology make the trucks with high quality and more reliable
4) Optimized cargo body structure,light weight,high rigidity,large loading capacity
5) Using the high strength steel,it has long service life
6) Optimized the sealing structure has the better sealing effect.
7) The intelligent hydraulic control system helps to avoid error operation, it has higher safety and running efficiency.
8) Multiple box structures and device selections
9) low fuel consumption
10) strong enough engine
11) competive price, cost-effective
12) quick and efficient spare parts supply bring you more convenient
13) fast delivery time, we can arange production according to your needs exactly and quickly
14) professional import and export dealing precedure, make customs clearance more high efficiency
