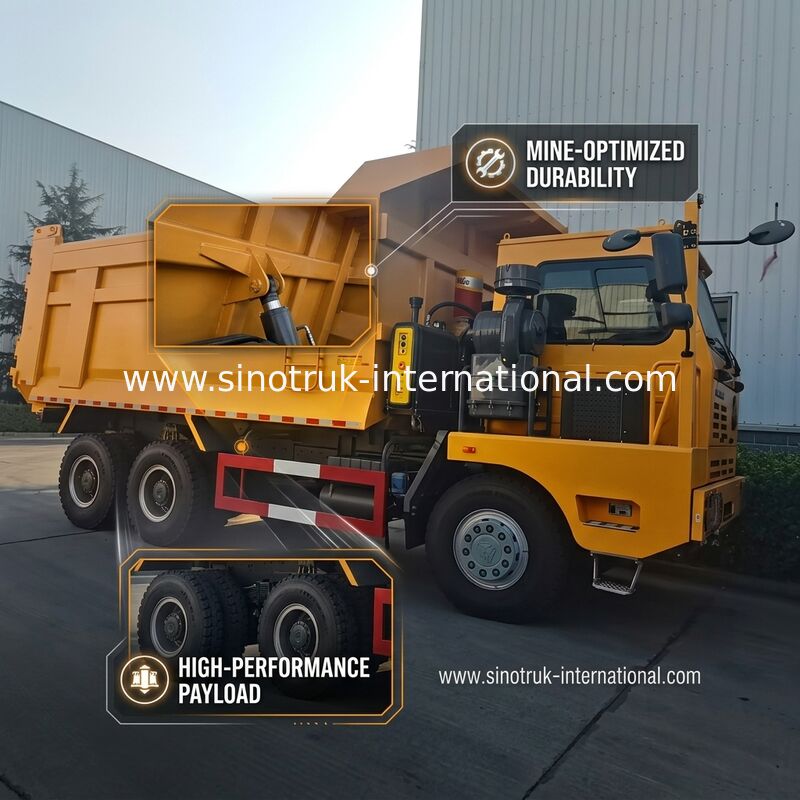

SINOTRUK Heavy Duty Tipper Dump Truck LHD With Unilateral High Strength Skeleton Cab Yellow

SINOTRUK Heavy Duty Tipper Dump Truck LHD With Unilateral High Strength Skeleton Cab Yellow

  • SINOTRUK Heavy Duty Tipper Dump Truck LHD With Unilateral High Strength Skeleton Cab  Yellow
  • SINOTRUK Heavy Duty Tipper Dump Truck LHD With Unilateral High Strength Skeleton Cab  Yellow
  • SINOTRUK Heavy Duty Tipper Dump Truck LHD With Unilateral High Strength Skeleton Cab  Yellow
  • SINOTRUK Heavy Duty Tipper Dump Truck LHD With Unilateral High Strength Skeleton Cab  Yellow
SINOTRUK Heavy Duty Tipper Dump Truck LHD With Unilateral High Strength Skeleton Cab  Yellow
Product Details:
Place of Origin: China
Brand Name: SINOTRUK HOWO 70 Mining
Certification: ISO/3C/BV/IFA/SGS
Model Number: ZZ3259N384PB3
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD78000-USD81000/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2,000units per month
Contact Now
Detailed Product Description
Product Name: Tipper Dump Truck Model: ZZ3259N384PB3
Drive Type: LHD 6X4 Emission Standard: Euro 2
Engine: WD615.47, 371HP Cargo Body: 5800*3100*1600mm
Loading Capacity: 70tons
High Light:

LHD Mining Tipper Trucks

,

Heavy Duty Tipper Dump Truck LHD

,

Skeleton Cab Tipper Dump Truck

SINOTRUK Heavy Duty Tipper Dump Truck LHD With Unilateral High Strength Skeleton Cab Yellow​



Description:



SINOTRUK Heavy Duty Tipper Dump Truck LHD With Unilateral High Strength Skeleton Cab Yellow

HOWO mining dump truck adopts unilateral high-strength skeleton cab, simple shape, hard, open vision; Good sealing can ensure that your vehicle is always in a safe and comfortable driving environment; There are two lights at the top of the front and rear of the cabin for night work.



Configuration HW19710 gearbox, HW70 power, torque up to 700NM.

With 500 litre Type D fuel tank (400 litre fuel tank is optional), the vehicle workload meets your requirements.



Sinotruk independently developed a new front axle assembly, using integral cast winch beam, 500x210 reinforced brake and other truck parts assembly technology.

The rear axle adopts AC26 mining drive axle, the main reducer structure design is more reasonable, the reinforced casting axle housing and drum brake, the vehicle carrying capacity and braking capacity in the domestic leading level.



Wheels and tires :10.0/2-25 wheel assembly, standard 14.00-25-36PR tires, the original 14.00R25-36PR tires, is specially customized for mining Bawang with high load capacity, high wear resistance of special tires.





Specification:



Tipper Dump Truck LHD SINOTRUK HOWO70 Mining 10Wheels 371HP 70tons ZZ5707S3840AJ

Model  ZZ3259N384PB3
Drive Type 6×4
Engine

WD615.47 , 371HP( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

Displacement : 9.726L

Cabin HW7D   unilateral high strength skeleton cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×HF12 ( 12 Tons)
Driving Axle AC26, 26Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance
Rim/ Tire 14.00-25,14.00R25,Radial tire
Wheel base 3800+1500(mm)
Overall dimension 8700×3300×3670(mm)
Cargo body

5800×3100×1600(mm),Bottom:16mm, Side:12mm

The curb weight 23000(Kg)
Gross weight 70000 kg
Max. speed 50km/h
Color White, red, green, golden and so on.




Applications:



SINOTRUK Mining Dump Truck  is a heavy engineering design personnel concentrated research and development, first suitable for all kinds of open-pit coal mines, steel mills, hydropower station construction, docks, poor road conditions, poor operation in the area of short-distance transport business development of this car, in terms of specific user groups, with high economic and social benefits.



Competitive Advantage:



1) We can design and produce various cargo structures according to your requirements, so that it has light maintenance weight, high rigidity and high carrying capacity
2) High-strength steel is used to make it have a long service life
3) The domestic advanced T-type hydraulic control system is adopted to avoid misoperation, safe and efficient operation.
4) Cabin appearance is good, safe and reliable
5) Low fuel consumption
6) The engine is strong enough
7) Various types of trucks are available to meet your requirements
8) The world's top technology products are used for key components
9) Relying on strong technical support and first-class technology, the truck has high quality and more reliable quality
10) The price is competitive and cost-effective
11) Fast and efficient spare parts supply to bring you more convenience
12) Fast delivery time, we can precisely arrange production according to your needs
13) Professional import and export transaction process, making customs clearance more efficient
