Place of Origin: | China |
Brand Name: | SINOTRUK |
Certification: | ISO/3C/BV/IFA/SGS |
Model Number: | ZZ3317V3867B1 |
Minimum Order Quantity: | 1unit |
---|---|
Price: | Negotiation |
Packaging Details: | Waxing in Bulk ship, Roro ship, Container |
Delivery Time: | 10-30 working days |
Supply Ability: | 3,000 units per month |
Model: | ZZ3317V3867B1 | Engine: | WP12.400E201 , 400 HP |
---|---|---|---|
Drive Type: | 8×4 LHD | Steering: | BOSCH Or China Brand |
Front Axle: | 2×VGD95 | Driving Axle: | 2XHC16 |
Highlight: | Sinotruk Howo Mining Tipper Trucks,Tipper Dump Truck 12 Wheels,Mining RHD Tipper Dump Truck |

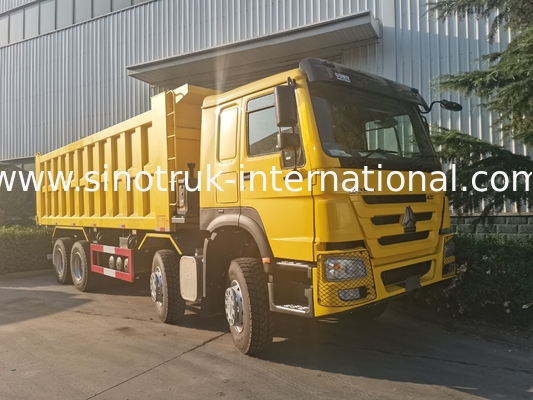

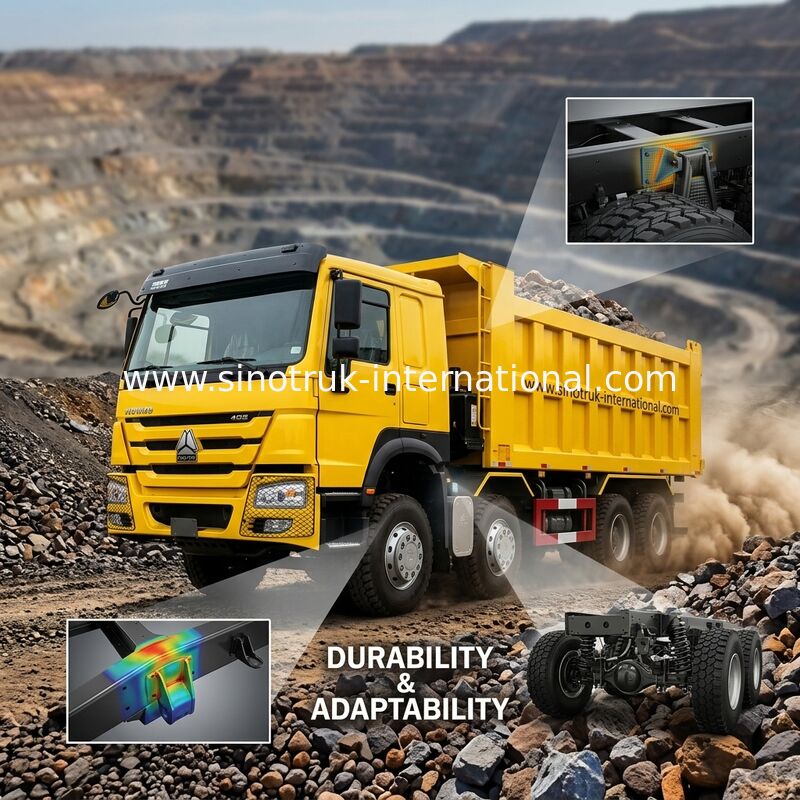

Sinotruk Howo Tipper Dump Truck 12Wheels 400Hp 8 × 4 Mining RHD Yellow
Description:
Dump truck refers to the vehicle that discharges by itself through hydraulic or mechanical lifting. It is also called dumper. It is composed of automobile chassis, hydraulic lifting mechanism, cargo box, power take-off device and other components. The vehicle has won market recognition for its excellent carrying capacity and high reliability.
Haohao Heavy duty 8x4 dump 12-wheel truck has outstanding fuel economy, light weight, superior power performance, stable and reliable performance, and has a variety of personalized configuration options, beautiful cab, safety and comfort.
It can meet the requirements of harsh environment such as construction site and mining area, and is suitable for earthmoving and engineering construction of short distance mines.
Specifications:
Sinotruk Howo Tipper Dump Truck 12Wheels 400Hp 8 × 4 Mining RHD Yellow | ||||
Model | ZZ3317V3867B1 | |||
Drive Type | 8×4 | |||
Engine |
|
|||
Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat) | |||
Transmission | HW19710(10 forwards & 2 reverses) | |||
Front Axle | 2×VGD95 ( 9.5 Tons) | |||
Driving Axle | 2XHC16, 16Tons | |||
Steering | BOSCH or China brand | |||
Clutch |
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
|||
Rim/ Tire | 12.00R20 Radial tire | |||
Wheel base | 3825+1350(mm) | |||
Overall dimension | 10945×2600×3450(mm) | |||
Cargo body | 7800×2300×1500(mm),Bottom:8mm, Side:6mm | |||
The curb weight | 15480(Kg) | |||
Gross weight | 31000 kg | |||
Max. speed | 75km/h | |||
Color | White, red, green, golden and so on. |
Applications:
working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.
Competitive Advantage:
1)A wide range of trucks to meet your requirements
2) The world's top technology products are used for key components
3) Based on strong technical support and first-class technology, the truck quality is higher and more reliable
4) Optimize the structure of the cargo body, light weight, high rigidity, large carrying capacity
5) High strength steel, long service life
6) The optimized sealing structure has better sealing effect.
7) Intelligent hydraulic control system to avoid misoperation, higher safety and operation efficiency.
8) A variety of box structure and equipment selection
9) Low fuel consumption
10) The engine is strong enough
11) The price is competitive and cost-effective
12) Fast and efficient spare parts supply, to bring you more convenience
13) Fast delivery time, we can accurately and quickly arrange production according to your needs
14) Professional import and export transaction process, making customs clearance more efficient
