Place of Origin: | China |
Brand Name: | HOWO |
Certification: | ISO/3C/BV/IFA/SGS |
Model Number: | ZZ3317V386JB1R |
Minimum Order Quantity: | 1 unite |
---|---|
Price: | negotiation |
Packaging Details: | Nude or Waxing in Roro or bulk ship |
Delivery Time: | 25-30 days after received your advance payment |
Payment Terms: | L/C, T/T |
Supply Ability: | 3000 per month |
Model: | ZZ3317V386JB1R | Color: | Blue |
---|---|---|---|
Engine: | WP10.380E22, 380HP, Euro2 | Overall Dimension: | 10945*2600*3450 Mm |
Engine Output: | 380HP | Cabin: | H77L-R |
Highlight: | 380HP HOWO Tipper Truck,HOWO Tipper Truck High Horsepower,8×4 Dumper Tipper |
Description:

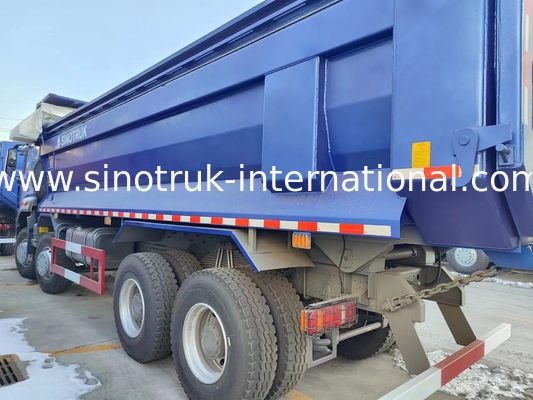

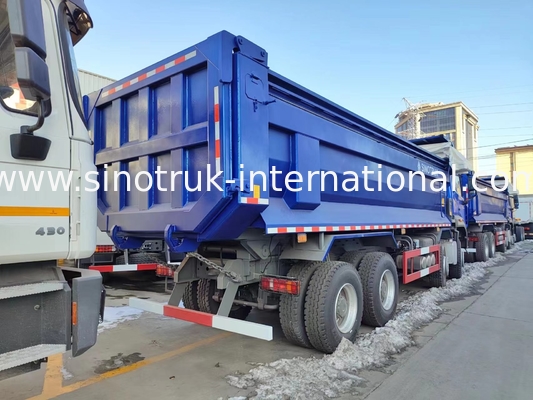

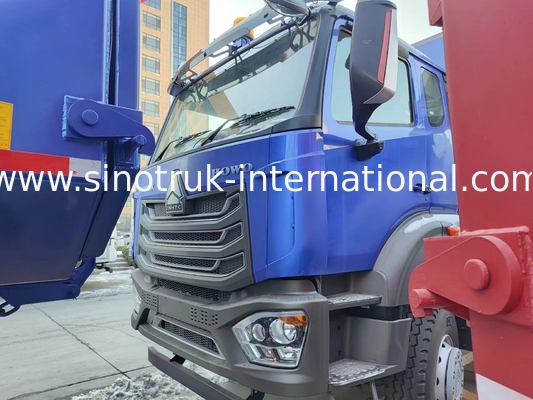

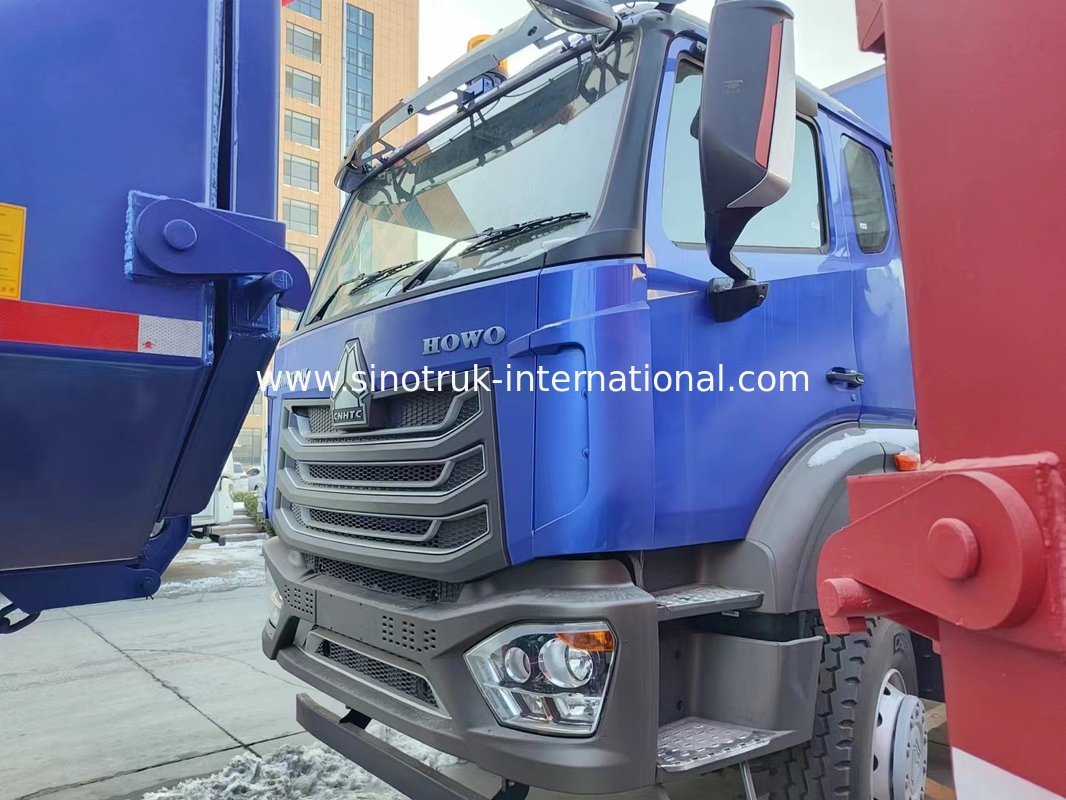

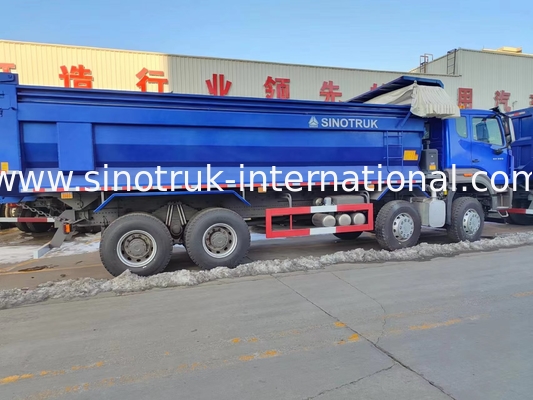

This 8x4 Sinotruk N7 Dump Truck is a reliable and powerful vehicle, designed for heavy-duty transport tasks, and can easily carry bulky materials such as sand, stones, construction waste, etc. In addition, this Howo dump truck has advanced technology, durable box structure, and efficient fuel consumption, making it the first choice for mining, construction, and logistics industries.
This type truck is the famouce brand in abroad marketing. it also have a large exporting quantity in recently years, and make a big effort for local infrastructure construction.This model can meet the requirements of severe environment like construction site and mining area.The toughness and service life of the frame are improved
Specifications:
Sinotruk Howo Tipper Dump Truck Brand New 380Hp Rhd 12Wheels 8 × 4 | ||||
Model | ZZ3317V3567B1R | |||
Drive Type | 8×4 | |||
Engine |
|
|||
Cabin | H77L lengthened cab(with one sleeper, air-conditioner and new-style seat,warning light is optional) | |||
Transmission | HW19710(10 forwards & 2 reverses) | |||
Front Axle | 2×VGD95 ( 9.5 Tons) | |||
Driving Axle | 2XHC16, 16Tons | |||
Steering | China brand | |||
Clutch |
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
|||
Rim/ Tire | 12.00R20Radial tire | |||
Wheel base | 3525+1350(mm) | |||
Overall dimension | 10245×2550×3450(mm) | |||
Cargo body | 7300×2300×1500(mm),Bottom:8mm, Side:6mm.Customized | |||
The curb weight | 14860(Kg) | |||
Gross weight | 31000 kg | |||
Max. speed | 75km/h | |||
Color | White, red, green, golden and so on. |
Applications:
working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.
Competitive Advantage:
1) with all kinds of truck model, which can fulfil your requirement
2) the key parts adopt the world's top technology products
3) based on strong technical support and top level technology make the trucks with high quality and more reliable
4) Optimized cargo body structure,light weight,high rigidity,large loading capacity
5) Using the high strength steel,it has long service life
6) Optimized the sealing structure has the better sealing effect.
7) More safety for drivers
8) Multiple box structures and device selections
9) low fuel consumption
10) strong enough engine
11) competive price, cost-effective
12) quick and efficient spare parts supply bring you more convenient
13) fast delivery time, we can arange production according to your needs exactly and quickly
14) Reliable performance in the face of a variety of harsh environments
