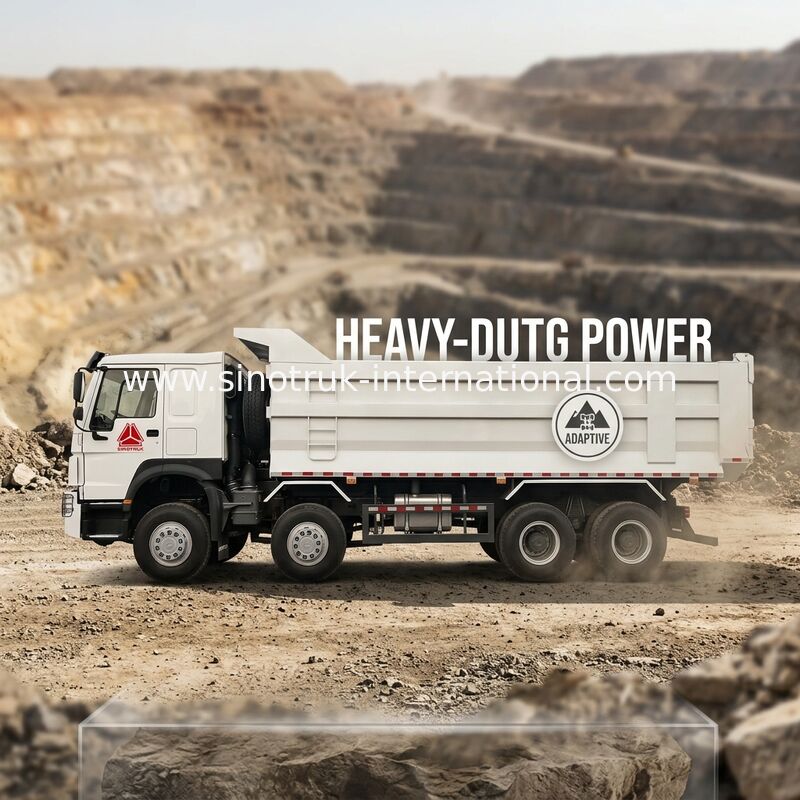

SINOTRUK HOWO Mining Tipper Dump Truck 12Wheels 400Hp 8 × 4 U type

SINOTRUK HOWO Mining Tipper Dump Truck 12Wheels 400Hp 8 × 4 U type

  • SINOTRUK HOWO Mining Tipper Dump Truck 12Wheels 400Hp 8 × 4 U type
  • SINOTRUK HOWO Mining Tipper Dump Truck 12Wheels 400Hp 8 × 4 U type
  • SINOTRUK HOWO Mining Tipper Dump Truck 12Wheels 400Hp 8 × 4 U type
  • SINOTRUK HOWO Mining Tipper Dump Truck 12Wheels 400Hp 8 × 4 U type
SINOTRUK HOWO Mining Tipper Dump Truck 12Wheels 400Hp 8 × 4 U type
Product Details:
Place of Origin: China
Brand Name: SINOTRUK
Certification: ISO/3C/BV/IFA/SGS
Model Number: ZZ3317V3867B1
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: Negotiation
Packaging Details: Waxing in Bulk ship, Roro ship, Container
Delivery Time: 10-30 working days
Supply Ability: 3,000 units per month
Contact Now
Detailed Product Description
Model: ZZ3317V3867B1 Engine: WP12.400E201 , 400 HP
Drive Type: 8×4 LHD Steering: BOSCH Or China Brand
Front Axle: 2×VGD95 Driving Axle: 2×HC16

SINOTRUK HOWO Mining Tipper Dump Truck 12Wheels 400Hp 8 × 4 U type



Description:



Dump truck refers to the vehicle that discharges by itself through hydraulic or mechanical lifting. It is also called dumper. It is composed of automobile chassis, hydraulic lifting mechanism, cargo box, power take-off device and other components. The vehicle has won market recognition for its excellent carrying capacity and high reliability.
Haohao Heavy duty 8x4 dump 12-wheel truck has outstanding fuel economy, light weight, superior power performance, stable and reliable performance, and has a variety of personalized configuration options, beautiful cab, safety and comfort.
It can meet the requirements of harsh environment such as construction site and mining area, and is suitable for earthmoving and engineering construction of short distance mines.







Specifications:


Sinotruk Howo Tipper Dump Truck 12Wheels 400Hp 8 × 4 Mining
ModelZZ3317V3867B1
Drive Type8×4
Engine
WP12.400E201,400 HP( Euro II)
6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine
Displacement : 11.596L
CabinHW76 lengthened cab(with one sleeper, air-conditioner and new-style seat)
TransmissionHW19710(10 forwards & 2 reverses)
Front Axle2×VGD95 ( 9.5 Tons)
Driving Axle2XHC16, 16Tons
SteeringBOSCH or China brand
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

air assistance

Rim/ Tire12.00R20 Radial tire
Wheel base3825+1350(mm)
Overall dimension10945×2600×3450(mm)
Cargo body7800×2300×1500(mm),Bottom:8mm, Side:6mm
The curb weight15480(Kg)
Gross weight31000 kg
Max. speed75km/h
ColorWhite, red, green, golden and so on.


Applications:



Work for the mining industry, construction industry, docks, transporting soil, sand, stones, etc.



Competitive Advantage:


1) Have various truck models to meet your requirements
2) Key components adopt the world’s top technology products
3) Based on strong technical support and top technology, the trucks are of higher quality and more reliable
4) Optimized cargo compartment structure, light weight, high rigidity and large load-bearing capacity
5) Made of high-strength steel, long service life
6) Optimized sealing structure, better sealing effect.
7) Intelligent hydraulic control system avoids misoperation and has higher safety and operating efficiency.
8) Various cabinet structures and device options
9) Low fuel consumption
10) A powerful enough engine
11) Competitive price, high cost performance
12) Fast and efficient spare parts supply brings you more convenience
13) Fast delivery time, we can arrange production accurately and quickly according to your needs
14) Professional import and export processing procedures make customs clearance more efficient

SINOTRUK HOWO Mining Tipper Dump Truck 12Wheels 400Hp 8 × 4 U type 0
