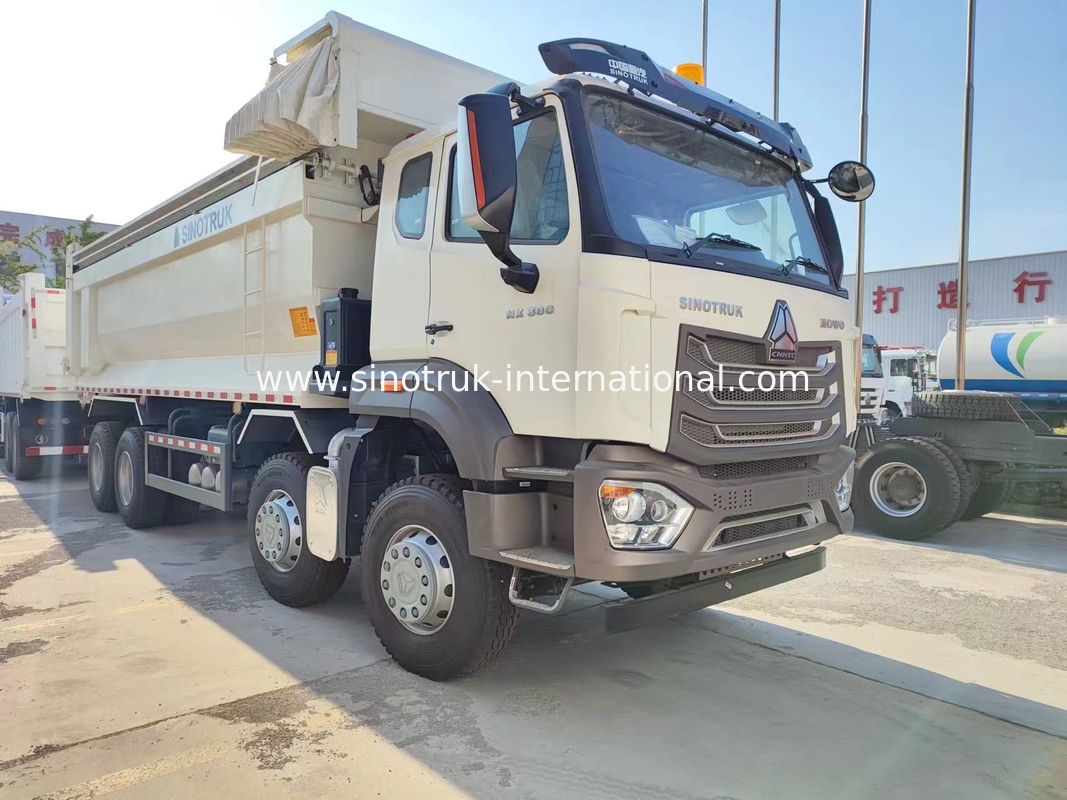

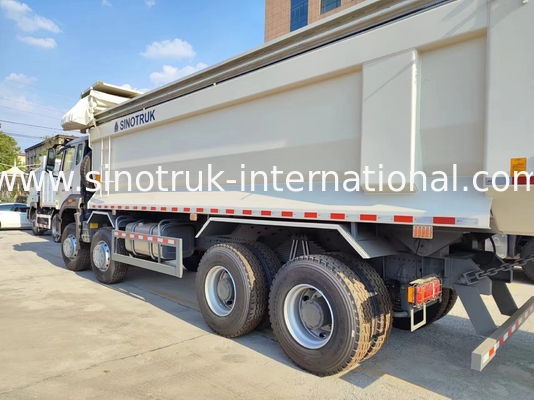

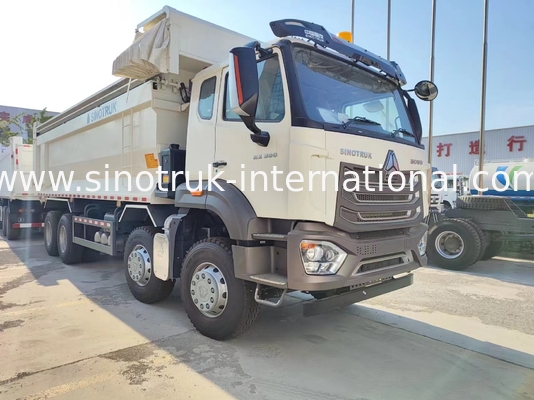

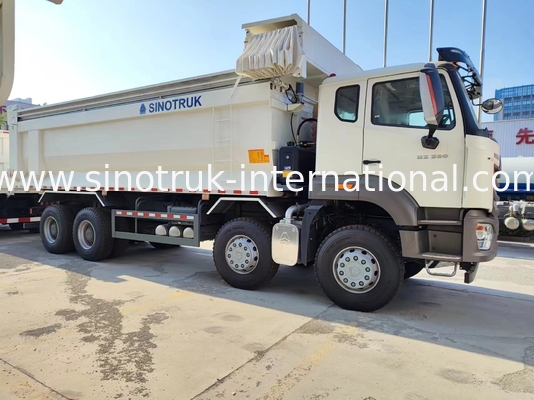

ZZ3317V386JB1R High Horsepower Low Fuel Consumption 380HP White U-type HOWO Tipper Truck

ZZ3317V386JB1R High Horsepower Low Fuel Consumption 380HP White U-type HOWO Tipper Truck

  • ZZ3317V386JB1R High Horsepower Low Fuel Consumption 380HP White U-type   HOWO Tipper Truck
  • ZZ3317V386JB1R High Horsepower Low Fuel Consumption 380HP White U-type   HOWO Tipper Truck
  • ZZ3317V386JB1R High Horsepower Low Fuel Consumption 380HP White U-type   HOWO Tipper Truck
  • ZZ3317V386JB1R High Horsepower Low Fuel Consumption 380HP White U-type   HOWO Tipper Truck
ZZ3317V386JB1R High Horsepower Low Fuel Consumption 380HP White U-type   HOWO Tipper Truck
Product Details:
Place of Origin: China
Brand Name: HOWO
Certification: ISO/3C/BV/IFA/SGS
Model Number: ZZ3317V386JB1R
Payment & Shipping Terms:
Minimum Order Quantity: 1 unite
Price: negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25-30 days after received your advance payment
Payment Terms: T/T, L/C
Supply Ability: 3000 per month
Contact Now
Detailed Product Description
Color: White Cabin: H77L
Engine: WP10.380E22 Engine Output: 380HP
Model: ZZ3257V386JB1R Drive Type: RHD
Tire: 12.00R20
High Light:

ZZ3317V386JB1R HOWO tipper Truck

,

High Horsepower HOWO tipper Truck

,

Low Fuel Consumption HOWO tipper Truck

Sinotruk Howo Tipper Dump Truck Brand New 380Hp Rhd 12Wheels 8 × 4



Description:

This 8x4 Sinotruk N7 Dump Truck is a reliable and powerful vehicle, designed for heavy-duty transport tasks, and can easily carry bulky materials such as sand, stones, construction waste, etc. In addition, this Howo dump truck has advanced technology, durable box structure, and efficient fuel consumption, making it the first choice for mining, construction, and logistics industries.



This type truck is the famouce brand in abroad marketing. it also have a large exporting quantity in recently years, and make a big effort for local infrastructure construction.This model can meet the requirements of severe environment like construction site and mining area.which can fullfiled you of short distance transportation of mining rock and soil as well as engineering construction.







Specifications:




Sinotruk Howo Tipper Dump Truck Brand New 380Hp Rhd 12Wheels 8 × 4
Model ZZ3317V356JBR
Drive Type 8×4
Engine
WP10.380E22,380HP ( Euro II)
6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine
Displacement : 9.726L
Cabin H77L lengthened cab(with one sleeper, air-conditioner and new-style seat,warning light is optional)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 2×VGD95 ( 9.5 Tons)
Driving Axle 2XHC16, 16Tons
Steering China brand
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

air assistance

Rim/ Tire 12.00R20Radial tire
Wheel base 3525+1350(mm)
Overall dimension 10245×2550×3450(mm)
Cargo body 7300×2300×1500(mm),Bottom:8mm, Side:6mm.Customized
The curb weight 14860(Kg)
Gross weight 31000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.


Applications:



working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.



Competitive Advantage:



1) with all kinds of truck model, which can fulfil your requirement
2) the key parts adopt the world's top technology products
3) based on strong technical support and top level technology make the trucks with high quality and more reliable

4) Optimized cargo body structure,light weight,high rigidity,large loading capacity

5) Using the high strength steel,it has long service life

6) Optimized the sealing structure has the better sealing effect.

7) The intelligent hydraulic control system helps to avoid error operation, it has higher safety and running efficiency.

8) Multiple box structures and device selections

9) low fuel consumption
10) strong enough engine

11) competive price, cost-effective
12) quick and efficient spare parts supply bring you more convenient
13)
U-shaped cargo box for reduced impact and longer service lifeZZ3317V386JB1R High Horsepower Low Fuel Consumption 380HP White U-type   HOWO Tipper Truck 0ZZ3317V386JB1R High Horsepower Low Fuel Consumption 380HP White U-type   HOWO Tipper Truck 1
