Place of Origin: | China |
Brand Name: | HOWO |
Certification: | ISO/3C/BV/IFA/SGS |
Model Number: | ZZ3257V3847B1R |
Minimum Order Quantity: | 1 unite |
---|---|
Price: | negotiation |
Packaging Details: | Nude or Waxing in Roro or bulk ship |
Delivery Time: | 25-30 days after received your advance payment |
Payment Terms: | T/T, L/C |
Supply Ability: | 3000 per month |
Color: | Blue | Engine Output: | 380Hp |
---|---|---|---|
Type: | 12.00R20 | Steering: | Bosch |
Model: | ZZ3257V3847B1R | Drive Type: | 12.00R20 |
Highlight: | 10 Wheels Tipper Dump Truck,SINOTRUCK HOWO Tipper Dump Truck,40 Tons Tipper Dump Truck |

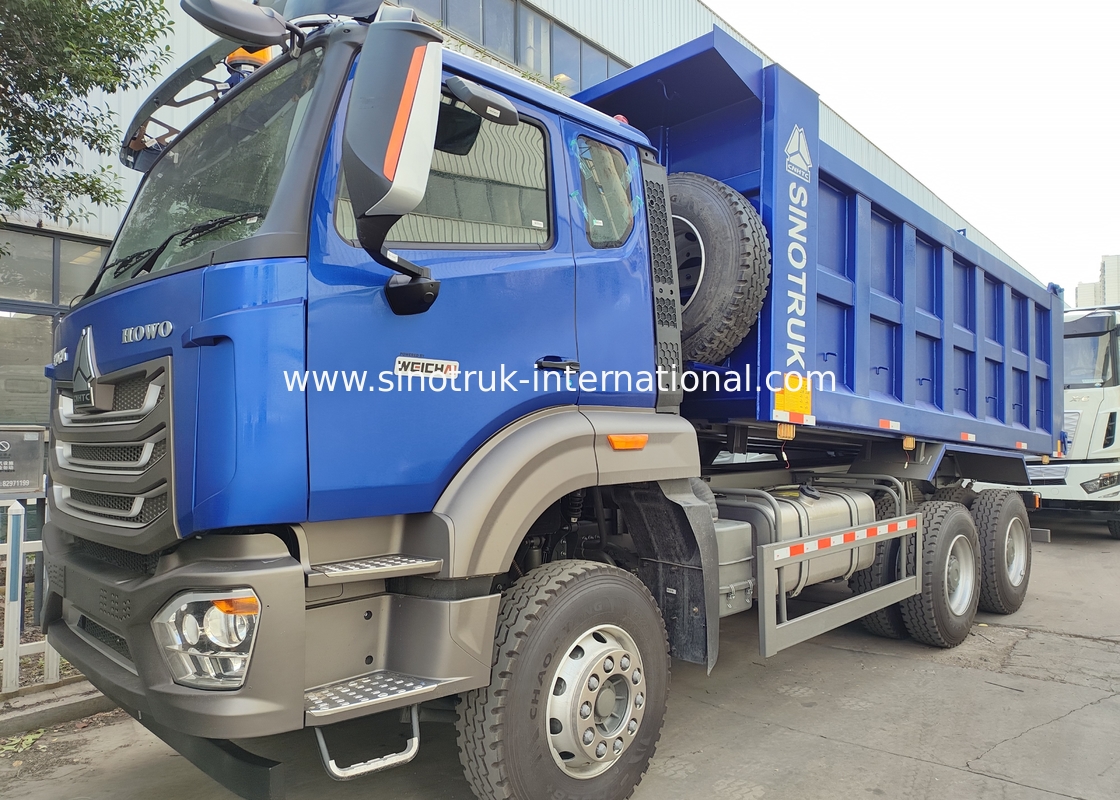

SINOTRUK HOWO Tipper Dump Truck 6 × 4 10Wheels RHD 380Hp U type One warning light
Description:
Sinotruk howo dump truck quality are durable which have been proved by the market and time. That’s why more and more customers prefer to buy Sinotruk howo dump trucks to support their business. And sinotruk howo dump truck has the competitive price with China other brand heavy duty trucks.
Sinotruk HOWO 6X4 Dump Truck, which used for transporting the stuff in bulk which can be scattered (such as sand, pebbles, soil, minerals, etc.). It can be loading 20-35 tons. The truck model mainly in construction sites, Mining area and so on.
Specifications:
SINOTRUK HOWO Tipper Dump Truck 6 × 4 10Wheels RHD 380Hp U type One warning light | ||||
Model | ZZ3257V384JB1R | |||
Drive Type | 6×4 | |||
Engine |
|
|||
Cabin | H77L (with one sleeper, air-conditioner and new-style seat) | |||
Transmission | HW19710(10 forwards & 2 reverses) | |||
Front Axle | 1×VGD95 ( 9.5 Tons) | |||
Driving Axle | 2XHC16, 16Tons | |||
Steering | BOSCH | |||
Clutch |
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
|||
Rim/ Tire | 12.00R20 Radial tire | |||
Wheel base | 3825+1350(mm) | |||
Overall dimension | 8345×2600×3350(mm) | |||
Cargo body | 5600×2300×1500(mm),Bottom:8mm, Side:6mm | |||
The curb weight | 12250(Kg) | |||
Gross weight | 25000 kg | |||
Max. speed | 75km/h | |||
Color | White, red, green, golden and so on. |
Applications:
working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.
Competitive Advantage:
1) Various types of trucks can meet your requirements
2) The world's top technology products are used for key components
3) Based on strong technical support and first-class technology, the truck quality is higher and more reliable
4) Optimize the structure of the cargo body, light weight, high rigidity, large carrying capacity
5) High strength steel, long service life
6) The optimized sealing structure has better sealing effect.
7) Intelligent hydraulic control system to avoid misoperation, higher safety and operation efficiency.
8) A variety of box structure and equipment selection
9) Low fuel consumption
10) The engine is strong enough
11) The price is competitive and cost-effective
12) Fast and efficient spare parts supply, to bring you more convenience
13) Fast delivery time, we can accurately and quickly arrange production according to your needs
14) Professional import and export transaction process, making customs clearance more efficient
