Place of Origin: | China |
Brand Name: | SINOTRUK |
Certification: | ISO/3C/BV/IFA/SGS |
Model Number: | ZZ3317V3567B1 |
Minimum Order Quantity: | 1 Unit |
---|---|
Price: | negotiation |
Packaging Details: | Nude or Waxing in Roro or bulk ship |
Delivery Time: | 25 working days after received your advance payment |
Payment Terms: | T/T, L/C |
Supply Ability: | 3,000units per month |
Product Name: | Dump Tipper Truck | Model: | ZZ3317V3567B1 |
---|---|---|---|
Drive Type: | LHD 8×4 | Tank Body Capacity:: | 30CBM |
Engine: | WP12.400E201 400HP Euro 2 | Highlight: | Commercial Dump Truck, Sinotruk Howo Dump Truck |
Highlight: | 8X4 Tipper Dump Truck,SINOTRUK HOWO A7 Tipper Dump Truck,Construction Tipper Dump Truck |

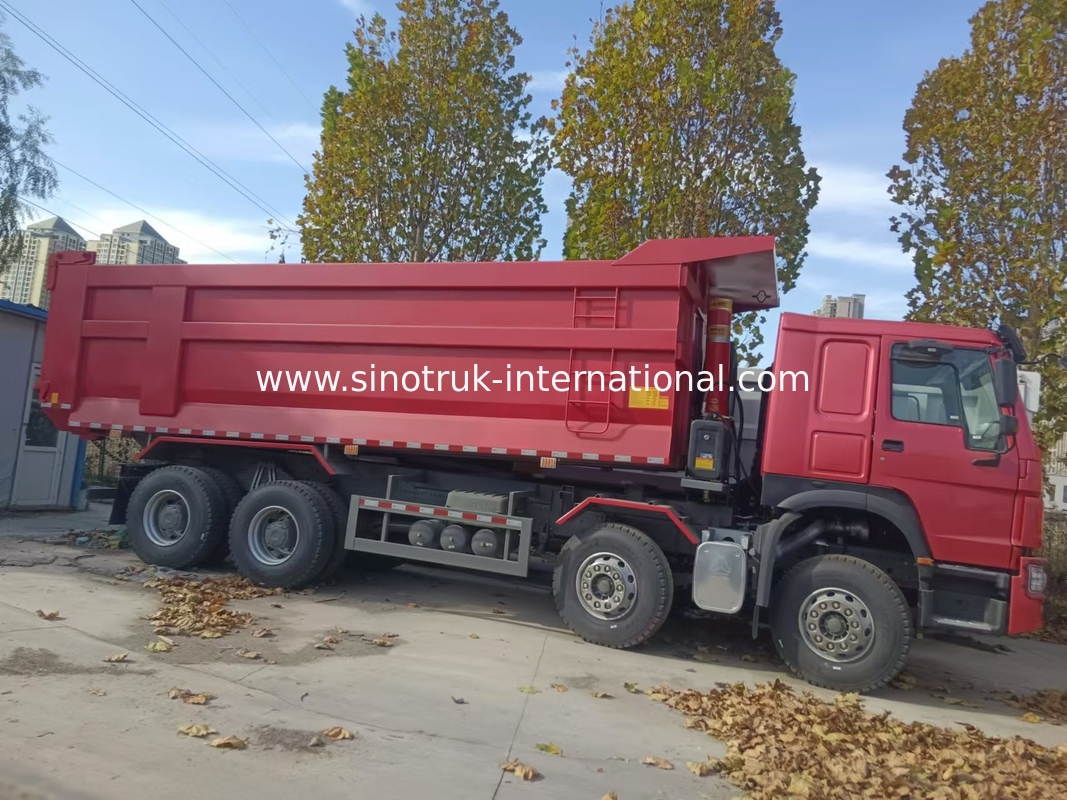

Description:
This type product , with features of reliable structure , high loading capacity which can
load 30-60tons,strong power from 266HP to 430HP,reliable performance and wide
acceplication.
This model can meet the requirements of severe environment like construction site and
mining area.which can fullfiled you of short distance transportation of mining rock and
soil as well as engineering construction.
Specification
|
||||
Model | ZZ3317V3567B1 | |||
Drive Type | 8×4 | |||
Engine |
|
|||
Cabin | A7-W lengthened cab(with one sleeper, air-conditioner and new-style seat) | |||
Transmission | HW19710(10 forwards & 2 reverses) | |||
Front Axle | 1×HF9 ( 9 Tons) | |||
Driving Axle | HC16, 16Tons | |||
Steering | ZF8118 hydraulic steering with power assistance. | |||
Clutch | Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance | |||
Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire | |||
Wheel base | 1800+3500+1350(mm) | |||
Overall dimension | 10660×2496×3450(mm) | |||
Cargo body | 7800×2300×1500(mm),Bottom:8mm, Side:6mm | |||
The curb weight | 15300(Kg) | |||
Gross weight | 31000 kg | |||
Max. speed | 75km/h | |||
Color | White, red, green, golden and so on. |
Applications:
Working for Mining industry, Construction business, docks, for transporting soil, sand, stones and so on.
Competitive Advantage:
1)advanced cargo body structure , light weight , high rigidity , hight loading capacity
2)Using the high strength steel,it has long service life
3)Optimized the sealing structure has the better sealing effect.
4)The advanced hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
5)Multiple box structures and device selections
