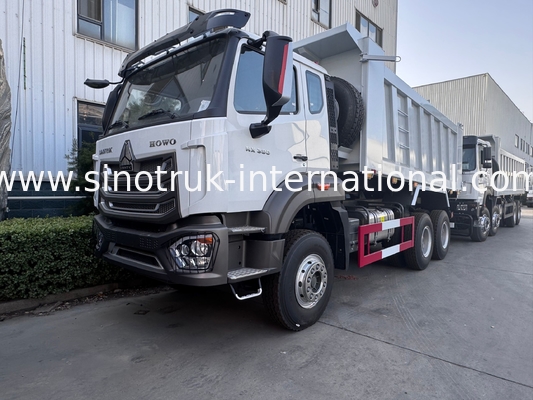

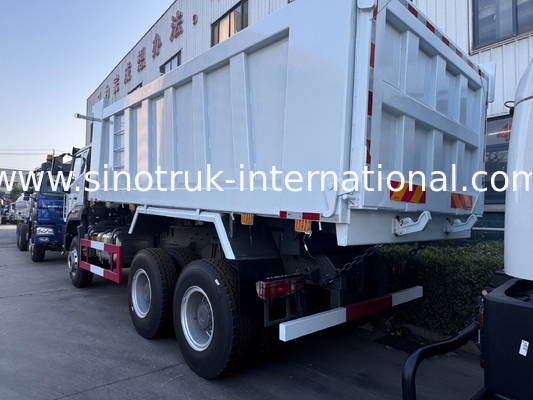

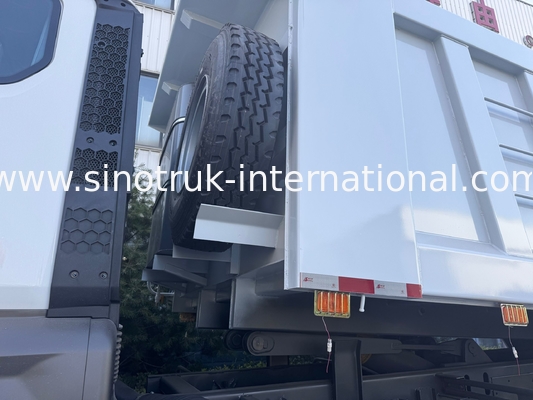

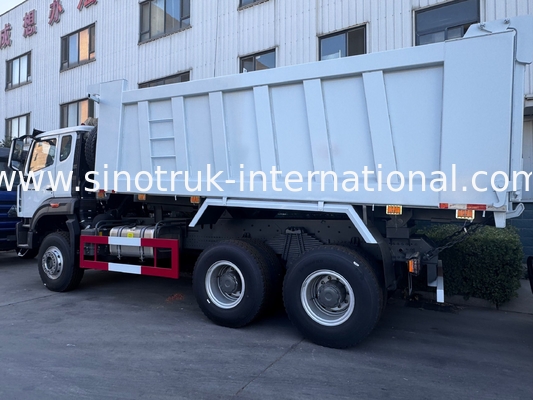

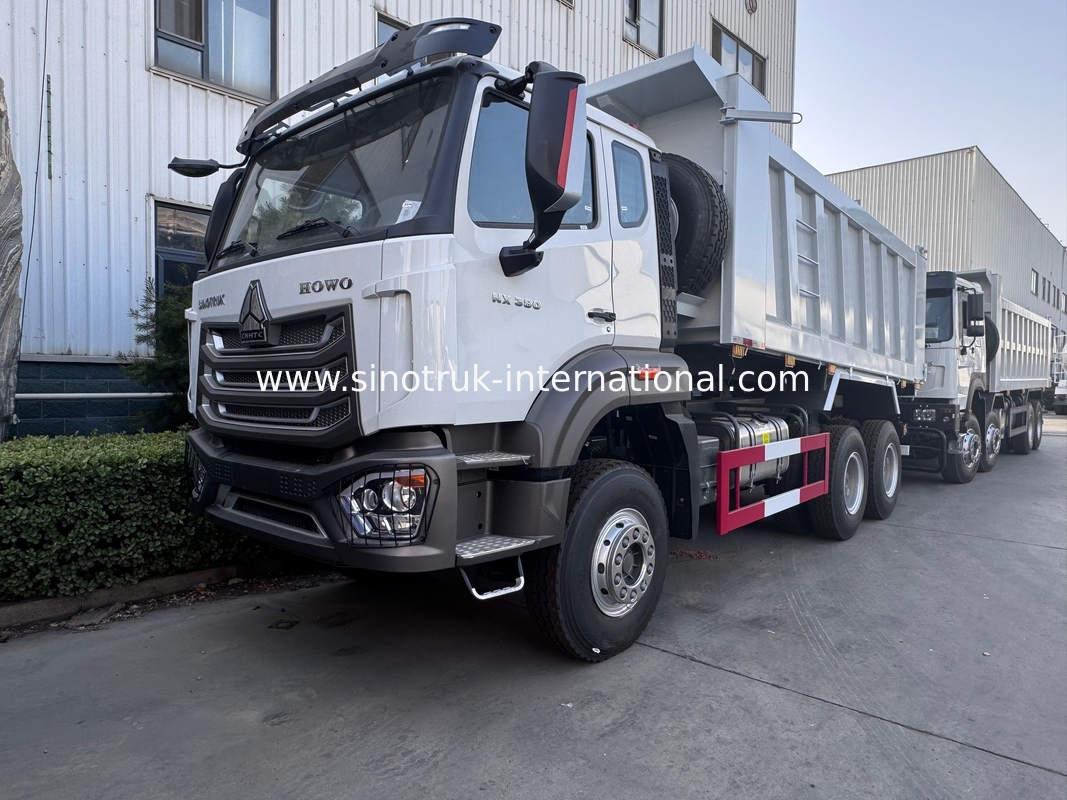

SINOTRUK HOHAN HOWO 380HP LHD Tipper Dump Truck 6X4 Patterned Style Cargo Box

SINOTRUK HOHAN HOWO 380HP LHD Tipper Dump Truck 6X4 Patterned Style Cargo Box

SINOTRUK HOHAN HOWO 380HP LHD Tipper Dump Truck 6X4 Patterned Style Cargo Box
SINOTRUK HOHAN HOWO 380HP LHD Tipper Dump Truck 6X4 Patterned Style Cargo Box
SINOTRUK HOHAN HOWO 380HP LHD Tipper Dump Truck 6X4 Patterned Style Cargo Box
Product Details:
Place of Origin: China
Brand Name: SINOTRUK
Certification: ISO/3C/BV/IFA/SGS
Model Number: ZZ3257V384JB1
Payment & Shipping Terms:
Minimum Order Quantity: 1Unit
Price: Negotiation
Packaging Details: Waxing in Bulk ship, Roro ship, Container
Delivery Time: 10-30 working days
Supply Ability: 3,000 units per month
Contact Now
Detailed Product Description
Product Name: Tipper Dump Truck Model: ZZ3257V384JB1
Drive Type: LHD 6X4 Cab: H77L With One Sleeper, A/C
Engine: WP10.380E22 380HP Transmission: HW19710(10 Forwards & 2 Reverses)
Highlight:

380HP Tipper Dump Truck

,

SINOTRUK Tipper Dump Truck

,

6X4 Tipper Dump Truck

SINOTRUK HOHAN NEW HOWO 380HP LHD Tipper Dump Truck 6X4 New patterned style cargo box


Description:

Tipper Truck SINOTRUK HOWO Front Lifting 30 - 40tons LHD 6X4 for Construction

This type product , with features of reliable structure , high loading capacity which can load 30-40tons,strong power from 266HP to 420HP, reliable performance and wide acceplication.


This model can meet the requirements of severe environment like construction site and mining area.which can fullfiled you of short distance transportation of mining rock and soil as well as engineering construction.




Specifications:



SINOTRUK HOWO 6x4 LHD Heavy Tipper Dump Trucks 380HP
Model ZZ3257V384JB1
Drive Type 6×4
Engine
WP10.380E22    380HP( Euro II)
6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine
Displacement : 9.726L
Cabin H77L(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×VGD95 ( 9.5 Tons)
Driving Axle 2XMCX16ZG, 16Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

air assistance

Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3800+1350(mm)
Overall dimension 8550×2496×3450(mm)
Cargo body 5800×2300×1500(mm),Bottom:8mm, Side:6mm
The curb weight 12100(Kg)
Gross weight 25000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.


Applications:


working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.


Competitive Advantage:
1. competive price, cost-effective
2. with all kinds of truck model, which can fulfil your requirements
3. all kinds of cargo body structure can be designed and produced according to your request,make it have light curb weight , high rigidity , high loading capacity
4. using the high strength steel, make it has a long service life
5. The optimized hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
6. excellant apperance of cabin, safety, reliable
7. quick and efficient spare parts supply bring you more convenient
8. you can choose cargo body with Front lifting type or Middle lifting type which you prefered
9. The hydraulic sytem using HYVA brand or Domestic famouse brand
10. low fuel consumption
11. strong enough engine
12. fast delivery time, we can arange production according to your needs exactly and quickly
13. professional import and export dealing precedure, make customs clearance more high efficiencySINOTRUK HOHAN HOWO 380HP LHD Tipper Dump Truck 6X4 Patterned Style Cargo Box 0
