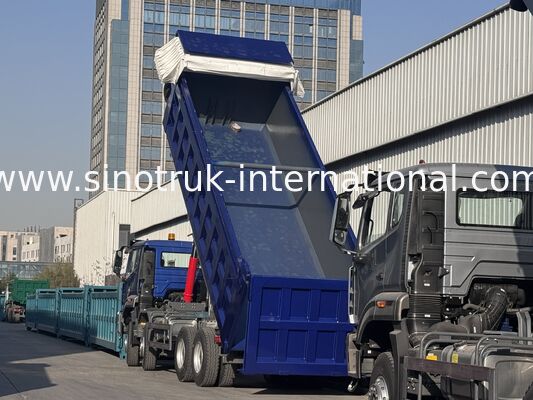

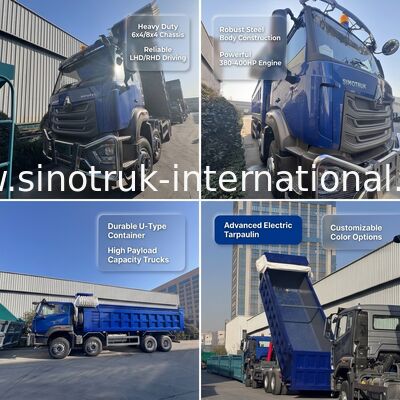

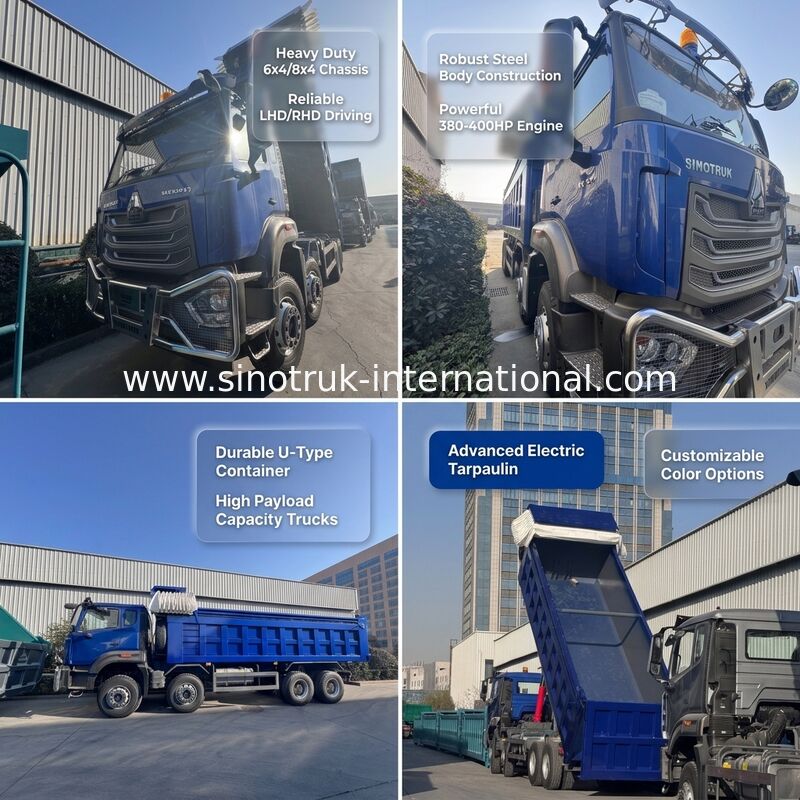

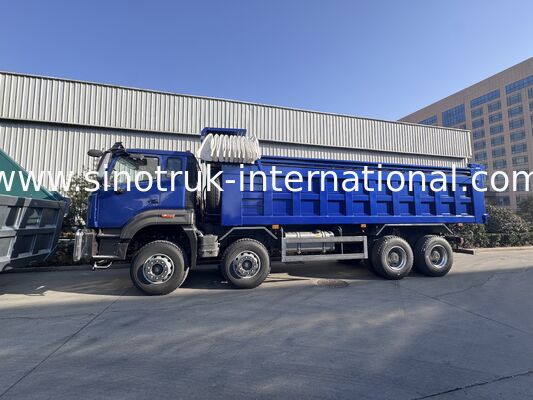

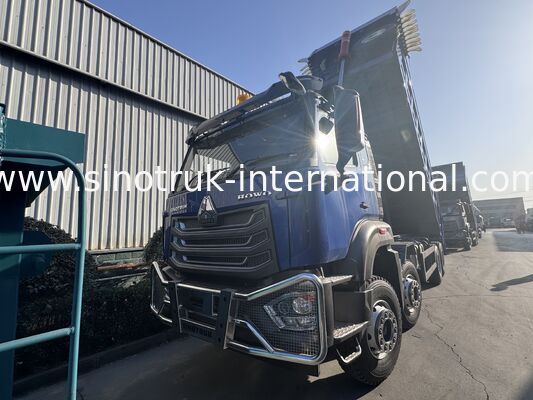

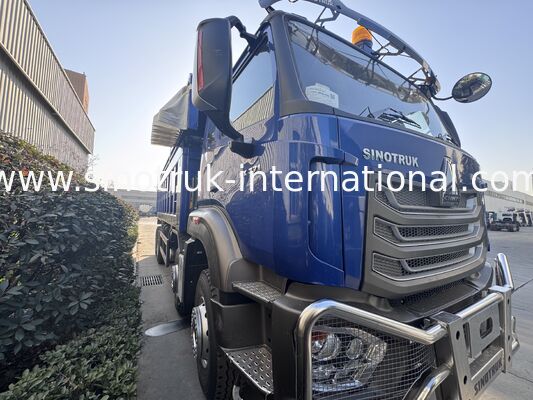

Sinotruk HOHAN New HOWO 8X4 Dump Truck 371hp H77L Cabin Blue With electric tarpaulin RHD

Sinotruk HOHAN New HOWO 8X4 Dump Truck 371hp H77L Cabin Blue With electric tarpaulin RHD

Product Details:
Place of Origin: China
Brand Name: SINOTRUK
Certification: ISO/3C/BV/IFA/SGS
Model Number: ZZ3317V386JB1R
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: Negotiation
Packaging Details: Waxing in Bulk ship, Roro ship, Container
Delivery Time: 10-30 working days
Supply Ability: 3,000 units per month
Contact Now
Detailed Product Description
Model: ZZ3317V386JB1R Engine: WD615.47 371HP
Drive Type: Drive Type Steering: B****
Front Axle: 2×VGD95 Driving Axle: 2XHC16
Highlight:

Sinotruk HOWO 8X4 dump truck

,

HOWO dump truck with electric tarpaulin

,

371hp tipper dump truck RHD

Sinotruk HOHAN New HOWO 8X4 Dump Truck 371hp H77L CabinBlue With electric tarpaulin


Description:


HOWO dump trucks, also known as dump trucks or dump trucks, are used to transport construction waste (such as sand, gravel, or demolition waste) as well as coal. A typical HOWO dump truck is equipped with an open-box bed which is hinged at the rear and equipped with hydraulic sliders to lift the front so that the bed material at the delivery site is deposited (dumped) on the ground behind the truck.




Specifications:


Sinotruk HOWO 8X4 Dump Truck 380hp 12 Wheels White H77L
Model ZZ3317V386JB1R
Drive Type 8×4
Engine
WD615.47  371HP( Euro III)
6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine
Displacement : 9.726L
Cabin H77L
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 2×VGD95 ( 9.5 Tons)
Driving Axle 2XHC16, 16Tons
Steering B****
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

air assistance

Rim/ Tire 315/80R22.5,12.00R20 18PR,11.00R20
Wheel base 3825+1350(mm)
Overall dimension 10965×2600×3450(mm)
Cargo body 7800×2300×1500(mm),Bottom:8mm, Side:6mm
The curb weight 15200(Kg)
Gross weight 31000 kg
Max. speed 80km/h
Color White, red, green, golden and so on.


Applications:


Applicable to mining, construction, wharf, transport soil, sand, stone and other industries.


Competitive Advantage:


1) Various types of trucks to meet your needs
2) The world's top technology products are adopted for key components
3) Based on strong technical support and top technology, make the truck higher quality and more reliable

4) Optimized cargo structure, light weight, high rigidity, large load capacity
5) Adopt high strength steel, long service life
6) The optimized sealing structure has better sealing effect.
7) Intelligent hydraulic control system, avoid misoperation, with higher safety and operation efficiency.
8) A variety of box structure and equipment selection
9) Low fuel consumption
10) The engine is strong enough

11) Competitive price, cost-effective
12) Fast and efficient spare parts supply, bring you more convenience
13) Fast delivery time, we can accurately and quickly arrange production according to your needs

14) Professional import and export transaction procedures make customs clearance more efficient

Sinotruk HOHAN New HOWO 8X4 Dump Truck 371hp H77L Cabin  Blue With electric tarpaulin RHD 0Sinotruk HOHAN New HOWO 8X4 Dump Truck 371hp H77L Cabin  Blue With electric tarpaulin RHD 1
