Name: SITRAK 10 Wheels Tipper Dump Truck with Euro 3 Emission and 430 HP Engine
Brand: SINOTRUK INTERNATIONAL CO., LTD.
SKU: ZZ3256V364MC1
Price: 58,000.00 USD
Availability: InStock

Home Products Tipper Dump Truck

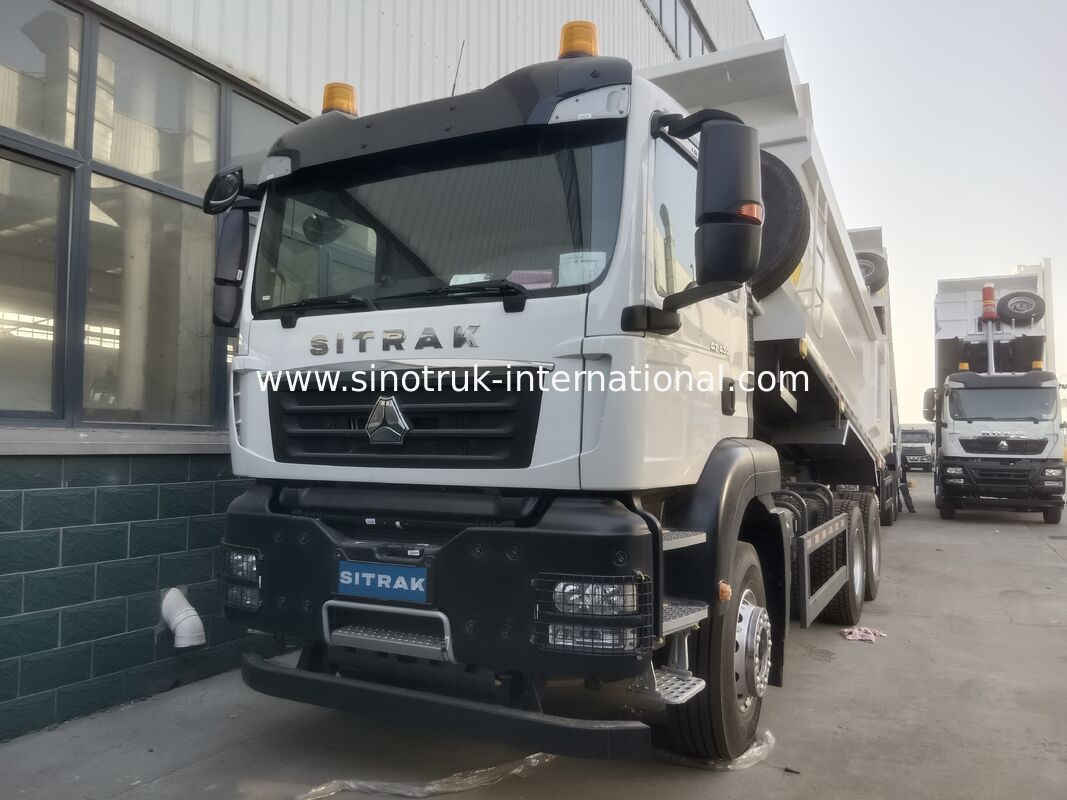

SITRAK 10 Wheels Tipper Dump Truck with Euro 3 Emission and 430 HP Engine

Product Details:

Place of Origin:	China
Brand Name:	SINOTRUK SITRAK
Certification:	ISO/3C/BV/IFA/SGS
Model Number:	ZZ3256V364MC1

Payment & Shipping Terms:

Minimum Order Quantity:	1Unit
Price:	Negotiation
Packaging Details:	Waxing in Bulk ship, Roro ship, Container
Delivery Time:	45 working days
Supply Ability:	3,000 units per month

Contact Now

Detailed Product Description

Drive Type:	LHD 6×4	Emission Standard:	Euro 3
Wheel:	10 Wheels	Cargo Body:	580023001500mm
Wheel Base:	3600+1350(mm)	Brand:	SINOTUK SITRAK
Highlight:	10 Wheels Tipper Dump Truck , Euro 3 Emission Dump Truck , 430 HP Engine SITRAK Tipper Truck

SITRAK 10 Wheels Tipper Dump Truck With 10 Forwards & 2 Reverses Transmission White

Comprehensive Euro3 engine equipped tipper dump truck designed for heavy-duty applications with multiple drive type configurations available.

Available Configurations

Driving types: 4×2, 4×4, 6×2, 6×6, 6×4, 8×4 and more
Power range: MC11.43-30, MC11.39-30, MC11.40-50

Engine Specifications

Engine brand: SINO BRAND
Engine model: MC.11.43-30, Euro Ⅲ
Engine type: 6-cylinder in line, 4-stroke, water-cooled, turbocharged, air-to-air intercooled, direct injection
Displacement: 10.518 liters
Max. output: 430 hp @ 2200 rpm
Max torque: 1460 NM @ 1100-1600 rpm

Technical Specifications

Model	ZZ3256V364MC1
Drive Type	6×4
Cabin	G7 cab (with one sleeper, air-conditioner and new-style seat)
Engine	MC.11.43-30, Euro Ⅲ
Front Axle	9.5 Tons
Driving Axle	16 Tons
Steering	ZF8118 hydraulic steering with power assistance
Clutch	Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance
Rim/Tire	11.00R20, 12.00R20, 12.00R24 Radial tire
Wheel base	3600+1350 (mm)
Overall dimension	8575×2496×3450 (mm)

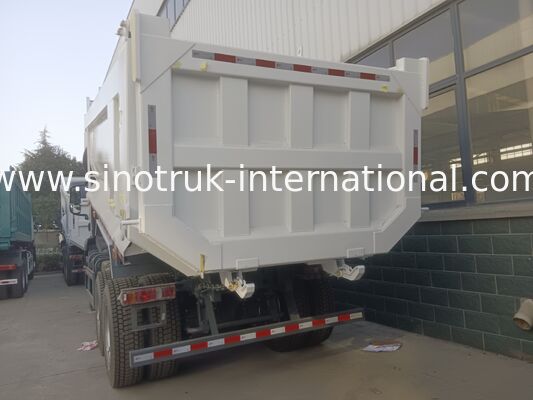

Cargo body	5800×2300×1500 (mm), Bottom: 8mm, Side: 6mm
Curb weight	12200 (Kg)
Gross weight	25000 kg
Max. speed	75 km/h
Color	White, red, green, golden and more

Key Advantages

Lowest Gravity Center: 150-350mm lower than other domestic dump trucks, providing superior stability
Lightest Self-Weight: Most lightweight design among domestic dump trucks with comparable structures

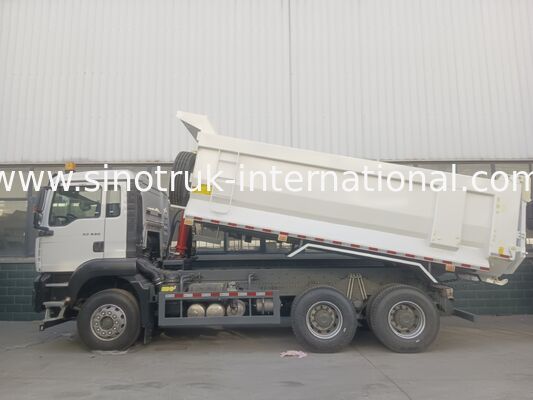

Reformative Body Structure: Multilateral U-structure with high rigidity and wider rear hinge (100-350mm wider) for improved lifting stability
