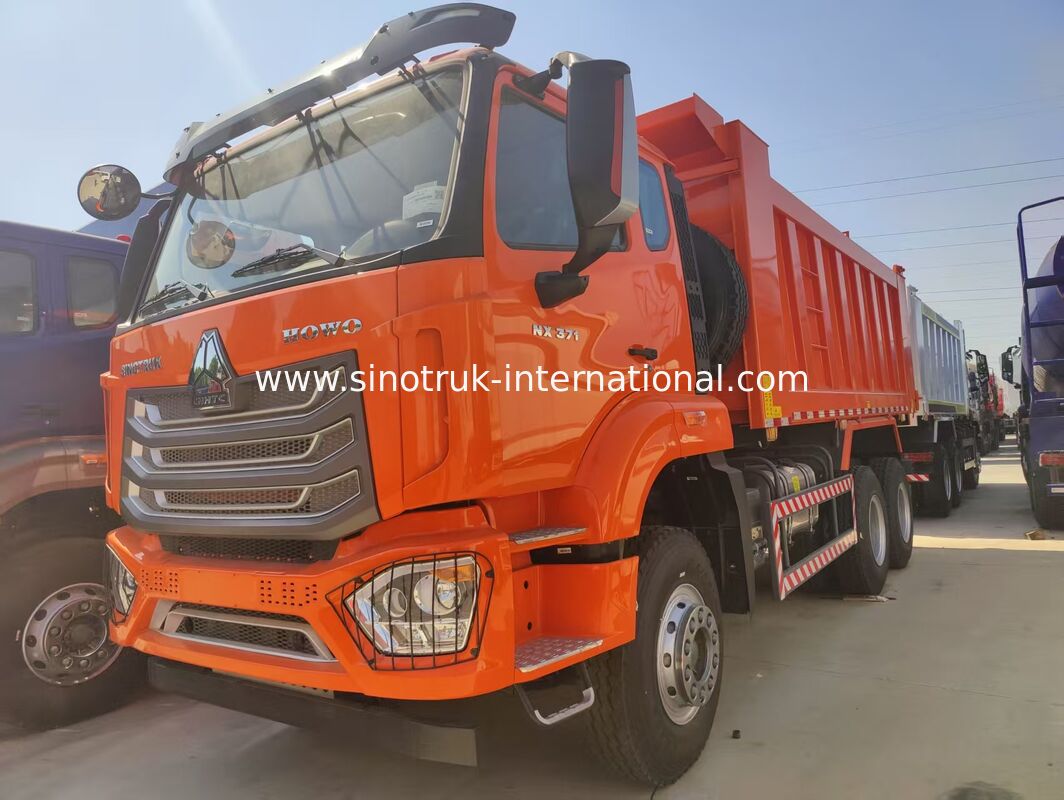

SINOTRUK HOWO-NX 6X4 Tipper Dump Truck with 371HP Engine for 30-40 Ton Load Capacity and High-Efficiency Transportation

SINOTRUK HOWO-NX 6X4 Tipper Dump Truck with 371HP Engine for 30-40 Ton Load Capacity and High-Efficiency Transportation

  • SINOTRUK HOWO-NX 6X4 Tipper Dump Truck with 371HP Engine for 30-40 Ton Load Capacity and High-Efficiency Transportation
  • SINOTRUK HOWO-NX 6X4 Tipper Dump Truck with 371HP Engine for 30-40 Ton Load Capacity and High-Efficiency Transportation
  • SINOTRUK HOWO-NX 6X4 Tipper Dump Truck with 371HP Engine for 30-40 Ton Load Capacity and High-Efficiency Transportation
  • SINOTRUK HOWO-NX 6X4 Tipper Dump Truck with 371HP Engine for 30-40 Ton Load Capacity and High-Efficiency Transportation
  • SINOTRUK HOWO-NX 6X4 Tipper Dump Truck with 371HP Engine for 30-40 Ton Load Capacity and High-Efficiency Transportation
SINOTRUK HOWO-NX 6X4 Tipper Dump Truck with 371HP Engine for 30-40 Ton Load Capacity and High-Efficiency Transportation
Product Details:
Place of Origin: CHINA
Brand Name: SINOTRUK
Certification: ISO/3C/BV/IFA/SGS
Model Number: ZZ3257V384JB1
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Waxing in Bulk ship, Roro ship
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 3,000 units per month
Contact Now
Detailed Product Description
Horsepower: 371 HP Engine: WD615.47 ,371 Hp
Model: ZZ3257V384JB1 Lifting Type: Front Lifting Type
Cargo Box: 5600*2300*1500mm Products Name: SINOTRUK HOWO-NX 6X4 Tipper Dump Truck
Drive Mode: 6*4

SINOTRUK HOWO-NX 6X4 Tipper Dump Truck
Product Overview

SINOTRUK NX Tipper Dump Truck, 371HP. The NX 371HP 6*4 dump truck is engineered for high-efficiency transportation in demanding heavy-duty conditions. With exceptional load-bearing capacity, reliable core configurations, and versatile adaptability, it serves as the preferred solution for mining operations, infrastructure construction, and building materials transportation. Capable of handling 30-40 ton loads, this truck delivers stable and efficient performance across complex road conditions.

Core Power Assembly

Powered by the proven WD615.47 diesel engine, this vehicle delivers a rated power of 371HP.

  • In-line 6-cylinder, water-cooled 4-stroke design with turbocharging and intercooling
  • Precision fuel injection system with minimum full-load fuel consumption ≤193g/kW·h
  • Durable construction with high parts commonality for simplified maintenance
  • Significantly reduced operating costs through optimized fuel economy

The transmission and load-bearing systems work in perfect harmony. The MCX16ZG drive axle features a high-strength integrated cast axle housing with exceptional load-bearing capacity and torsional resistance, easily handling heavy loads and complex working conditions.

Front Axle VGD95 steering axle with 9.5 ton rated load capacity
Braking System Drum brakes with rapid response capability
Steering Precisely adjusted kingpin inclination and wheel camber angles
Chassis and Cargo Box Design

The chassis employs a 38-wheelbase design with an overall reinforced structure. The high-strength steel frame provides outstanding torsional and bending resistance, effectively distributing heavy load pressure and withstanding impacts on rough terrain to extend vehicle service life.

Cargo Box Dimensions 5800*2300*1500mm
Capacity Efficient loading of bulk materials including sand, gravel, ore, and building materials
Application Scenarios

With its 6*4 drive configuration and 30-40 ton load capacity, this truck excels in medium and short-distance heavy-duty transportation applications:

  • Earth stripping and ore transfer in large open-pit mines
  • Sand and earth transportation for infrastructure projects
  • Bulk cargo handling in building materials markets
  • Stable performance on unhardened mining roads and complex work surfaces

This versatile dump truck enhances transportation efficiency and delivers higher operational benefits across diverse industrial applications.
