SINOTRUK INTERNATIONAL CO., LTD.
Sales & Support:
 |
| Place of Origin: | China |
| Brand Name: | SINOTRUK Yellow River |
| Certification: | ISO/3C/BV/IFA/SGS |
| Model Number: | ZZ590HV384KB3B |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Nude or Waxing in Roro or bulk ship |
| Delivery Time: | 25 working days after received your advance payment |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 3,000units per month |
| Product Name: | Tipper Dump Truck | Model: | ZZ590HV384KB3B |
|---|---|---|---|
| Drive Type: | LHD 6x4 | Steering: | ZF8118 |
| Engine: | WP12.430E201, 430HP | Emission Standard: | Euro2 |
| Highlight: | 6X4 LHD Tipper Dump Truck, Mining Tipper Dump Truck, 371HP Tipper Dump Truck | ||
| Highlight: | 6x4 mining tipper 90 ton,430HP mining dump truck,heavy duty tipper lHD |
||
Specification:

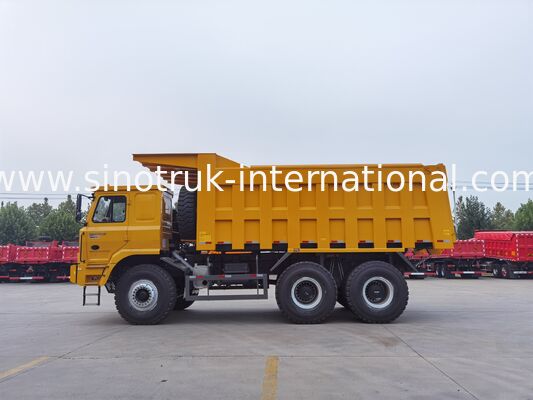

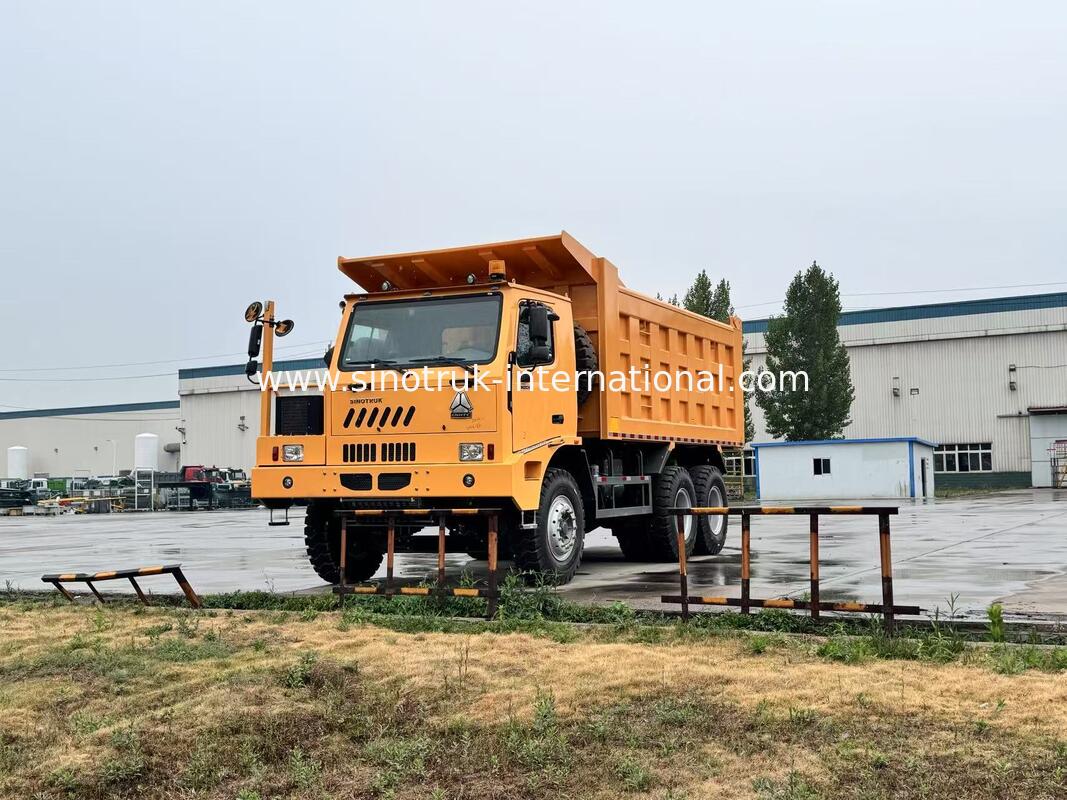

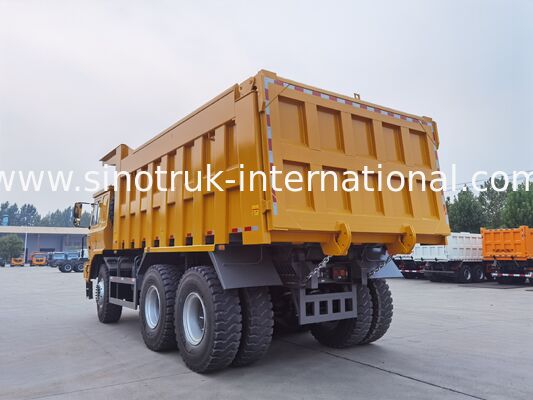

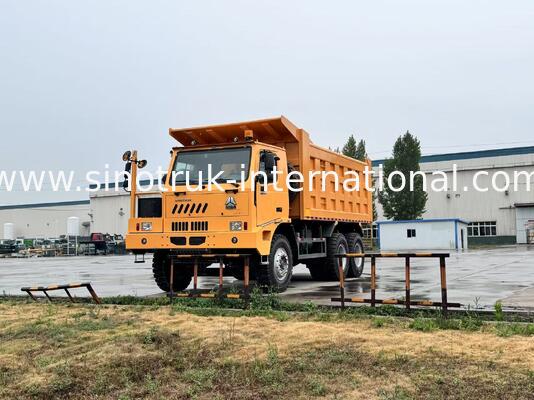

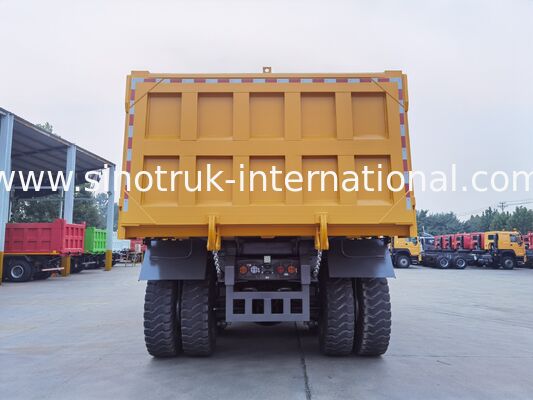

| Sinotruk Howo 6×4 Mining Tipper 90Ton 430HP LHD | ||||
| Model | ZZ5907V414L | |||
| Drive Type | 6×4 | |||
| Engine |
|
|||
| Cabin | HW7D unilateral high strength skeleton cab(with one sleeper, air-conditioner and new-style seat) | |||
| Transmission | HW21712(12 forwards & 2 reverses) | |||
| Front Axle | VGK20,20T | |||
| Driving Axle | MCK45ZG,2X45T | |||
| Steering | ZF8118 hydraulic steering with power assistance. | |||
| Speed ratio | 10.47 | |||
| Rim/ Tire | 14.00-25,14.00R25,Radial tire | |||
| Wheel base | 3800+1500(mm) | |||
| Overall dimension | 8700×3300×4100(mm) | |||
| Cargo body | 5800×3200×1800(mm),Bottom:16mm, Side:12mm | |||
| The curb weight | 29400(Kg) | |||
| Oil tank | 500L | |||
| Max. speed | 40km/h | |||
| Color | White, red, green, golden and so on. | |||
Applications:
HOWO 90-ton Mining Dump Truck is a custom model researched and developed by our dedicated heavy engineering technical team. Focused on short-distance transport operations under extremely tough site conditions, this dump truck fits a wide range of application scenarios such as open-pit coal mines, steel factories, hydropower engineering projects and docks with rugged, inferior road conditions. Built to target professional mining user groups, it can create prominent economic returns and comprehensive social benefits for every operator.
Competitive Advantage:
1.Competitive pricing with outstanding cost performance
2. Low fuel consumption to reduce operating costs
3. Powerful heavy-duty engine with sufficient power output
4. Complete range of truck models to meet all your demands
5. Supported by strong technical strength and top-tier technology, our trucks feature premium quality and great reliability
6. Core key components adopt world-class premium parts
7. Custom cargo bodies can be tailor-made as you require, with light tare weight, high rigidity and large load capacity
8. Built with high-strength steel for long service life, safe operation and high transport efficiency
9. Short delivery lead time; we arrange customized production quickly per your requirements
10. Professional import & export procedures for highly efficient customs clearance
