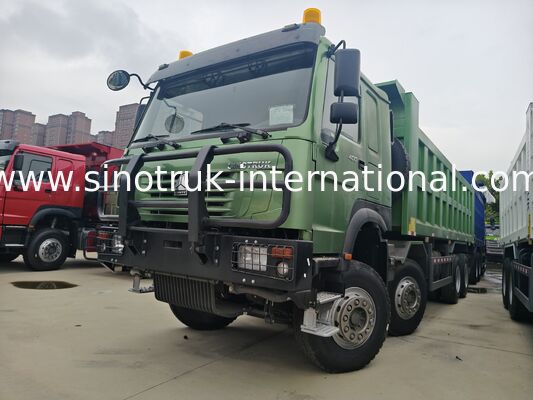

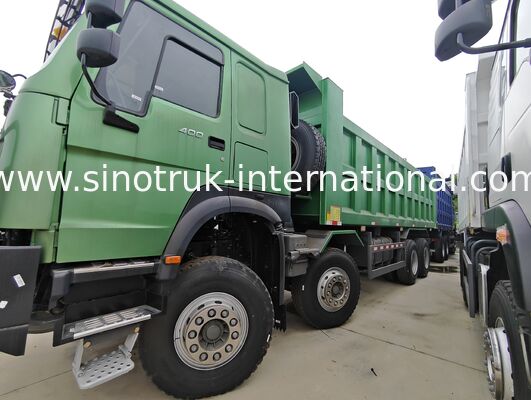

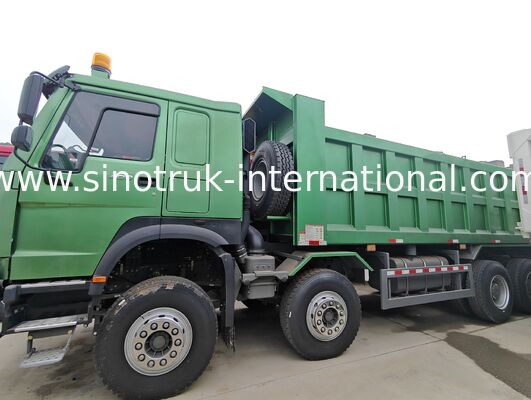

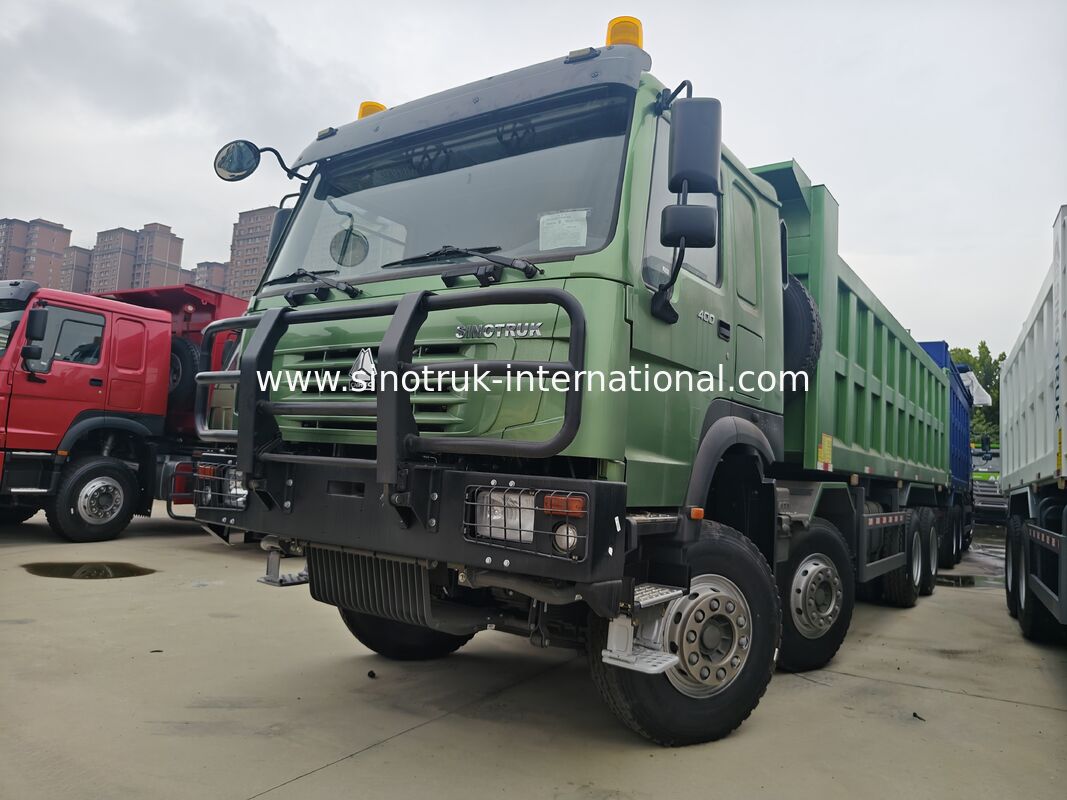

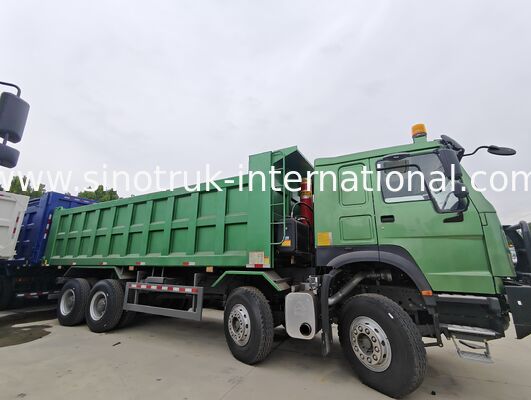

Sinotruk HOWO 8×4 Dump Truck With 400HP 12 Wheels For Construction & Mining Projects

Sinotruk HOWO 8×4 Dump Truck With 400HP 12 Wheels For Construction & Mining Projects

Product Details:
Place of Origin: China
Brand Name: SINOTRUK
Certification: ISO/3C/BV/IFA/SGS
Model Number: ZZ1317V4667B1
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: Negotiation
Packaging Details: Waxing in Bulk ship, Roro ship, Container
Delivery Time: 10-30 working days
Payment Terms: T/T,L/C,D/A
Supply Ability: 3,000 units per month
Contact Now
Detailed Product Description
Model: ZZ1317V4667B1 Engine: WP12.400E201 , 400 HP
Steering: BOSCH Drive Type: LHD
Highlight:

Sinotruk HOWO 8×4 dump truck

,

400HP tipper dump truck

,

12 wheels construction dump truck

Sinotruk HOWO 8×4 Dump Truck With 400HP 12 Wheels  For Construction & Mining Projects


Description:


SINOTRUK HOWO cargo trucks are purpose‑built for commercial freight transportation. They fall into two major categories: general‑purpose cargo trucks and multi‑purpose cargo trucks.

General‑purpose models cover van‑body and flat‑bed variants. Multi‑purpose cargo trucks are engineered for cargo hauling, equipped with folding or fixed seats behind the driver cabin, allowing accommodation for more than three passengers.

Available drive configurations include 4X2, 6X2, 6X4, 8X4, etc. Engine power options range from 266 HP to 420 HP. Widely adopted across the logistics sector, these trucks deliver reliable performance for diverse freight tasks.

As a professional Chinese heavy‑duty truck supplier, we supply a complete product portfolio, including compressed garbage trucks, tractor units, water tank trucks, low‑bed semi‑trailers and other special‑purpose vehicles.


Specifications:


12 Wheels Sinotruk HOWO 8X4 Cargo Truck 400hp Chassis Ghost Face cab
Model ZZ1317V4667B1
Drive Type 8×4
Engine
WP12.400E201,400 HP( Euro II)
6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine
Displacement : 11.596L
Cabin HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 2×VGD95 ( 9.5 Tons)
Driving Axle 2XHC16, 16Tons
Steering BOSCH
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

air assistance

Rim/ Tire 12.00R20 Radial tire
Wheel base 4625+1350(mm)
Overall dimension 10945×2600×3450(mm)
Cargo body 7800×2300×1500(mm),Bottom:8mm, Side:6mm
The curb weight 12250(Kg)
Gross weight 25000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.


Applications:


SINOTRUK HOWO cargo trucks are purpose‑built for commercial freight transportation. They fall into two major categories: general‑purpose cargo trucks and multi‑purpose cargo trucks.

General‑purpose models cover van‑body and flat‑bed variants. Multi‑purpose cargo trucks are engineered for cargo hauling, equipped with folding or fixed seats behind the driver cabin, allowing accommodation for more than three passengers.

Available drive configurations include 4X2, 6X2, 6X4, 8X4, etc. Engine power options range from 266 HP to 420 HP. Widely adopted across the logistics sector, these trucks deliver reliable performance for diverse freight tasks.

As a professional Chinese heavy‑duty truck supplier, we supply a complete product portfolio, including compressed garbage trucks, tractor units, water tank trucks, low‑bed semi‑trailers and other special‑purpose vehicles.


Competitive Advantage:


High Safety

1.Four‑circuit independent braking system Equipped with four direct‑acting pneumatic brake circuits including front‑axle service brake, rear‑axle service brake, parking‑emergency brake and engine auxiliary brake, together with automatic brake‑shoe clearance adjustment. Matched with ABS anti‑lock braking system, the whole braking system delivers stable and dependable performance for enhanced driving safety.

2.Wide‑angle rear‑view mirror Premium wide‑angle rear‑view mirrors offer comprehensive all‑round visibility for drivers, effectively reducing blind‑spot risks and further safeguarding driving security.


Aesthetic Design

It comes with an integrated fashionable luxury bumper and high‑brightness elegant headlights.
The renewed soft‑trimmed cabin interior and instrument panel balance visual appeal and practicality. The detachable combined instrument cluster facilitates easy maintenance and repair work.

Electric window lifters and central remote door lock are also available for convenient operation.full‑bodied, smooth body lines optimized for aerodynamics. Lower wind resistance cuts drag coefficient and helps improve fuel efficiency.


Low Fuel consumption

Adopting new combustion principle and 2nd‑generation Bosch common‑rail fuel injection system, the engine delivers excellent fuel economy within a wide economic speed range of 1200‑1600 rpm, bringing high economic benefits.

For Euro‑Ⅱ road‑transport vehicles, the maximum mileage for the first factory‑specified oil change reaches 30,000 km. Less frequent maintenance greatly cuts down overall transportation costs.

Sinotruk HOWO 8×4 Dump Truck With 400HP 12 Wheels  For Construction & Mining Projects
