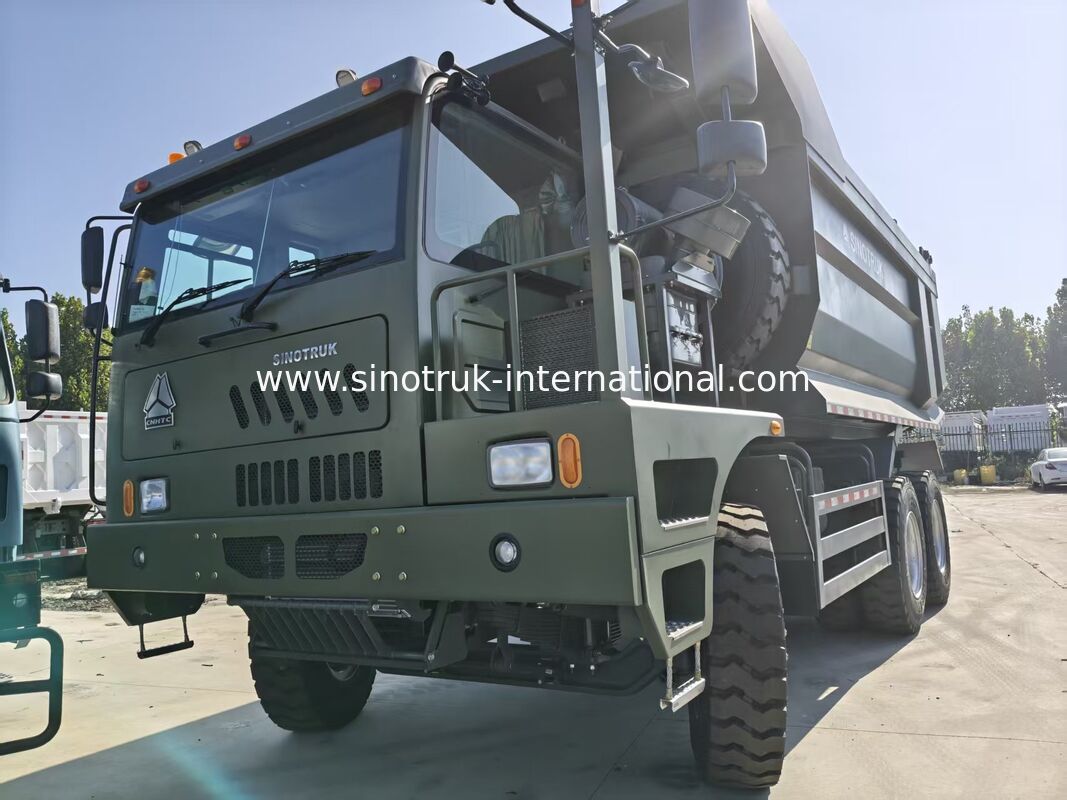

Name: SINOTRUK 90 Ton Mining Dump Truck
Brand: SINOTRUK INTERNATIONAL CO., LTD.
SKU: ZZ590HV384KB3R
Price: 58,000.00 USD
Availability: InStock

Home Products Tipper Dump Truck

SINOTRUK 90 Ton Mining Dump Truck

Product Details:

Place of Origin:	CHINA
Brand Name:	SINOTRUK
Certification:	ISO/3C/BV/IFA/SGS
Model Number:	ZZ590HV384KB3R

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	Negotiable
Packaging Details:	Waxing in Roro or bulk ship
Delivery Time:	within 45 working days
Payment Terms:	T/T
Supply Ability:	3000 units per month

Contact Now

Detailed Product Description

Engine:	WP12.430E201	Front Axle Load:	20,000 Kg
Rear Axle Load:	90,000 Kg	Cargo Box Internal Dimension:	5800×3200×1800 Mm,bottom 16 Mm, Side 12 Mm, Rear Board 14 Mm
Fuel Tank:	500 L	Transmission:	HW21712
Highlight:	90 ton mining dump truck , heavy duty tipper dump truck , SINOTRUK mining dump truck

The SINOTRUK 90-ton mining dump truck is a heavy-duty mining vehicle designed for open-pit mines, large earthwork projects, and harsh construction sites. It features strong power, super load capacity, excellent trafficability and high durability, ensuring high attendance and stable performance under continuous heavy-load working conditions.

1. Power & Transmission System

Equipped with a WP12.430E201 engine (430 HP), the vehicle provides sufficient power reserve and strong low-speed torque, adapting perfectly to heavy-load climbing and dusty mining environments. Matched with the HW21712 heavy-duty transmission, it delivers high transmission efficiency, stable gear shifting and reliable performance for long-hour continuous operation. A 500 L large-capacity fuel tank effectively reduces refueling frequency and improves overall construction efficiency.

2. Axle, Brake & Chassis System

It adopts professional heavy-duty axle configuration: front axle load: 20,000 Kg; dual rear axles, single rear axle load: 90,000 Kg, providing super strong bearing capacity for 90-ton level transportation. Front axle and drive axles adopt drum brakes, featuring large braking force, stable braking performance, good heat dissipation and easy maintenance, which greatly improves driving safety under frequent braking and long downhill mining conditions.

The suspension system uses high-strength leaf springs: 12 pieces at the front, 15 pieces at the rear. It effectively buffers violent impact from rough roads, reduces chassis fatigue and extends vehicle service life. Equipped with hydraulic power steering, the truck offers light, flexible and precise steering, lowering driver fatigue during high-intensity work.

3. Dimension & Trafficability

Overall dimension: 8700×3300×4100 mm with reasonable gravity center design. Excellent off-road performance:approach angle ≥31°, departure angle ≥40°, maximum climbing gradient: 35°. The vehicle can easily pass steep slopes, gullies and gravel roads, avoiding chassis scratching and ensuring outstanding passing ability in complex mining sites.

4. High-Strength Mining Cargo Box

Cargo box internal dimension: 5800×3200×1800 mm, with large loading volume and high working efficiency. Adopting thickened wear-resistant steel plate design: bottom 16 mm, side 12 mm, rear board 14 mm. Integral welding structure is anti-impact, anti-extrusion and anti-deformation, effectively resisting abrasion during ore and earth loading and unloading, ensuring long-term durability and low maintenance cost.

5. Product Advantages

This 90-ton mining dump truck integrates strong power, super load capacity, reliable braking and excellent trafficability. It is fully optimized for harsh mining working conditions with low failure rate and high operational efficiency, widely applicable for open-pit mining, earthwork transportation and large infrastructure projects.
